REALITY H AS350 B3 IDENTIFICATION
-
System: AS350 B3 Simulator - C56 266 636
-
Aircraft Module AS350 B3 (AM AS350) Sub-system: Software - C56 266 637, IT configuration - C56 266 471, Cockpit - C56 266 620
-
Docking Station Reality H (DS) Sub-system: Dome - C46 970 840, Reality H IT configuration - C56 268 058, Hexaline Motion - C56 268 379
THALES REALITY H FULL FLIGHT SIMULATOR MAIN FEATURES
-
Easy set-up, implementation and maintenance
-
Innovative Roll-on/Roll-off technology for easy helicopter cockpits swapping in the same simulator docking station
-

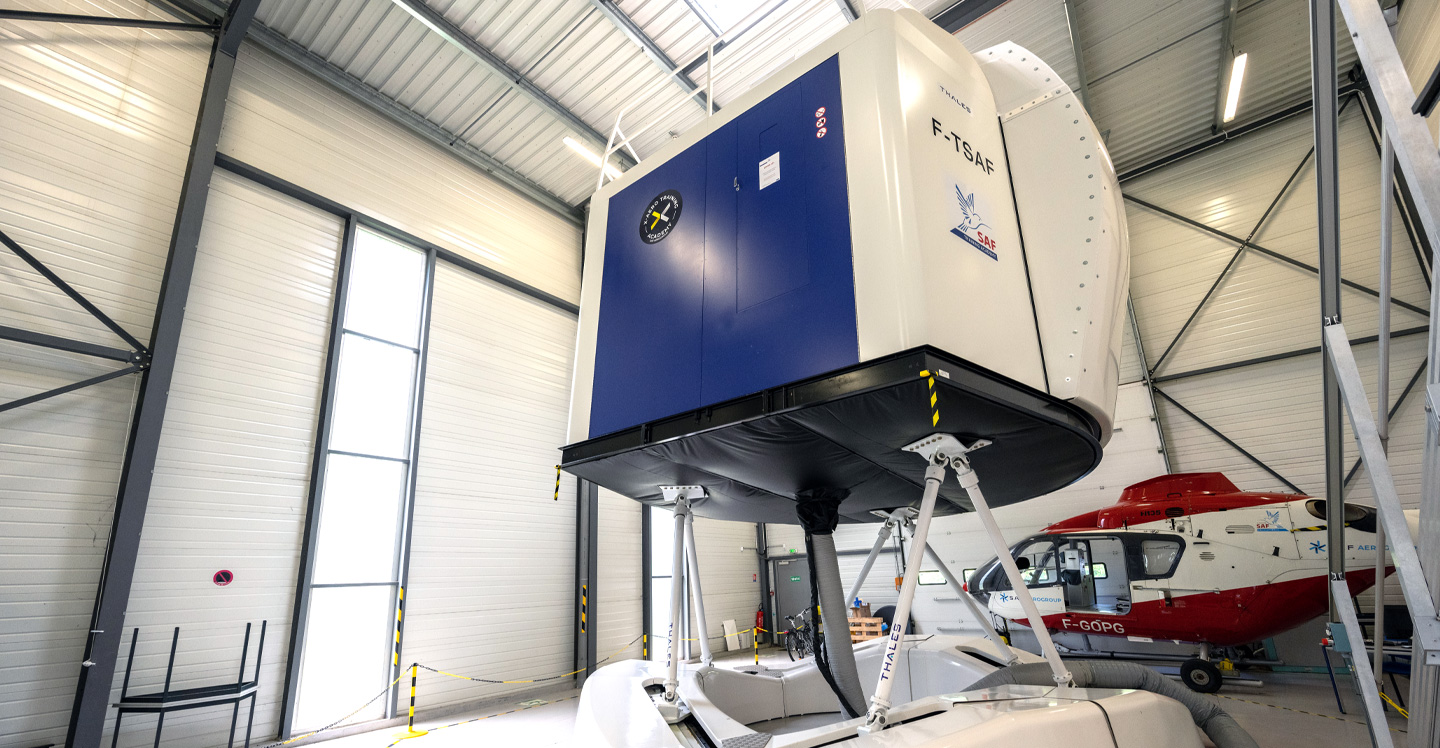

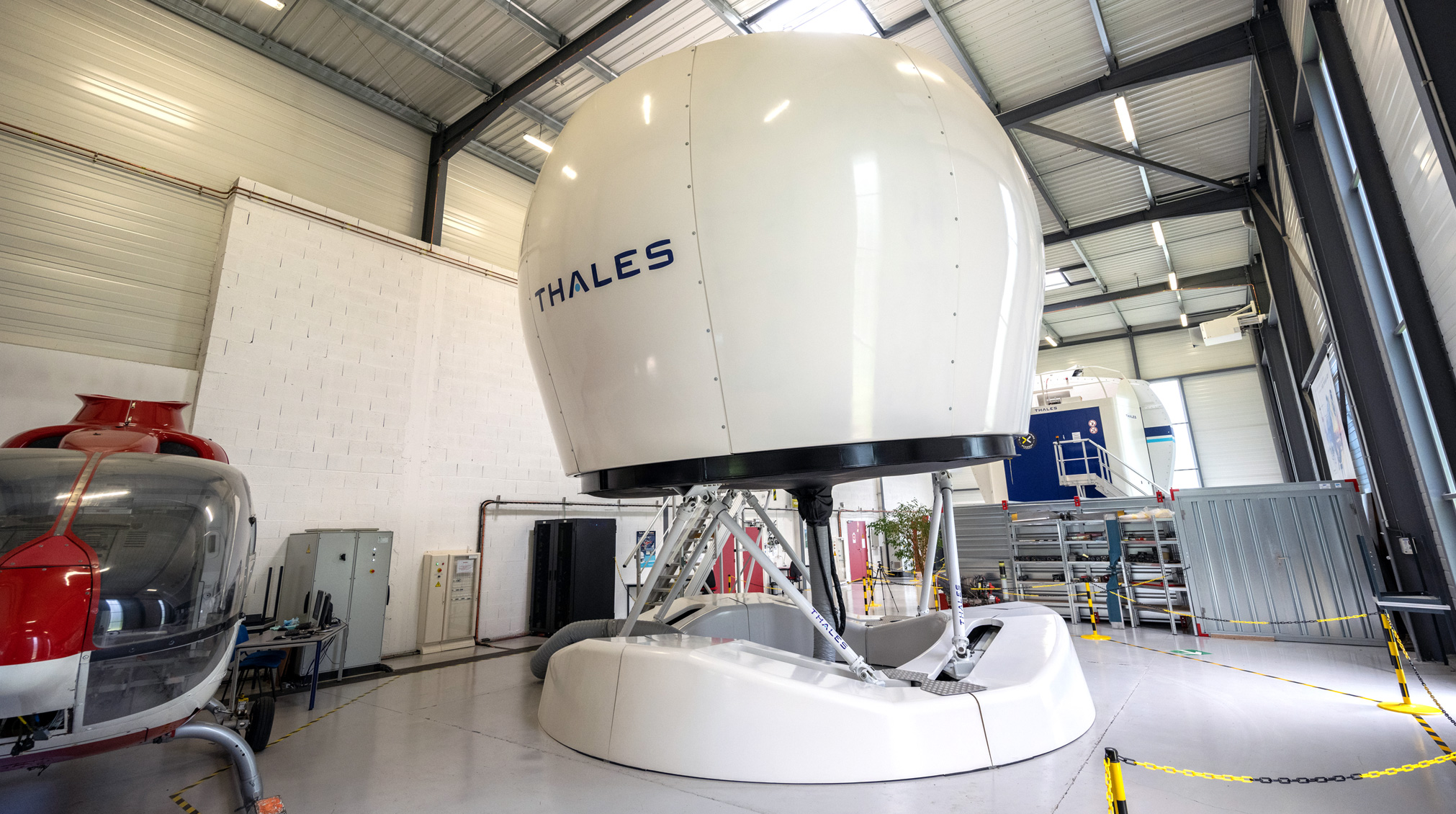

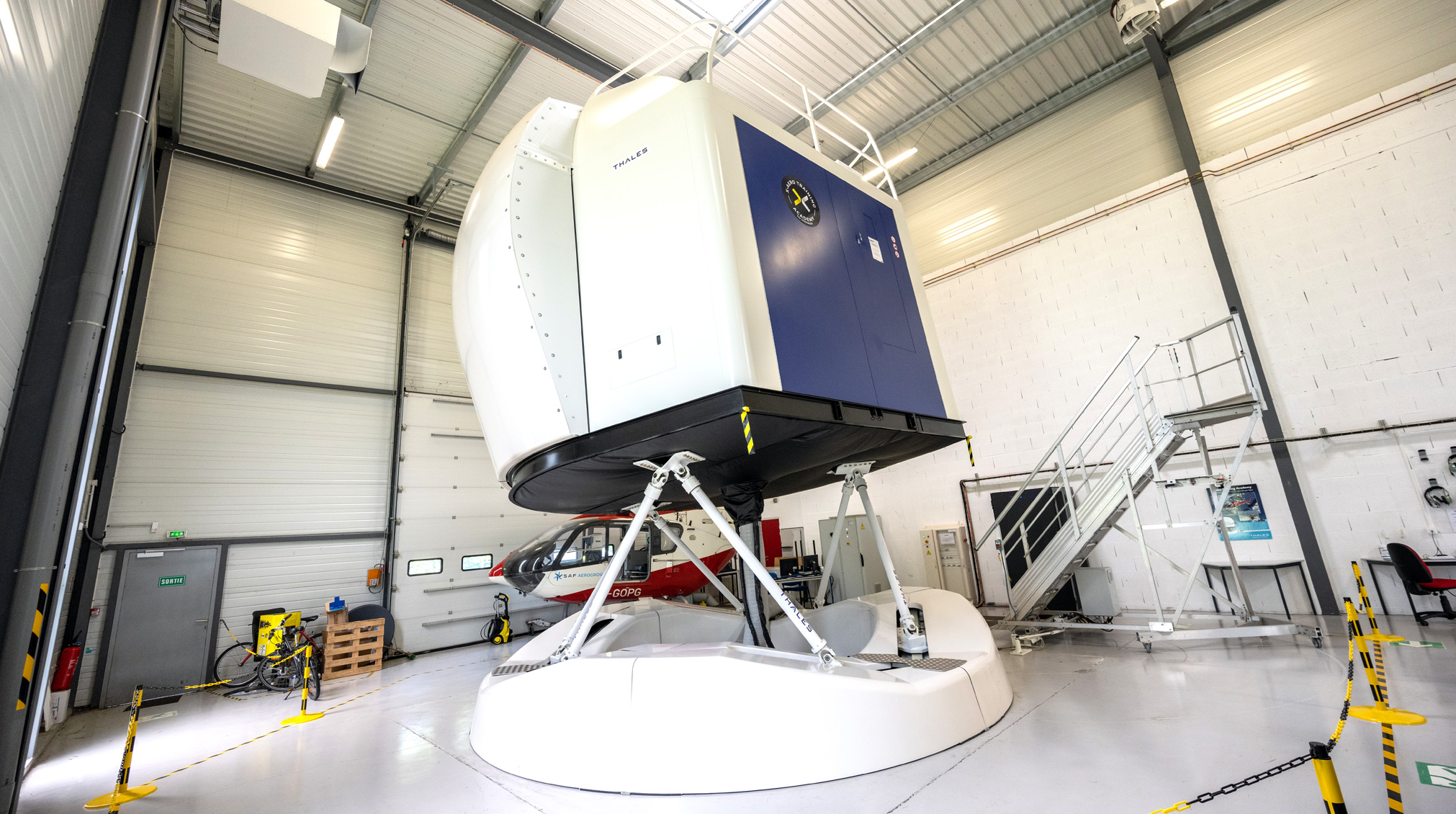

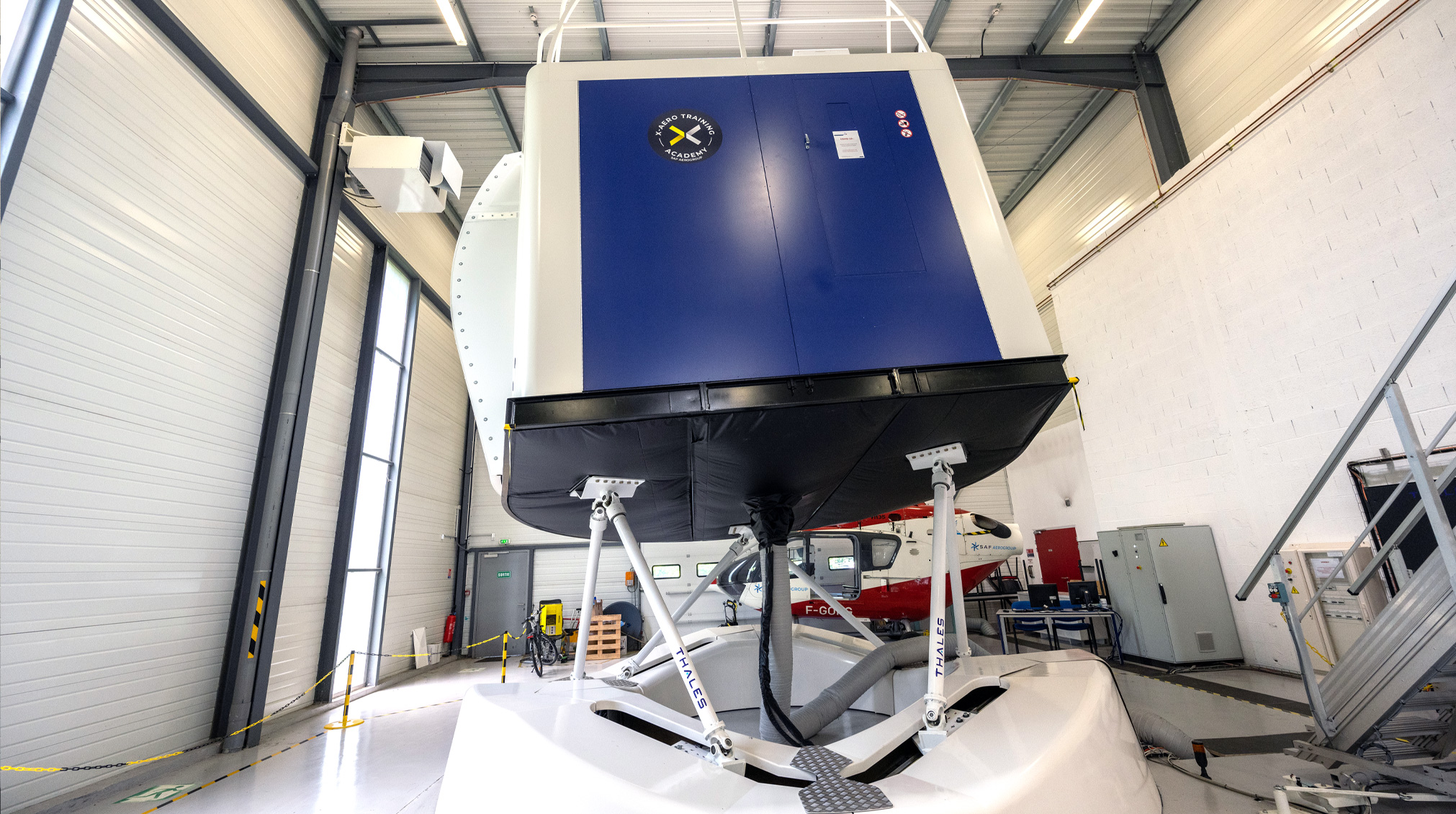

HexalineTM motion system: six-axis electrically operated motion system with a unique level of flexibility for unmatched pilot perception
-

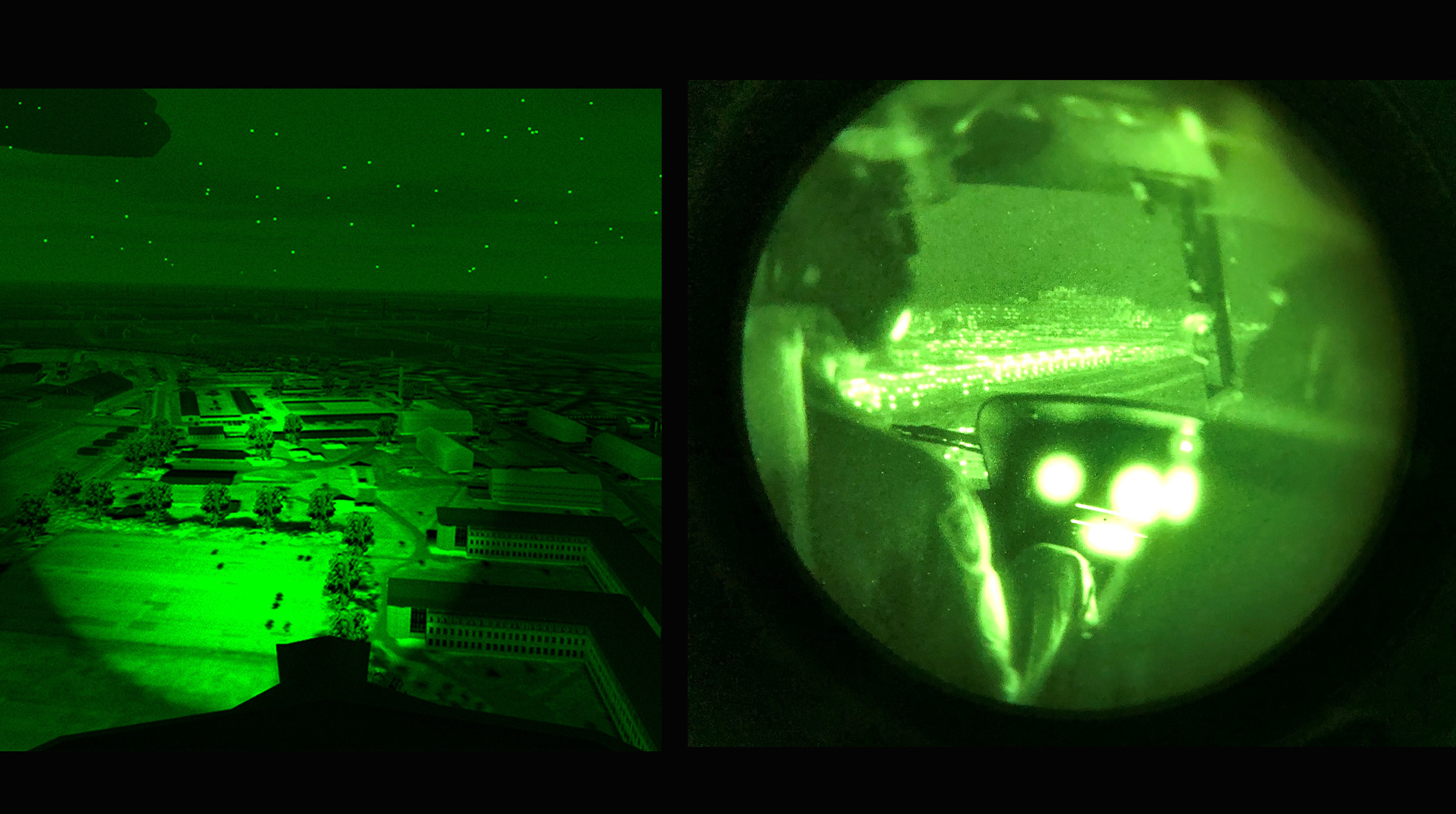

ThalesViewTM image generator with high resolution geospecific imagery
-

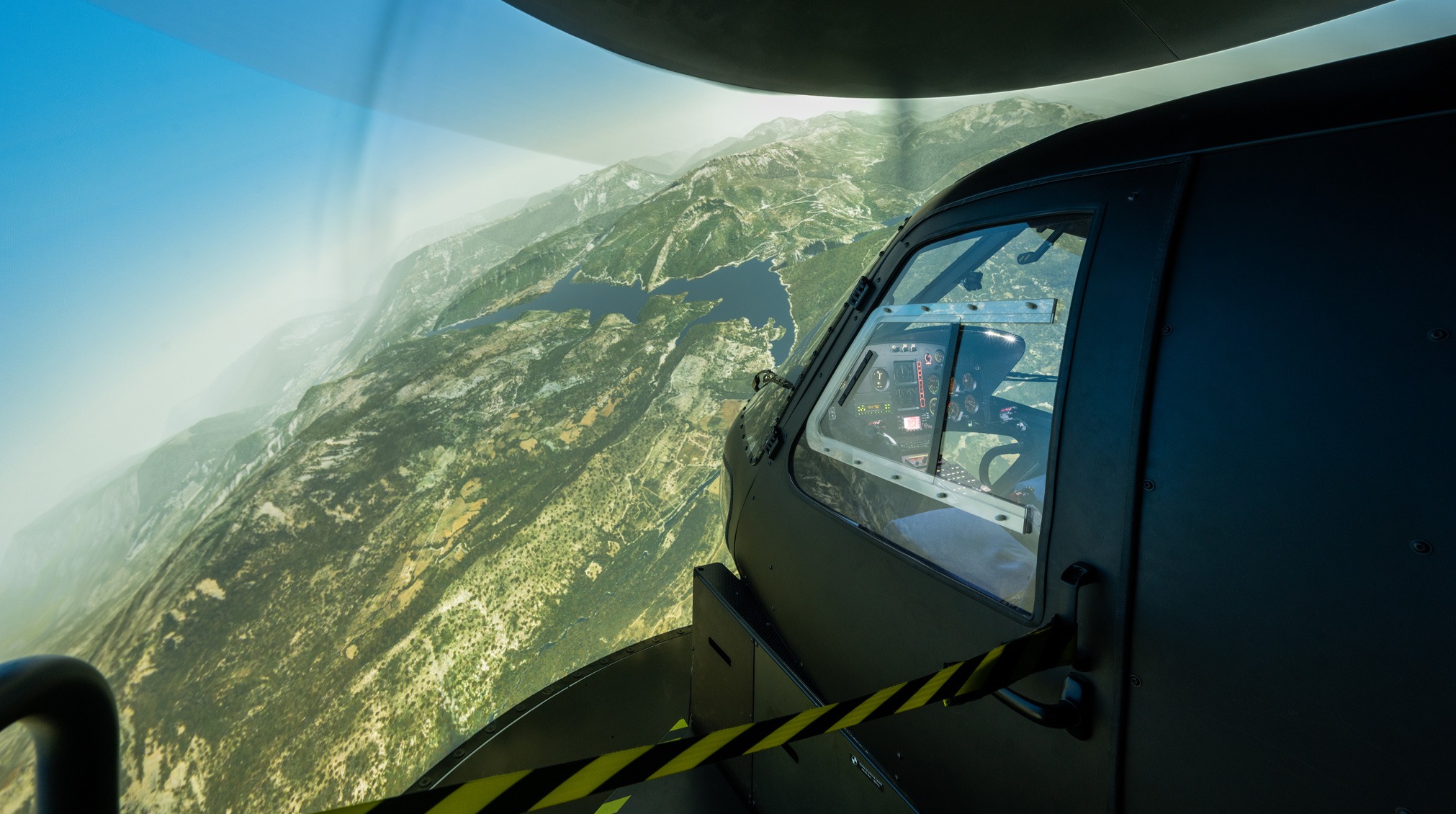

Direct projection visual system with a wide 210° x 70° field of view
-

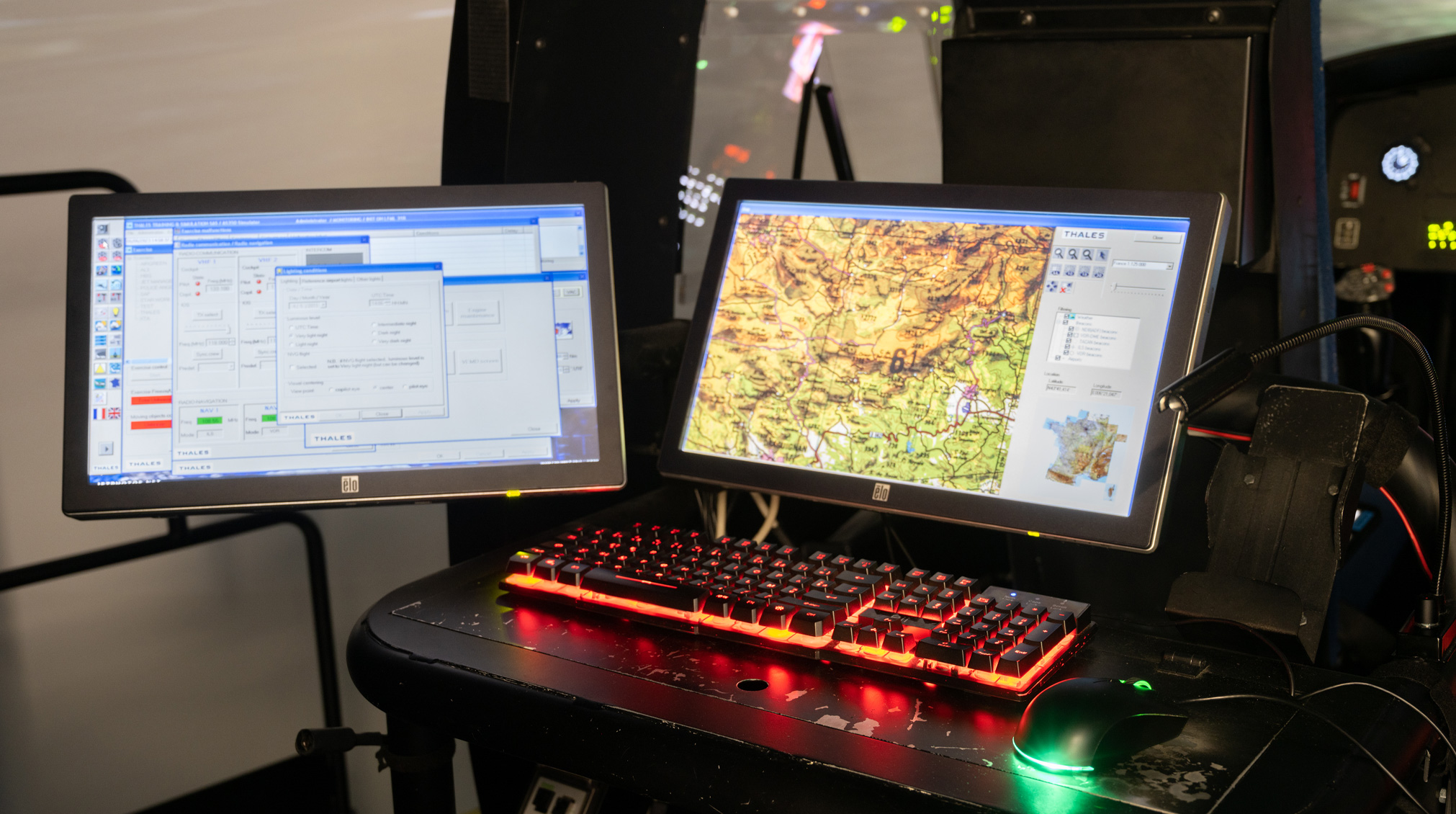

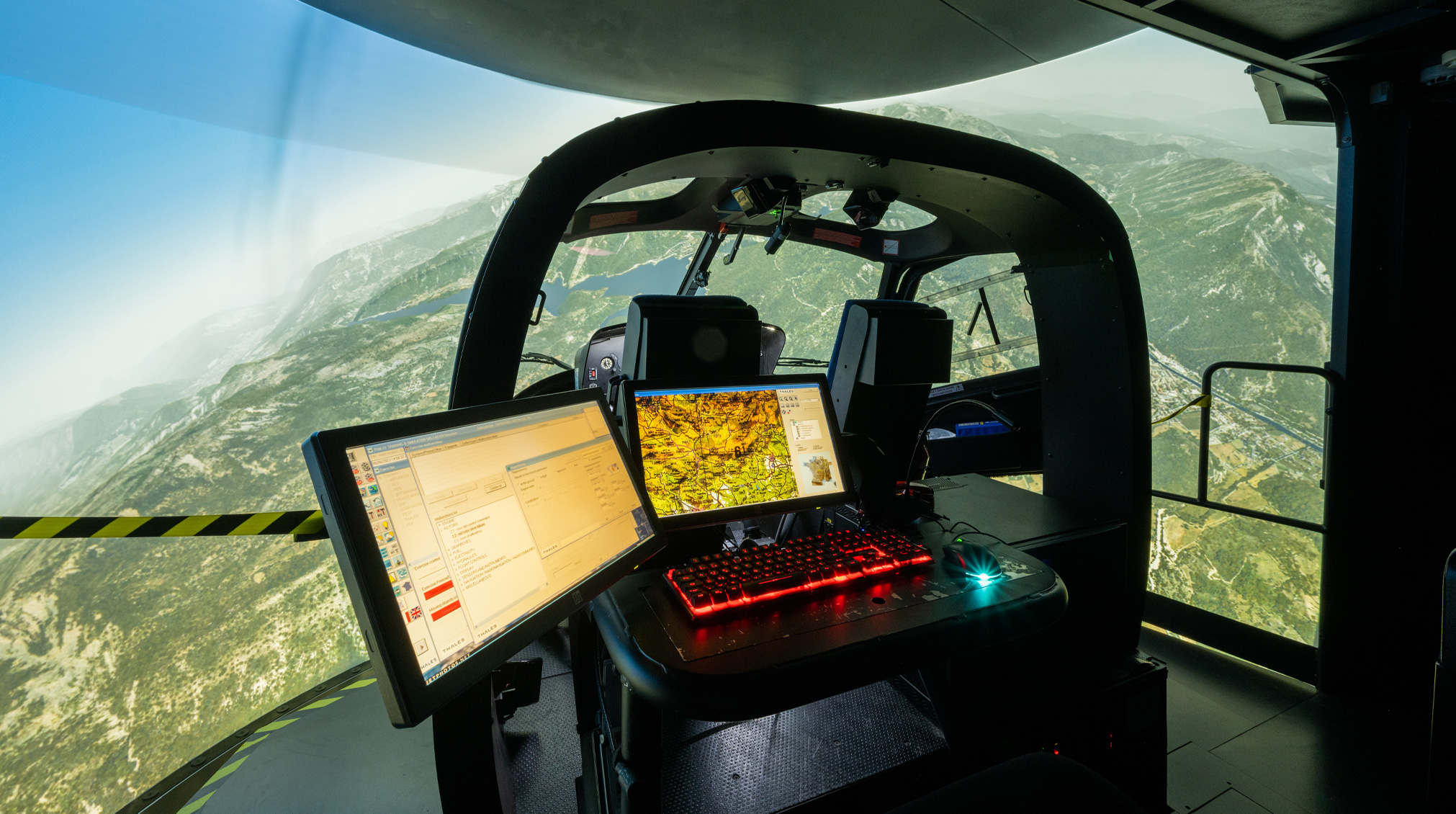

Instructor station module with forward-facing view of the crew undergoing training
-
Instrument panel and flight controls support the configuration of the helicopter using realistically simulated instruments or graphical displays and simulation models derived from actual helicopter data
TRAINING CAPABILITIES
-
Ab initio training
-
Licensing
-
Type Rating
-
Conversion to type
-
Recurrent Training
-
AS 350 B3 helicopter systems training Instrument Rating
-
Line Oriented Flight Training (LOFT)
-
Mission training (off-shore approach, accident scenes, Hospital helipad)

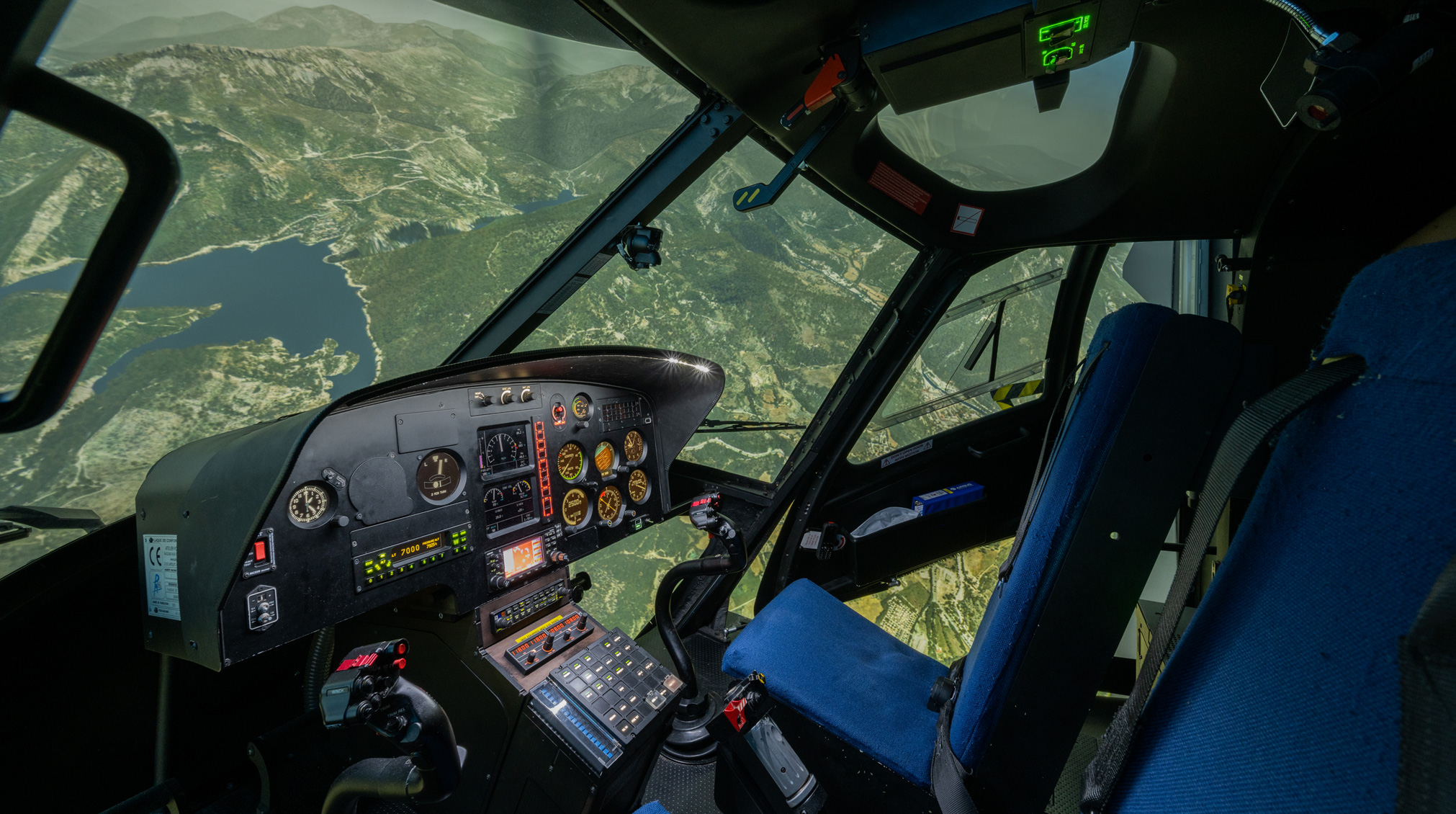

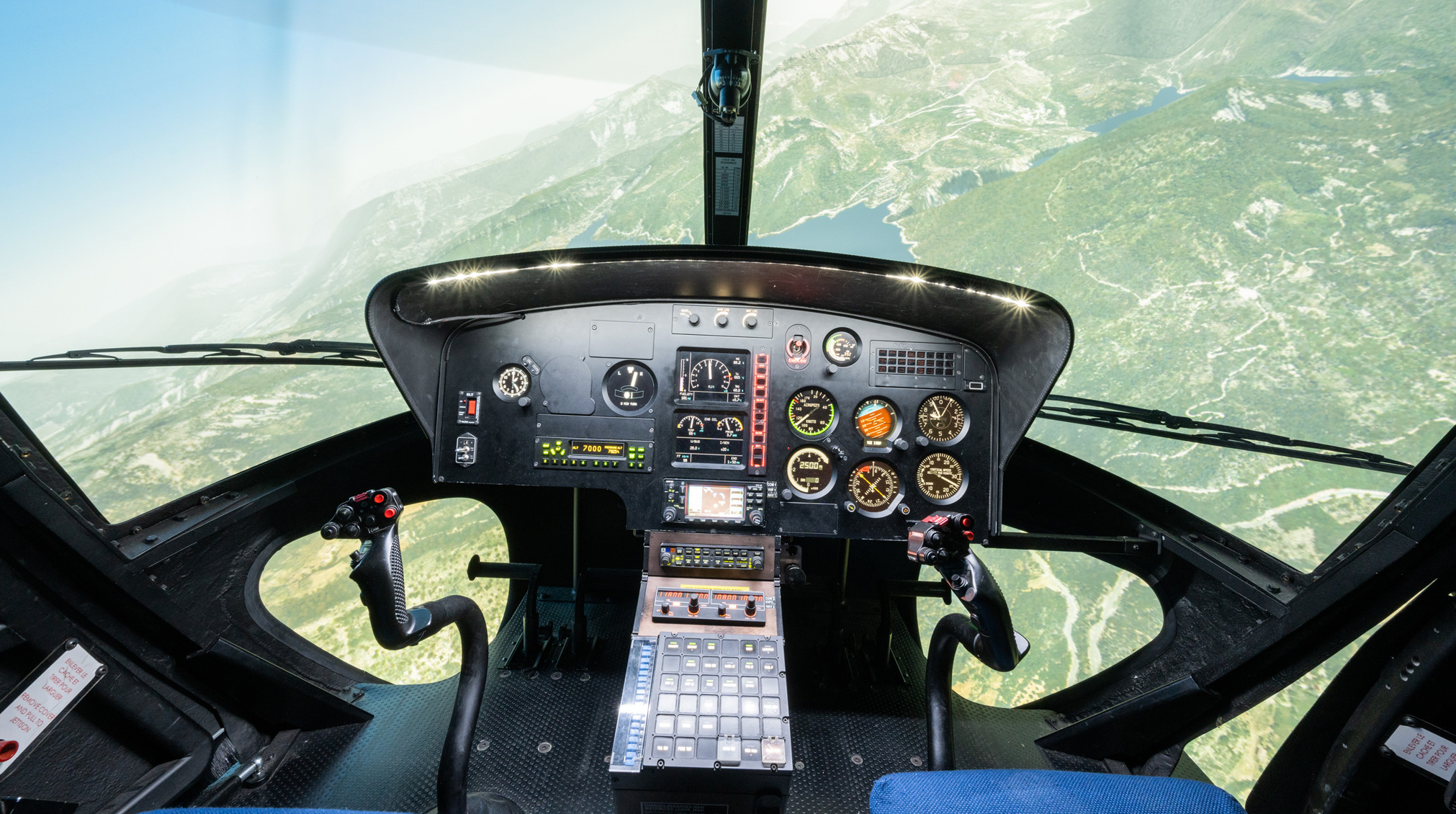

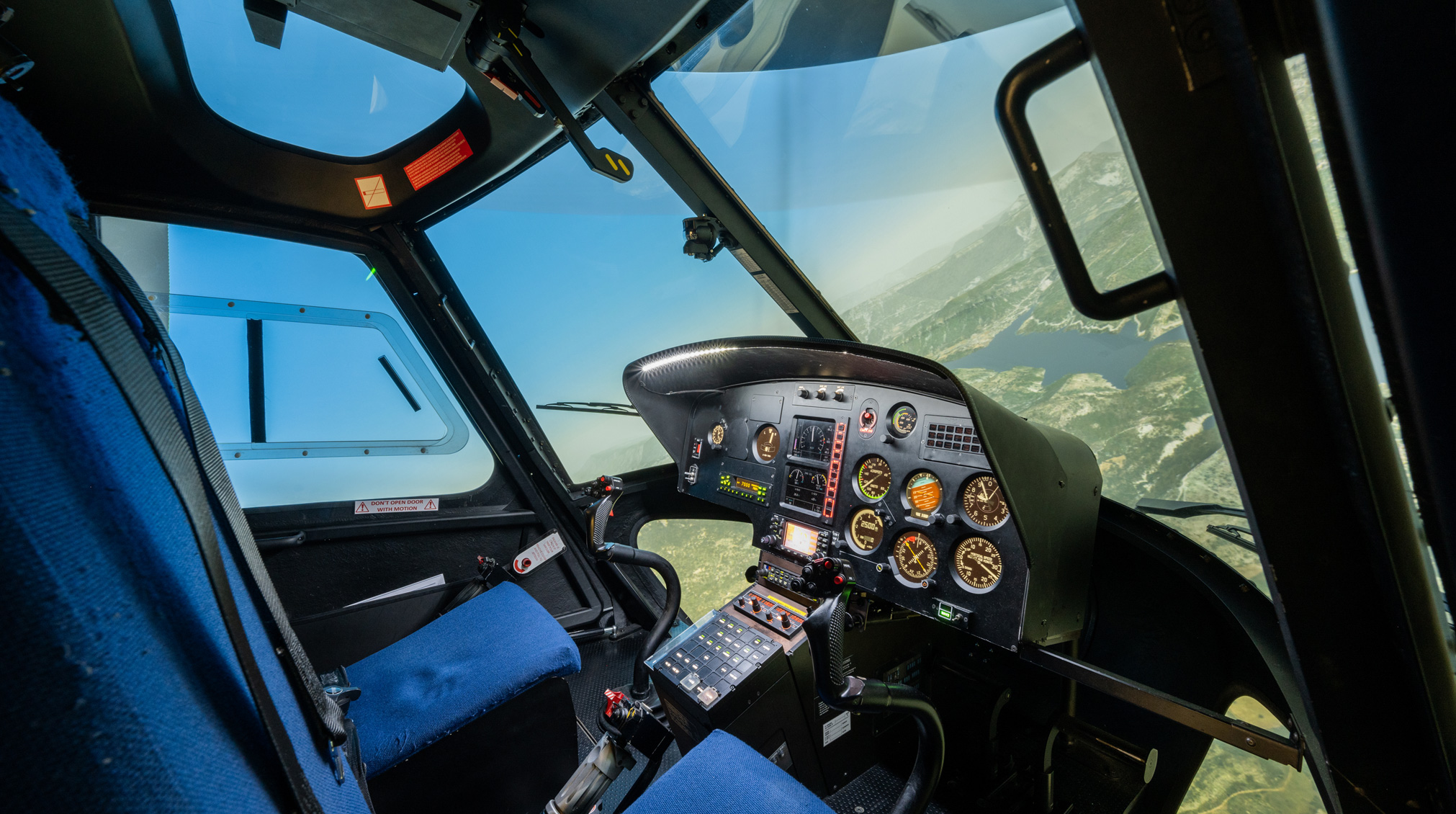

PILOT MAIN PANEL EQUIPMENT
-
Airbus Helicopters Rotor tachometer indicator (NR/NTL)
-
Airbus Helicopters Main warning panel
-
United Instruments UI800 Airspeed indicator
-
Thales Avionic H321EHM Horizon indicator
-
United Instruments UI 5934 Altimeter
-
Thales Avionic AHV16 Radio Altimeter
-
Honeywell KI525A HSI indicator
-
United Instruments UI7030 Vertical speed indicator
CENTRAL MAIN PANEL EQUIPMENT
-
Airbus Helicopters control box for light
-
Thales Avionic VEMD
-
Garmin GNS 430 VHF/VOR/LOC/GS/GPS COM, NAV 1
COPILOT MAIN PANEL EQUIPMENT
-
United Instruments UI9560N562 Turn & bank
-
Thommen Clock indicator
-
Airbus Helicopters KA51B Control slave
-
Garmin GTX 330 transponder
-
Kannad 406 AF-H ELT control panel
OVERHEAD PANEL EQUIPMENT
-
Airbus Helicopters Main overhead control panel
-
Airbus Helicopters Engine panel
PEDESTAL EQUIPMENT
-
Airbus Helicopters SCU/li>
-
Garmin GMA 340H ICS/li>
-
Honeywell KX165 VHF/VOR/LOC/GS COM, NAV 2/li>
-
Airbus Helicopters 5α Circuit breaker panel
MISCELLANEOUS COCKPIT EQUIPMENT
-
Vion St by compass
-
Crouzet Pilot Cyclic grip
-
Crouzet Copilot Cyclic grip
-
Crouzet Pilot collective grip
-
Crouzet Copilot collective grip
-
Airbus Helicopters Pilot pedal assembly
-
Airbus Helicopters Copilot pedal assembly
-
Airbus Helicopters Pilot seat
-
Airbus Helicopters Copilot seat
SIMULATED AVIONICS
-
Garmin GNS 430 VHF/VOR/LOC/GS/GPS COM, NAV 1
-
Honeywell KX165 VHF/VOR/LOC/GS COM, NAV 2
-
TEAM TB31 ICS
-
Thales Avionic AHV16 Radio Altimeter
-
Thales Avionic VEMD
-
Garmin GTX 330 transponder
-
Garmin GMA 340H ICS
Spec Updated June 21 2023
