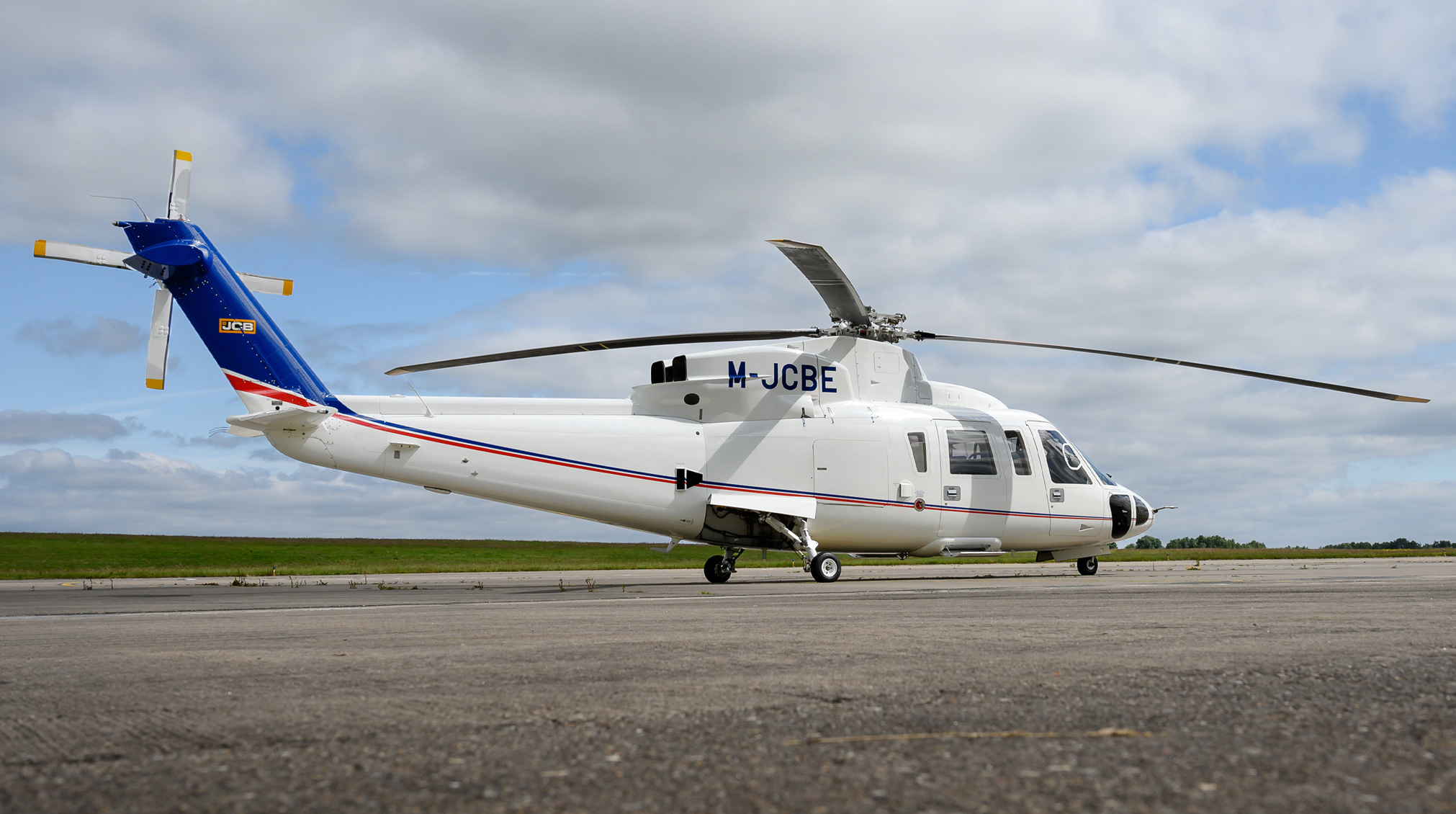

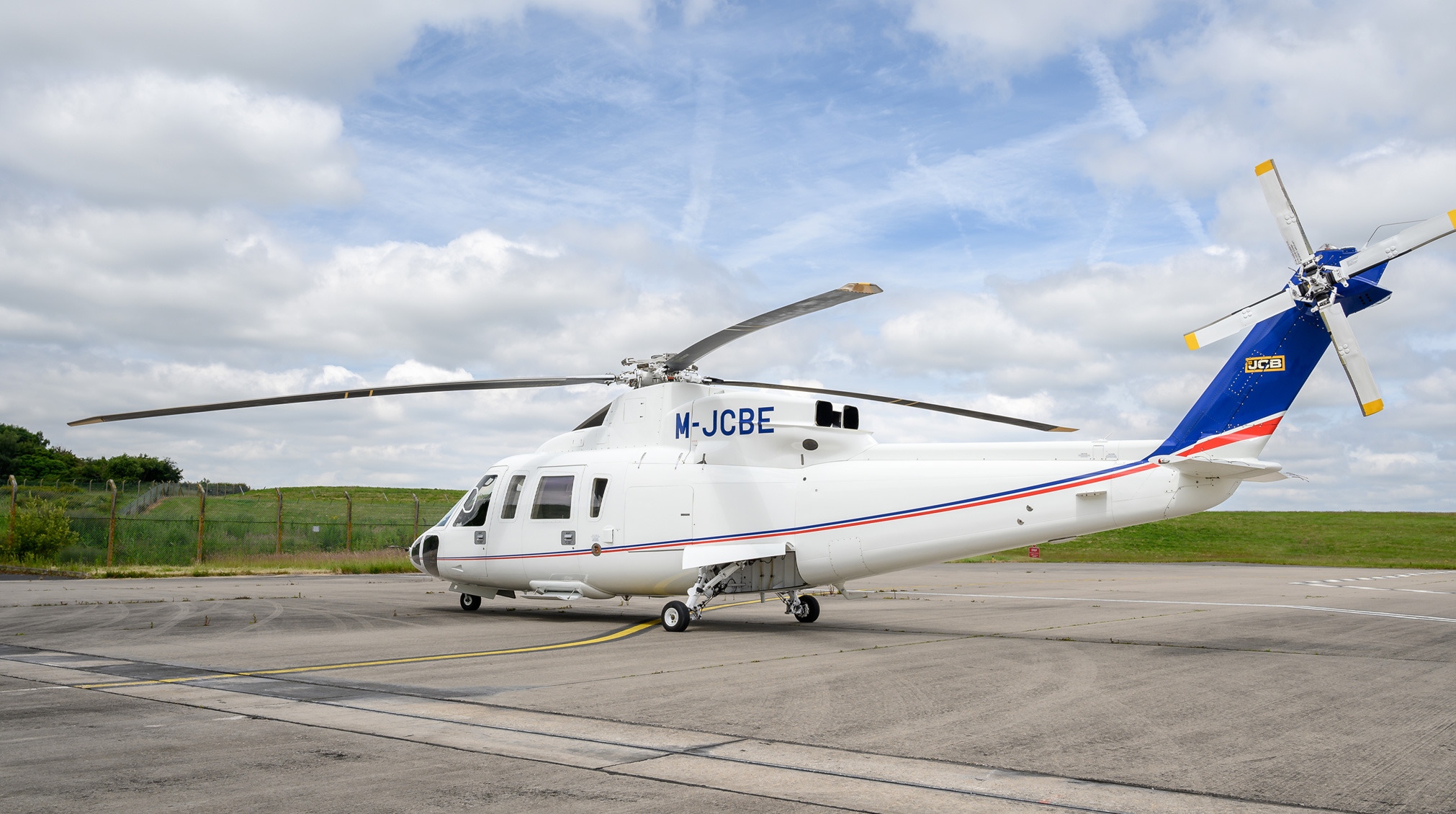

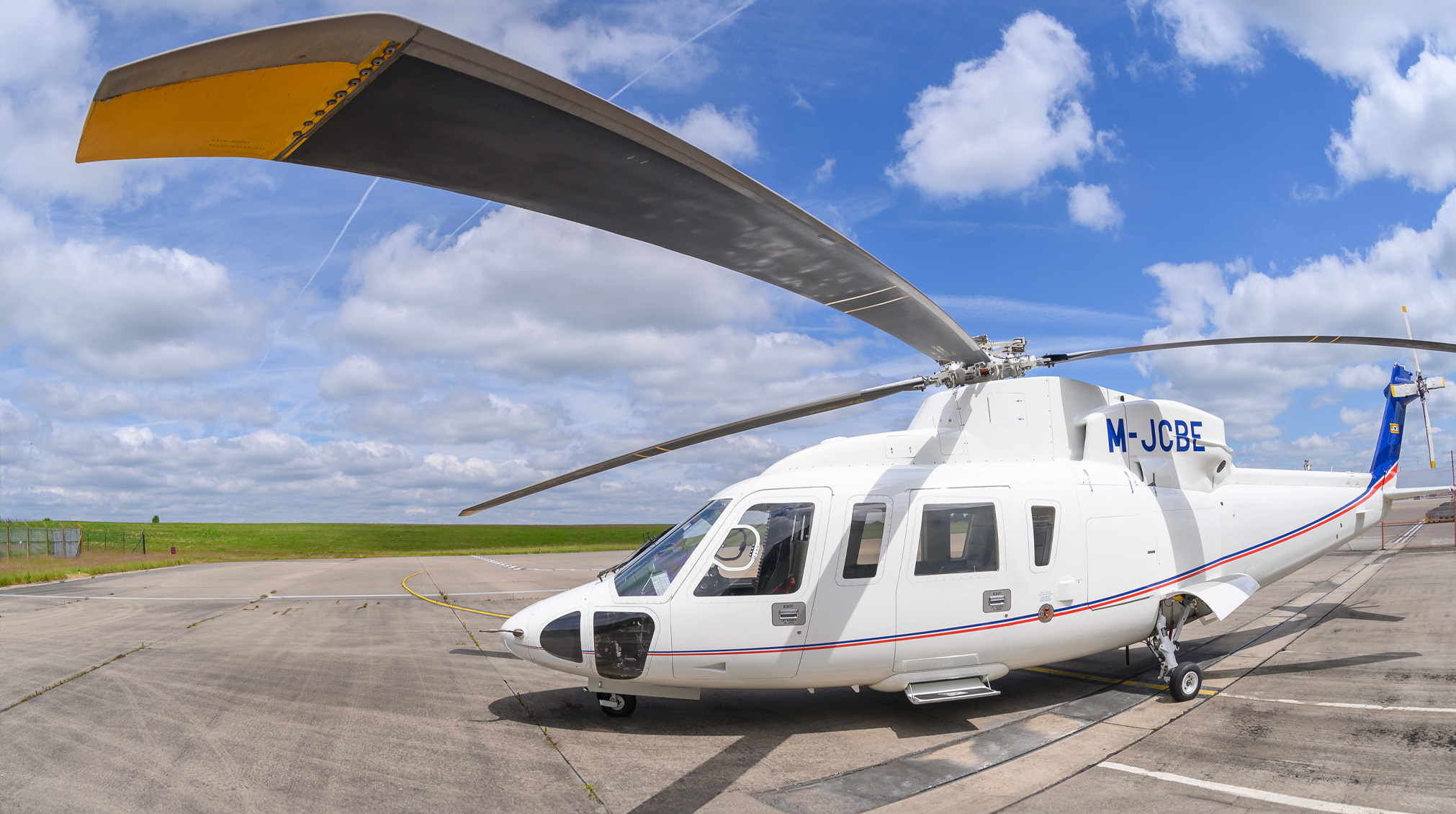

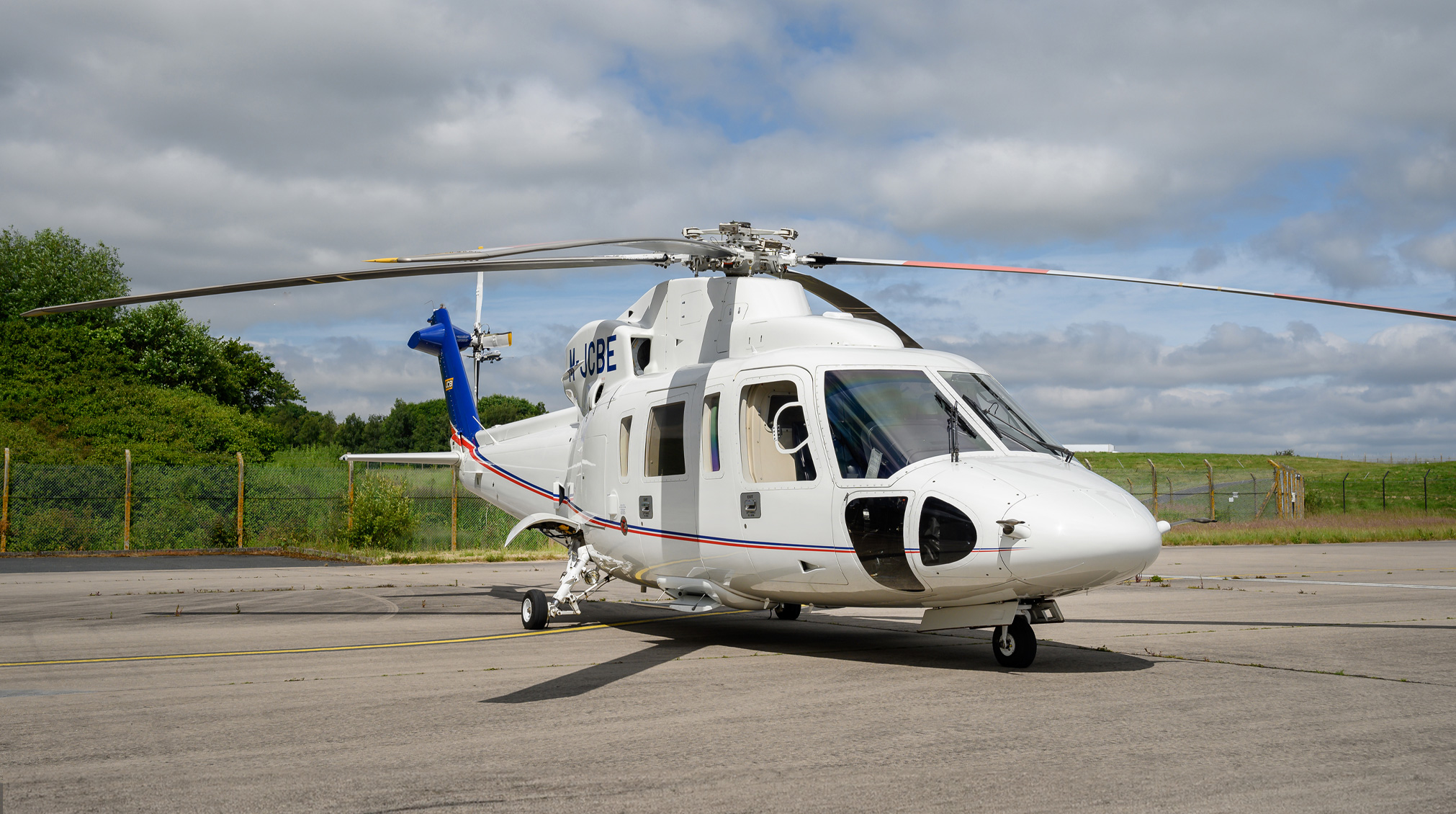

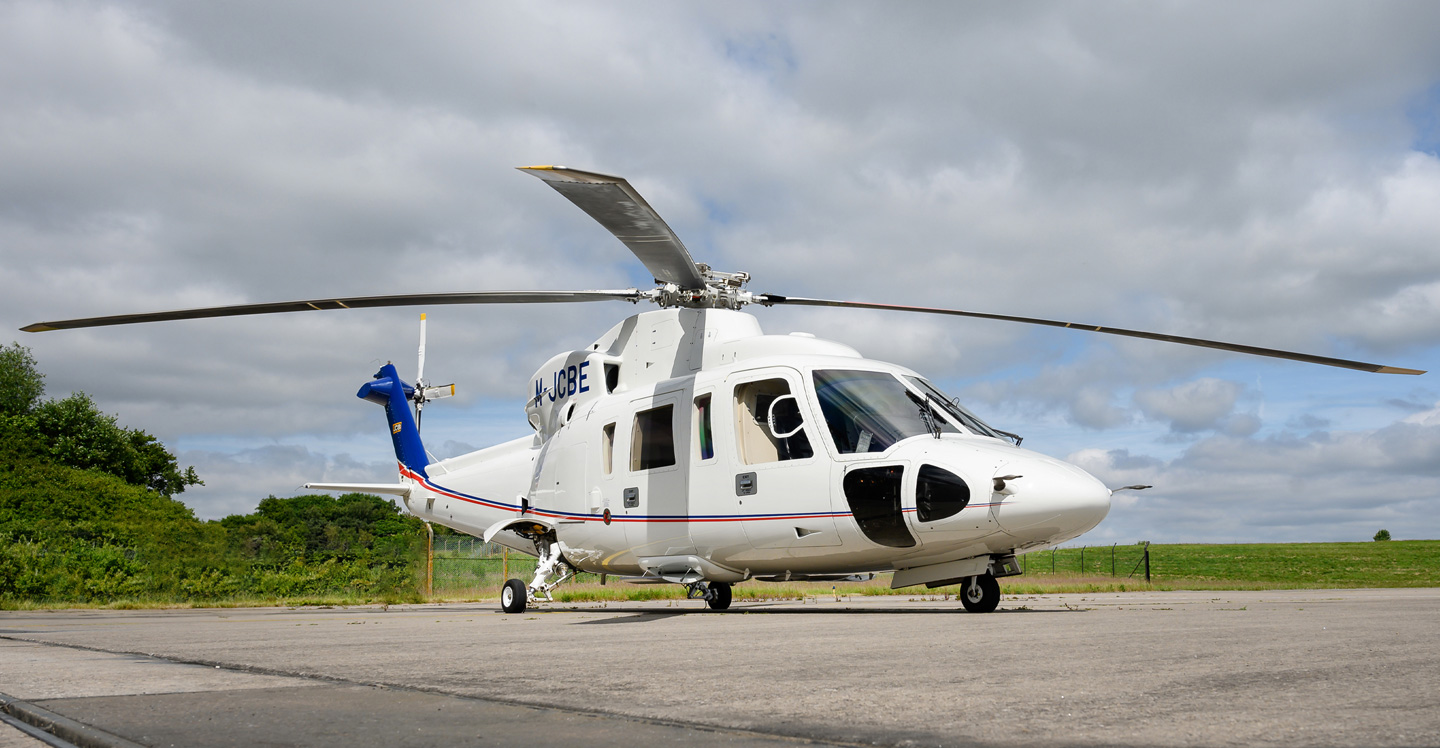

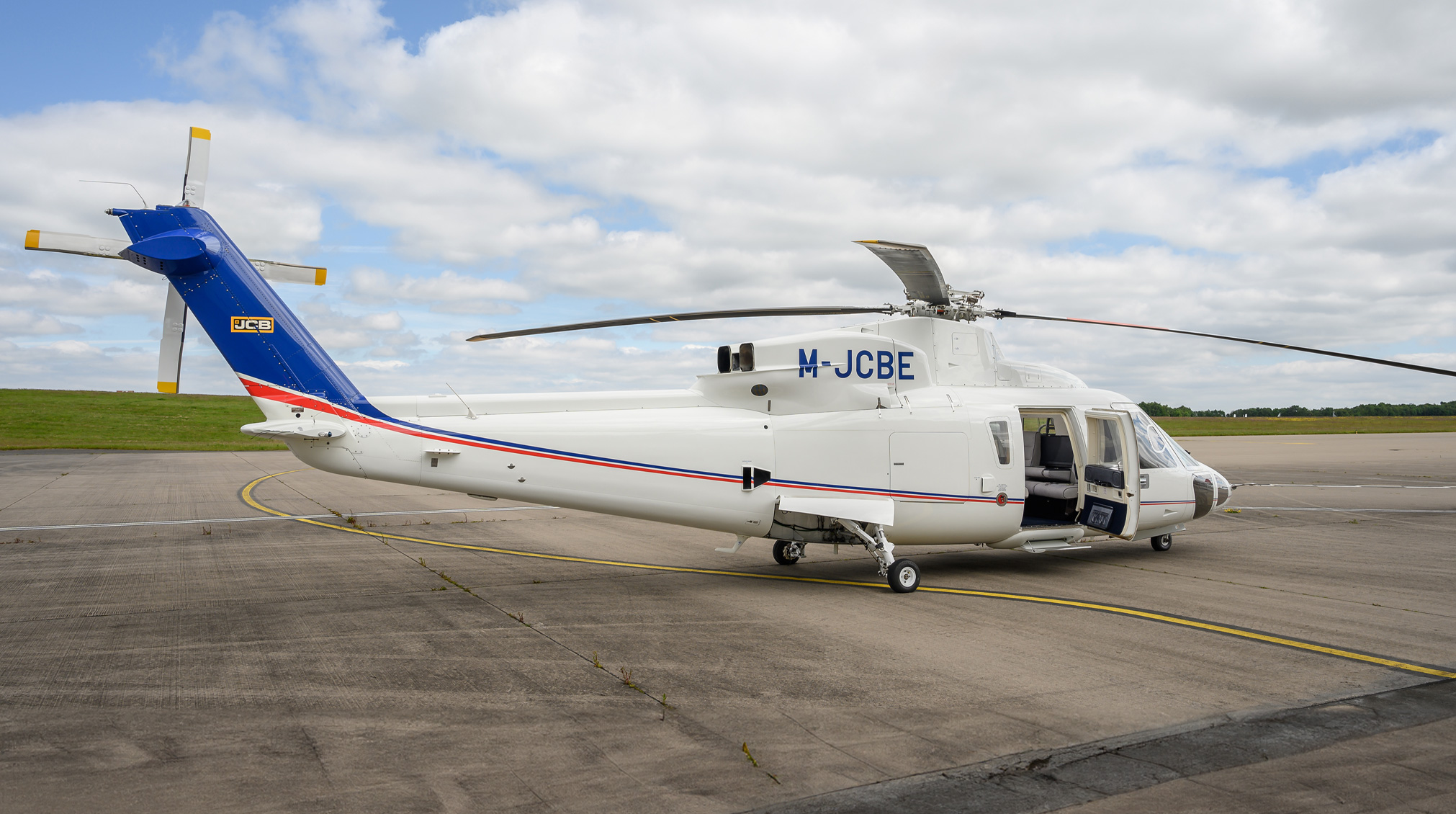

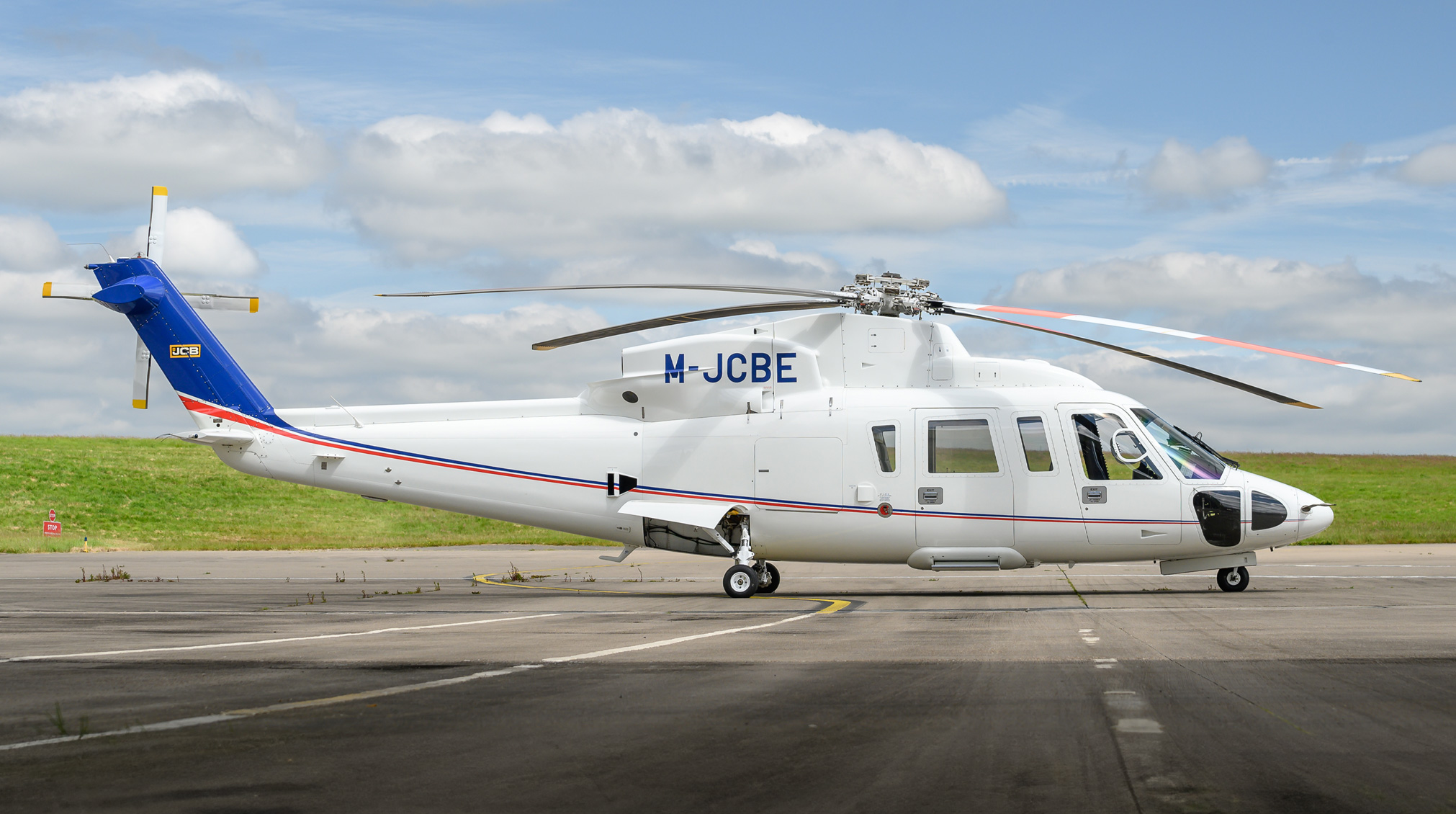

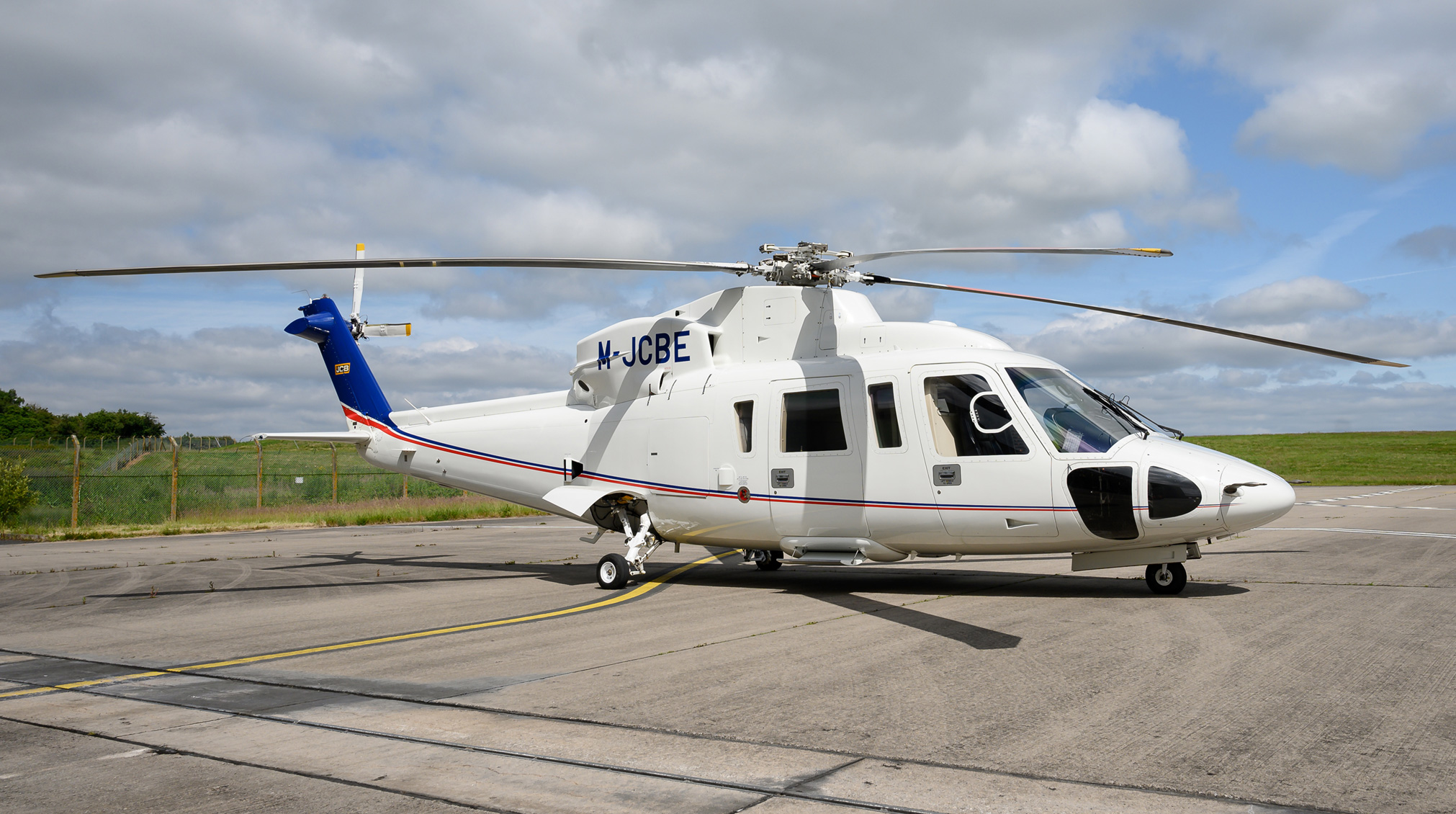

2006 Sikorsky S76C++

Details

DYNAMIC SYSTEM

• Two Turbomeca Arriel 2S2 engines
• Four blade articulated main rotor system
• Dual controls

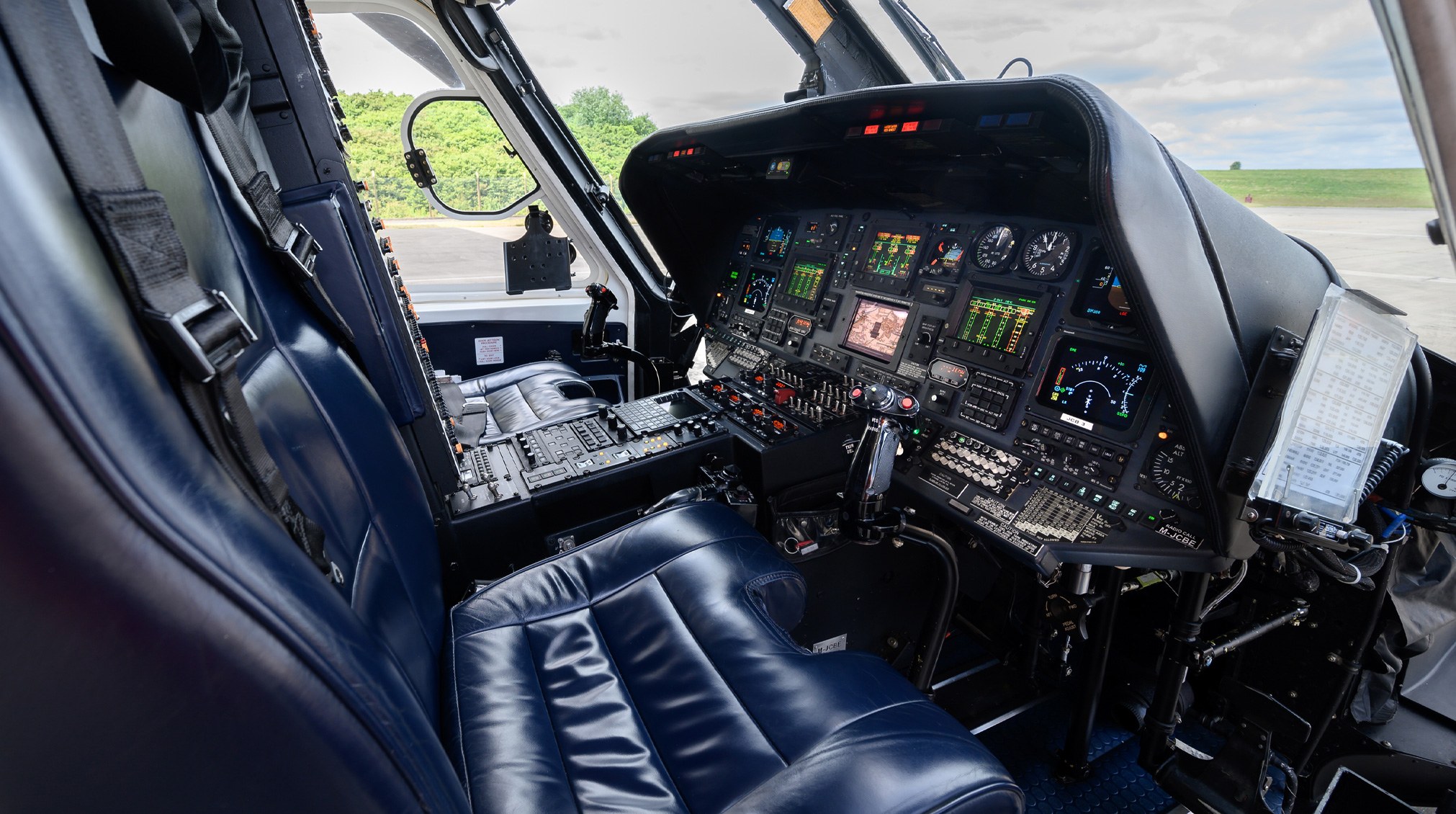

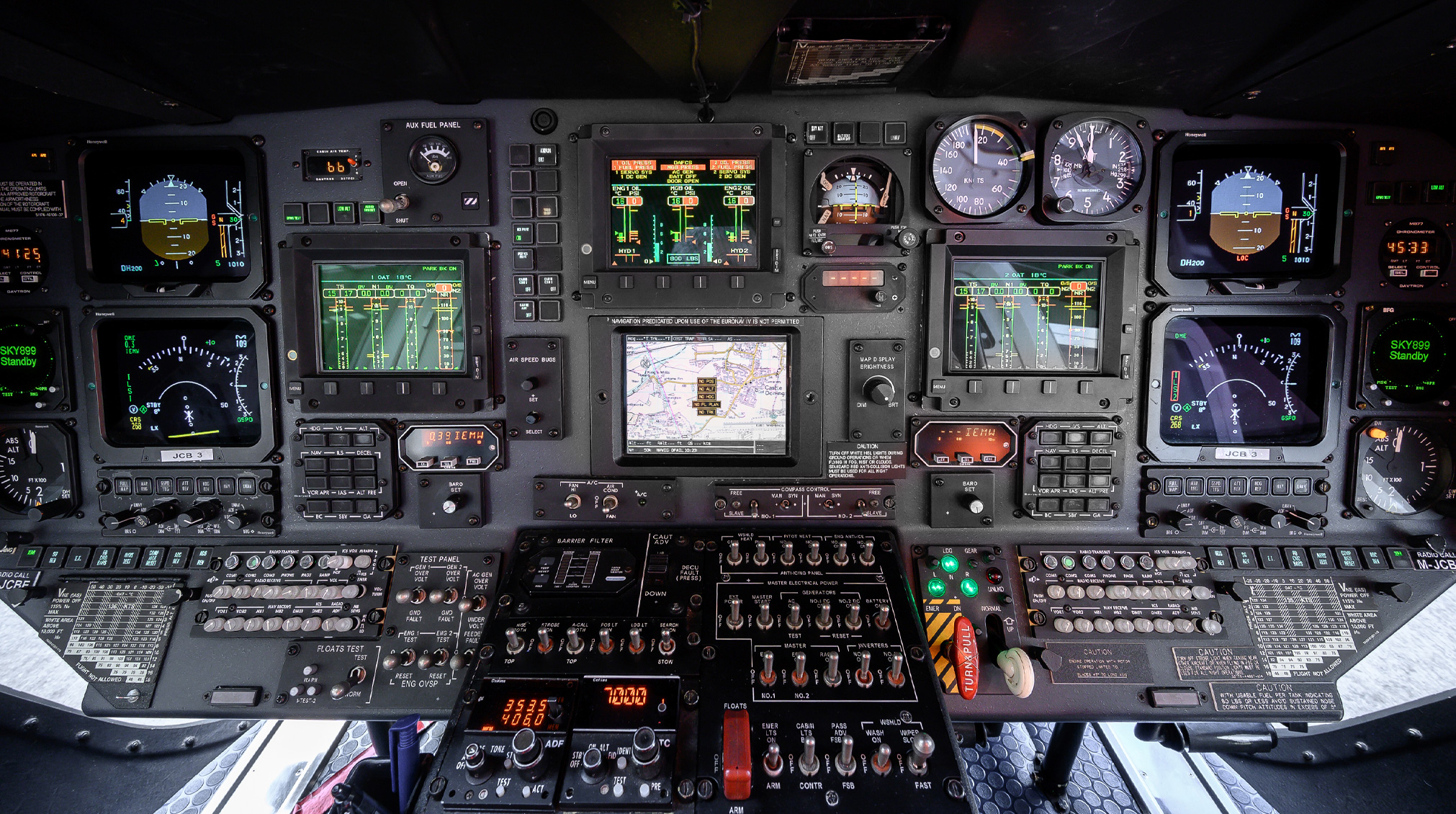

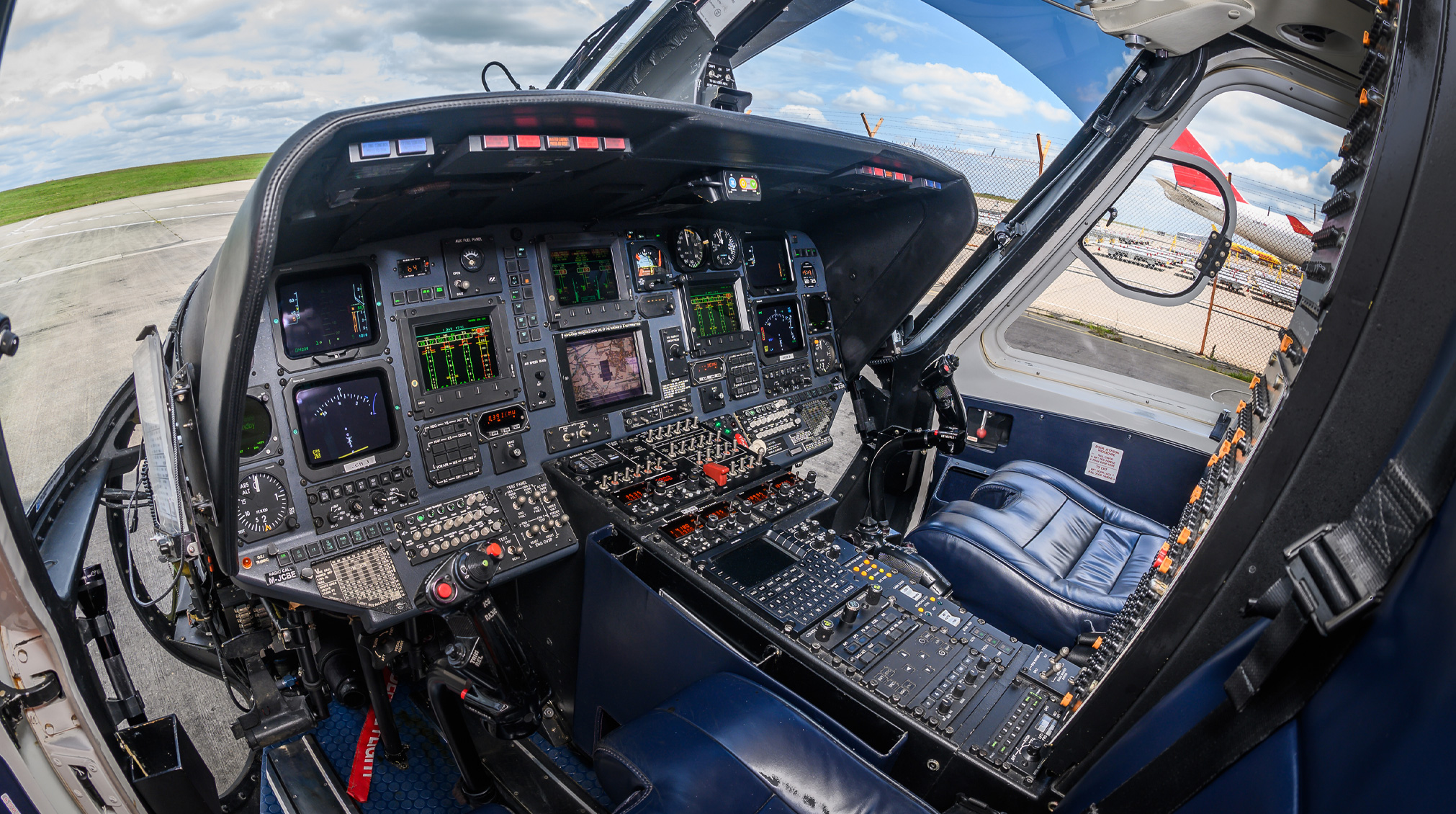

COCKPIT

• Integrated Instrument Display System (IIDS)
• Bleed air de-fogging system
• Dual windshield wiper system.
• Pilot and co-pilot seats with 5 point restraint harness

OTHER

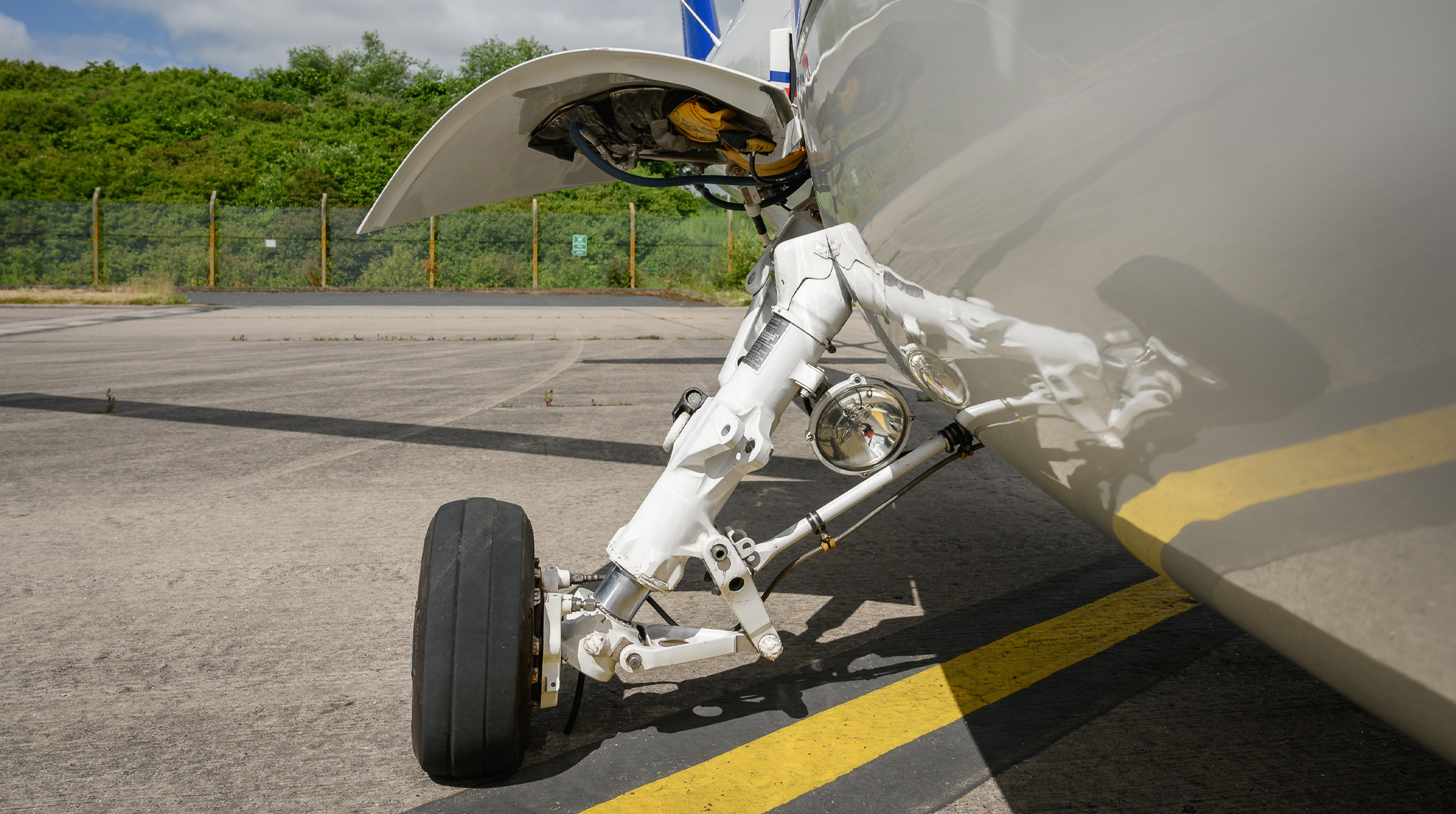

• Retractable landing gear
• 281 gallons of usable fuel

COLLINS PROLINE II

• Dual Collins VHF 22A Comms and VIR 32 Navs
• Single ADF 462
• TDR 90 Mode S transponder
• DME 42 with IND 42A indicator
• ALT 55B Radio altimeter with expanded scale ALI 55A indicator

HONEYWELL EFIS/DAFCS

• 4-Tube Honeywell EDZ 756 EFIS with 5”x6” Indicators displaying Airspeed, Altitude and Vertical speed
• Dual Penny and Giles Air Data Computers
• Dual Honeywell Digital SPZ 7600 Automatic Flight Control System
• Altitude Alert

ELECTRICAL

• 28 Volt electrical system with two 200 Amp Starter Generators
• 10 KVA AC generator
• Dual 375 VA Static Inverters
• Avionic and EFIS master switches

AUDIO

• Dual dB System audio control panels with ICS and VOX plus three maintenance jacks, one in the cockpit and two in the baggage bay
• Two Cockpit 45 Degree mounted ICS foot switches
• Cabin chime and PA system

BACKUP/SAFETY SYSTEMS

• 3” Backup airspeed indicator and altimeter
• ADI-335D Standby Attitude Indicator with NAV1/2 select
• ELT 100HM
• CVR provisions
• Electric door locks cabin

WEATHER SYSTEM

• Wx Avoidance Radar Primus 440
• Windshield washer system
• Heated Glass Windshields

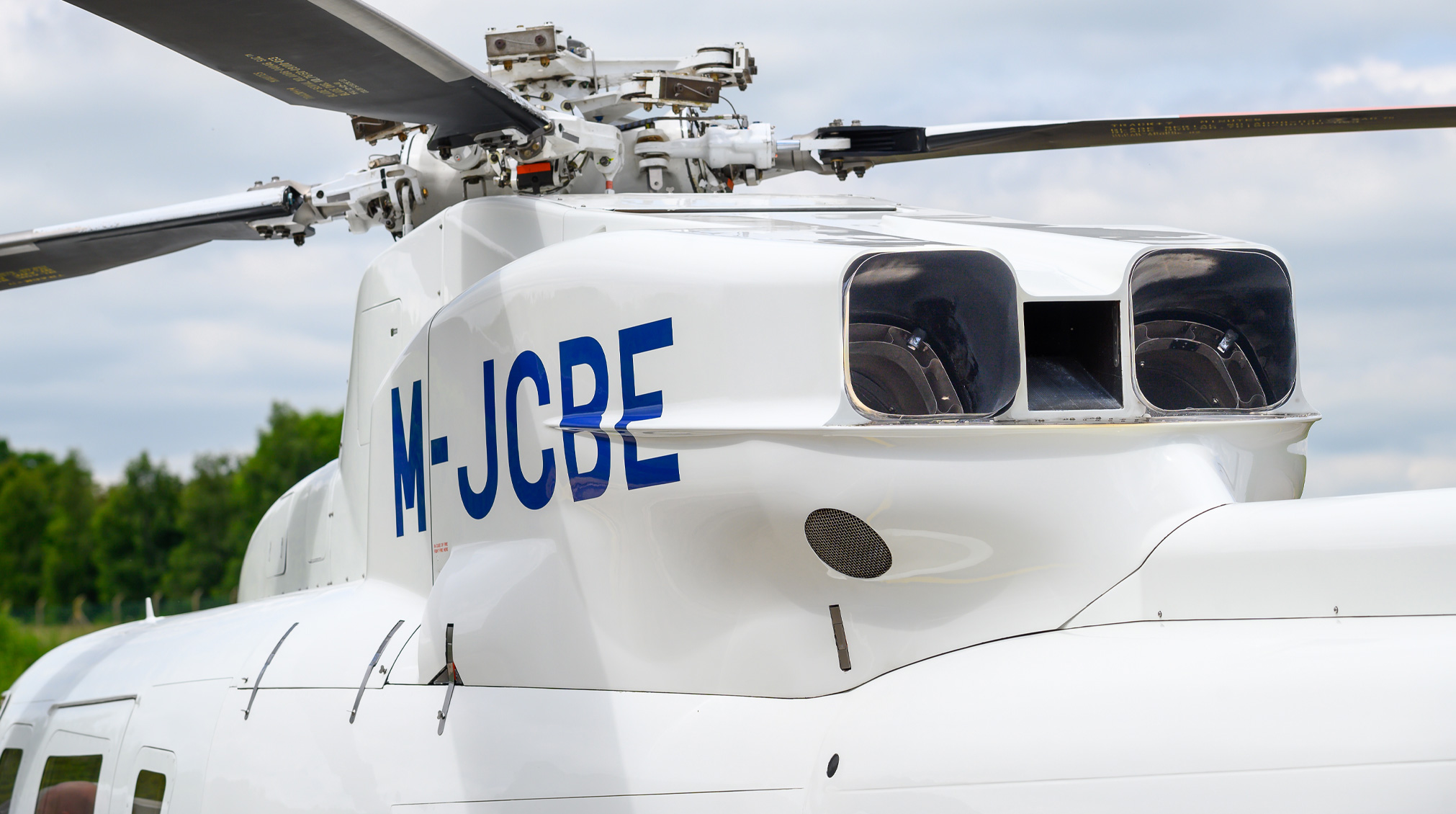

• Engine Inlet Barrier Filters

ADDITIONAL ITEMS

• Dual Mode S Transponders plus 2nd DME 42 Universal UNS-1F FMS system Lightning Strike Sensor LSZ 860 EGPWS Artex ELT Universal CR 120 Euro Avionics Moving Map System.

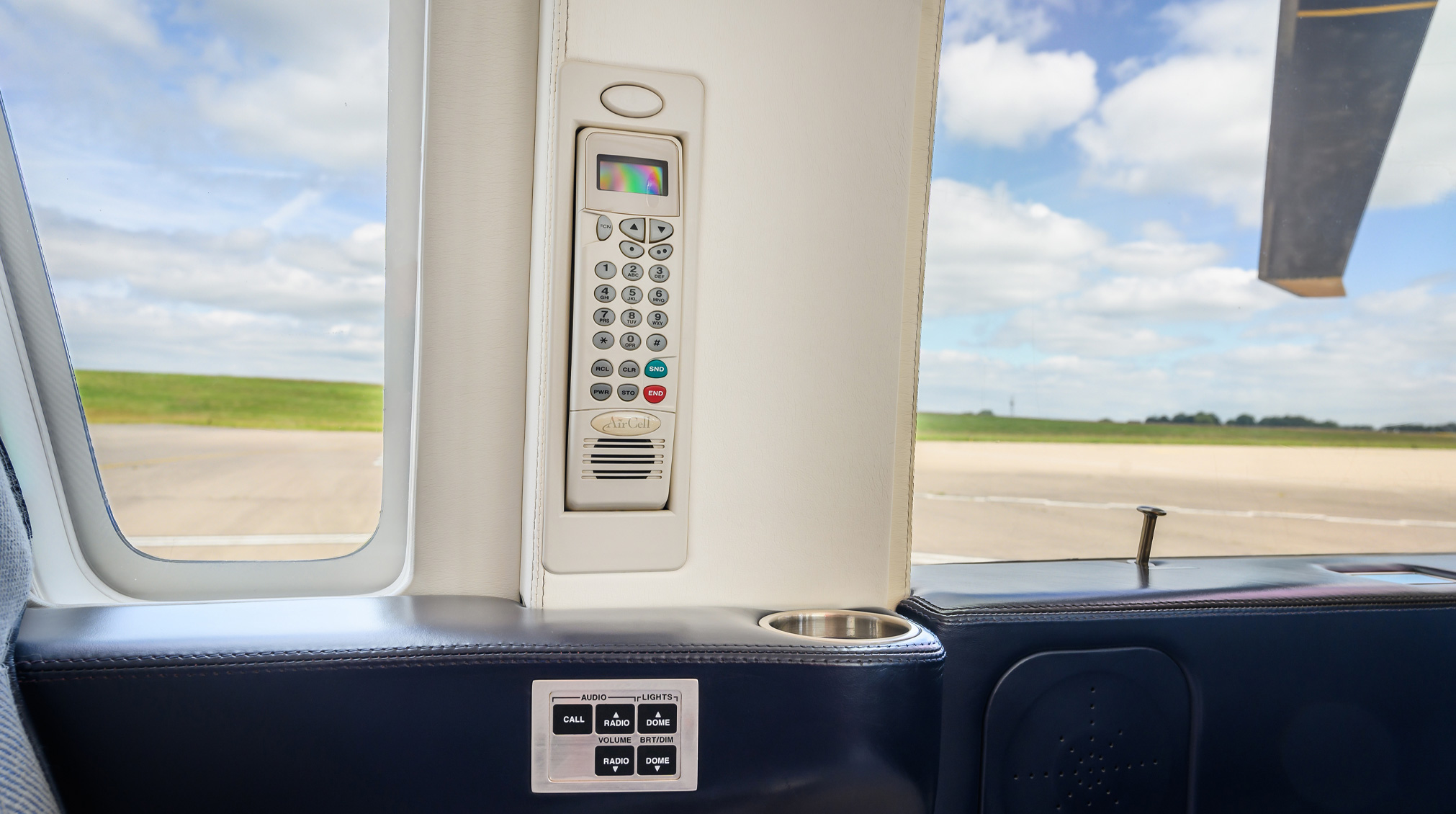

• Bose Audio Jacks in cabin/cockpit with Cabin ICS and Call system

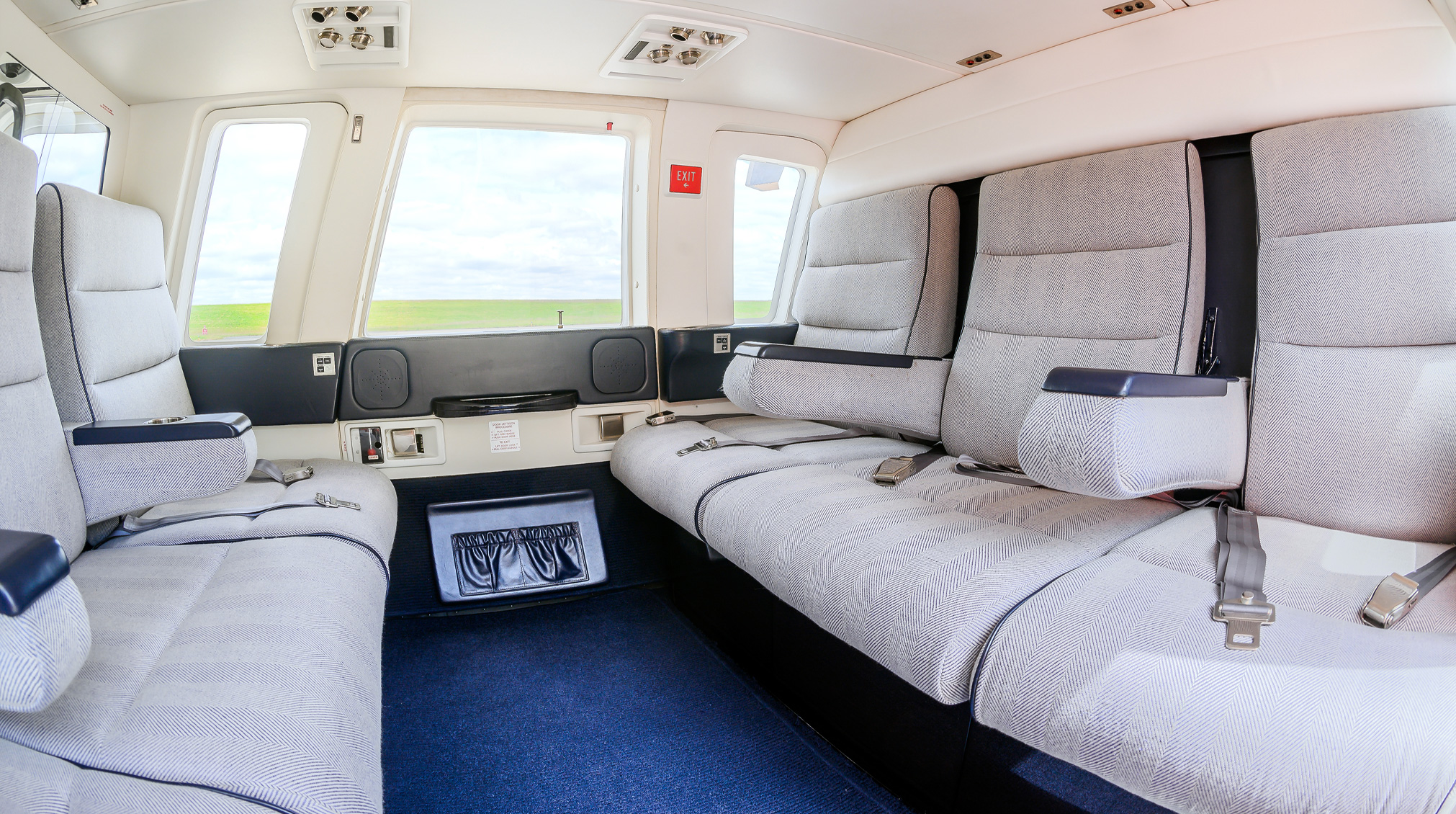

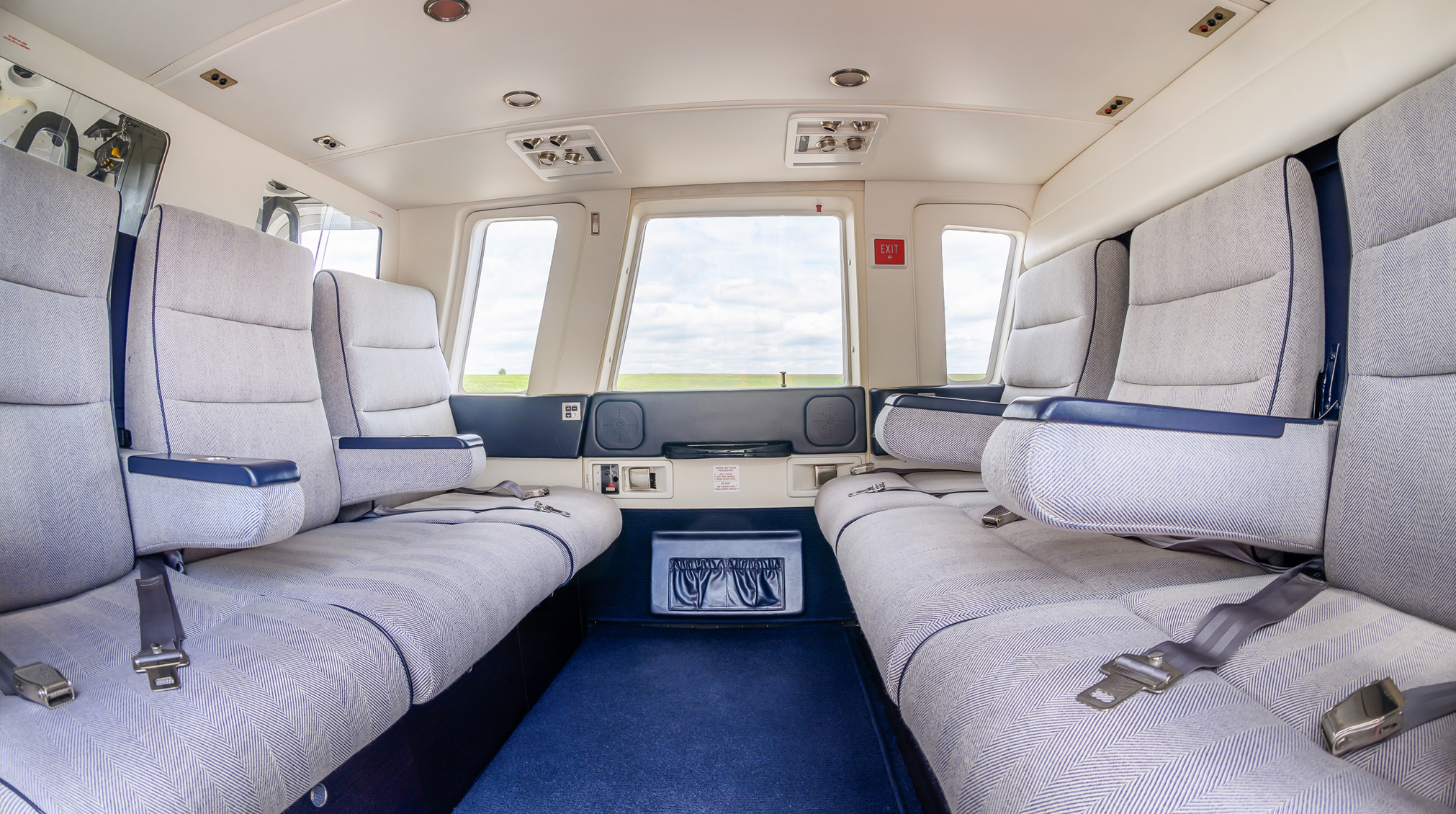

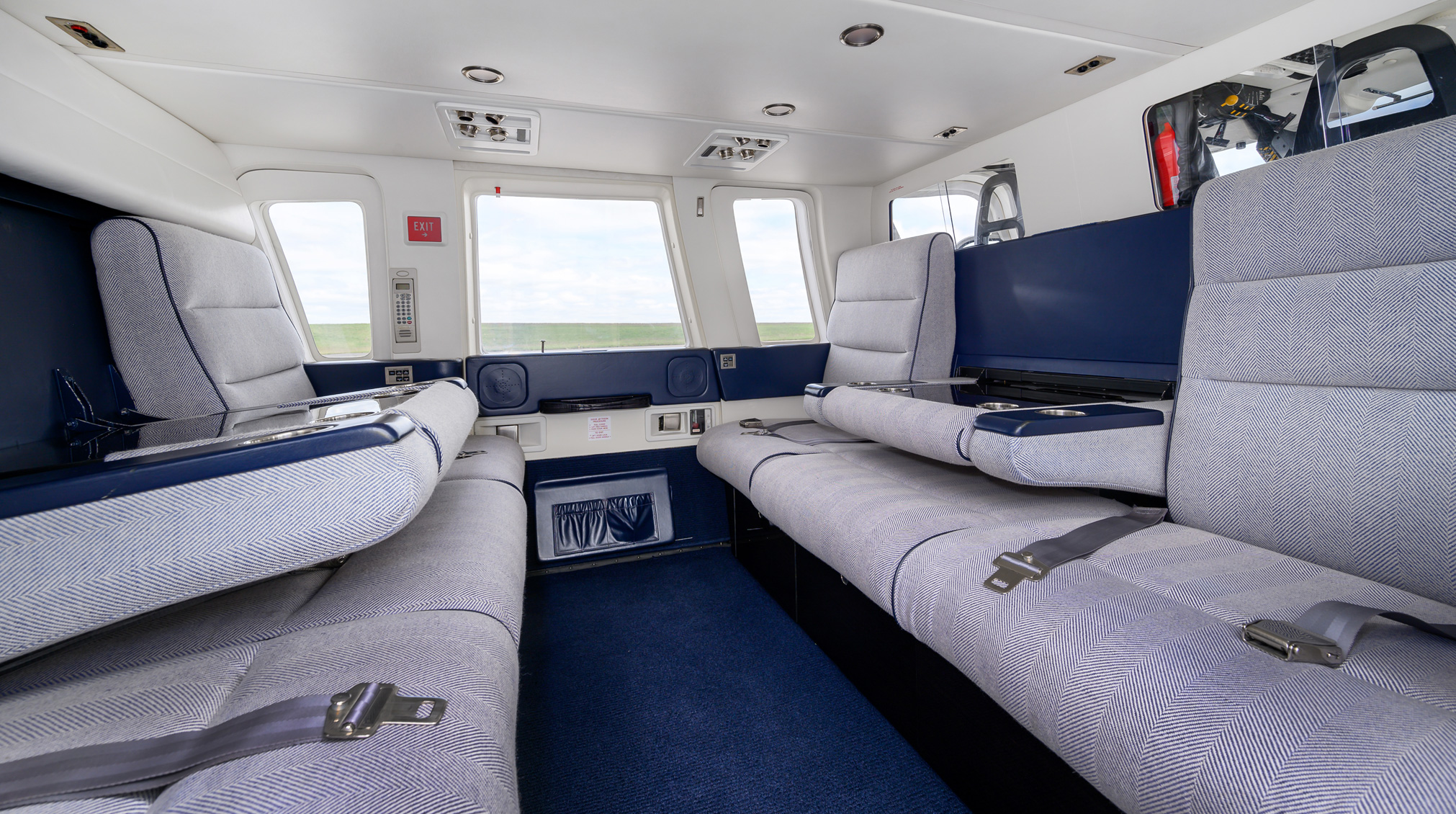

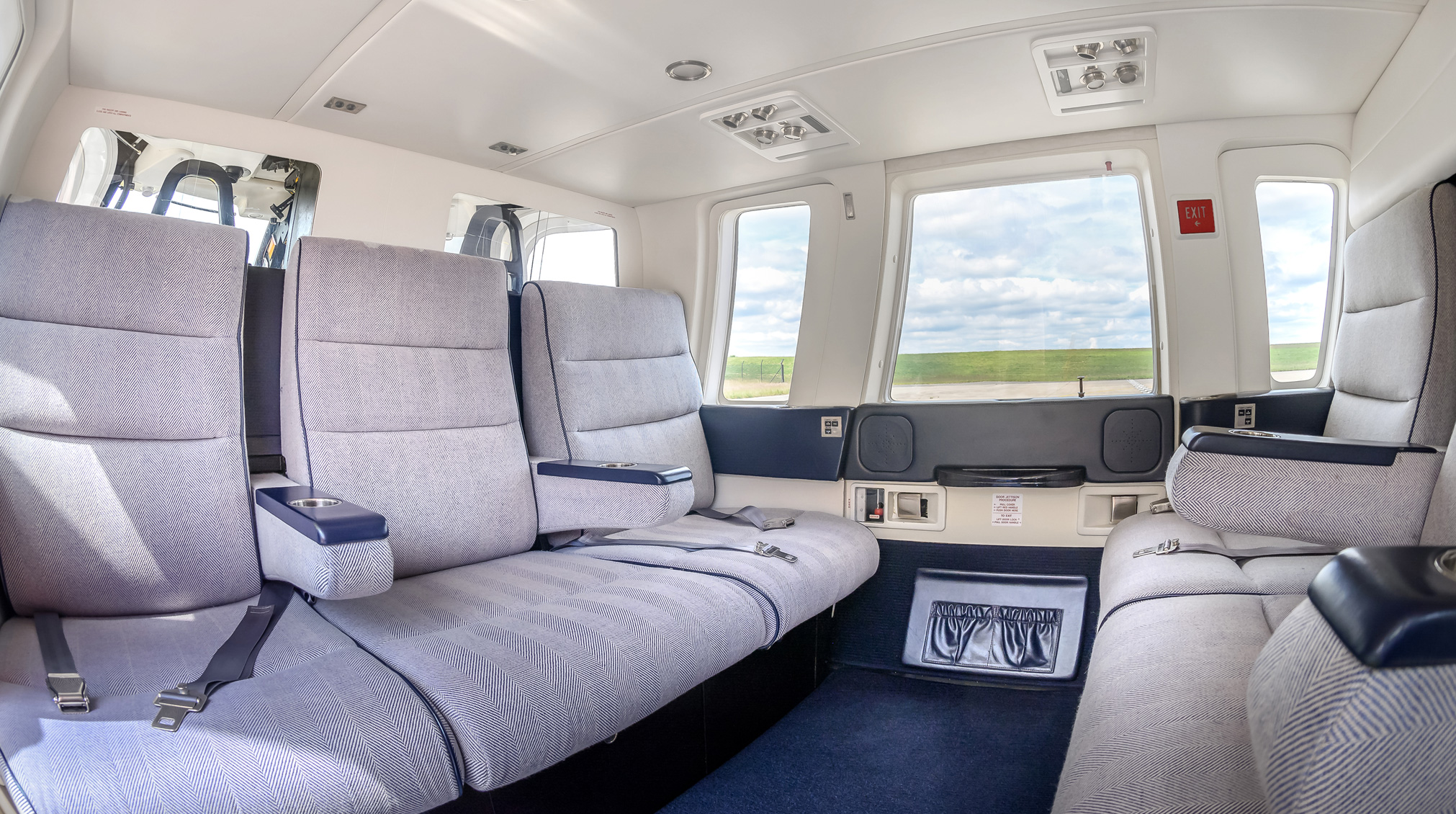

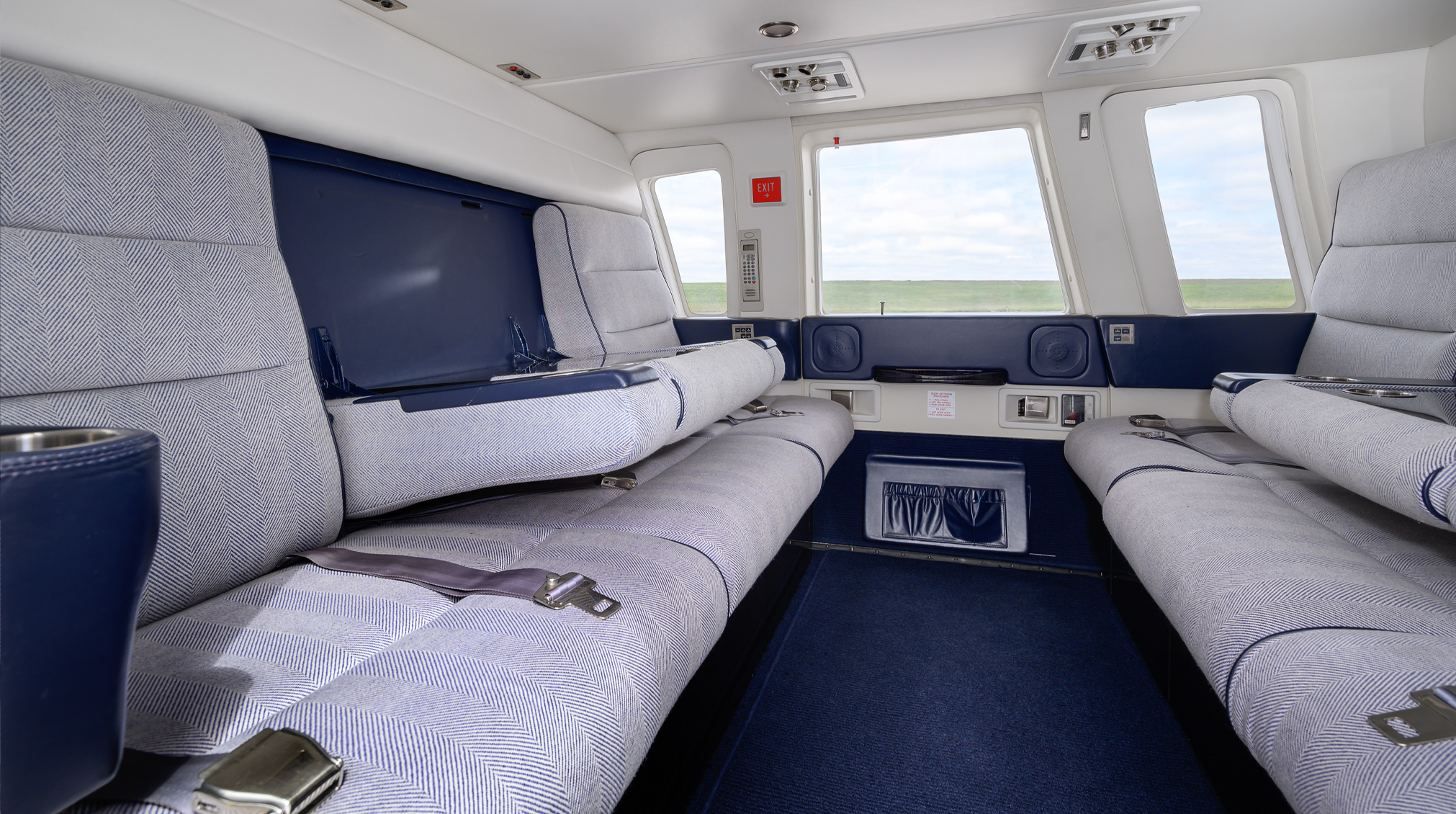

• Deluxe VVIP Interior including 4 cabin speakers, Aft facing 4 seat divan with fold down table and 3 under seat draws. Fwd facing 4 seat divan with fold down table and small 3 draw storage. Single action door release to 2 swinging cabin doors. Dual retractable boarding steps.
• Keith Air conditioning system, Floatation system, 5P bifilar and cabin absorbers.
