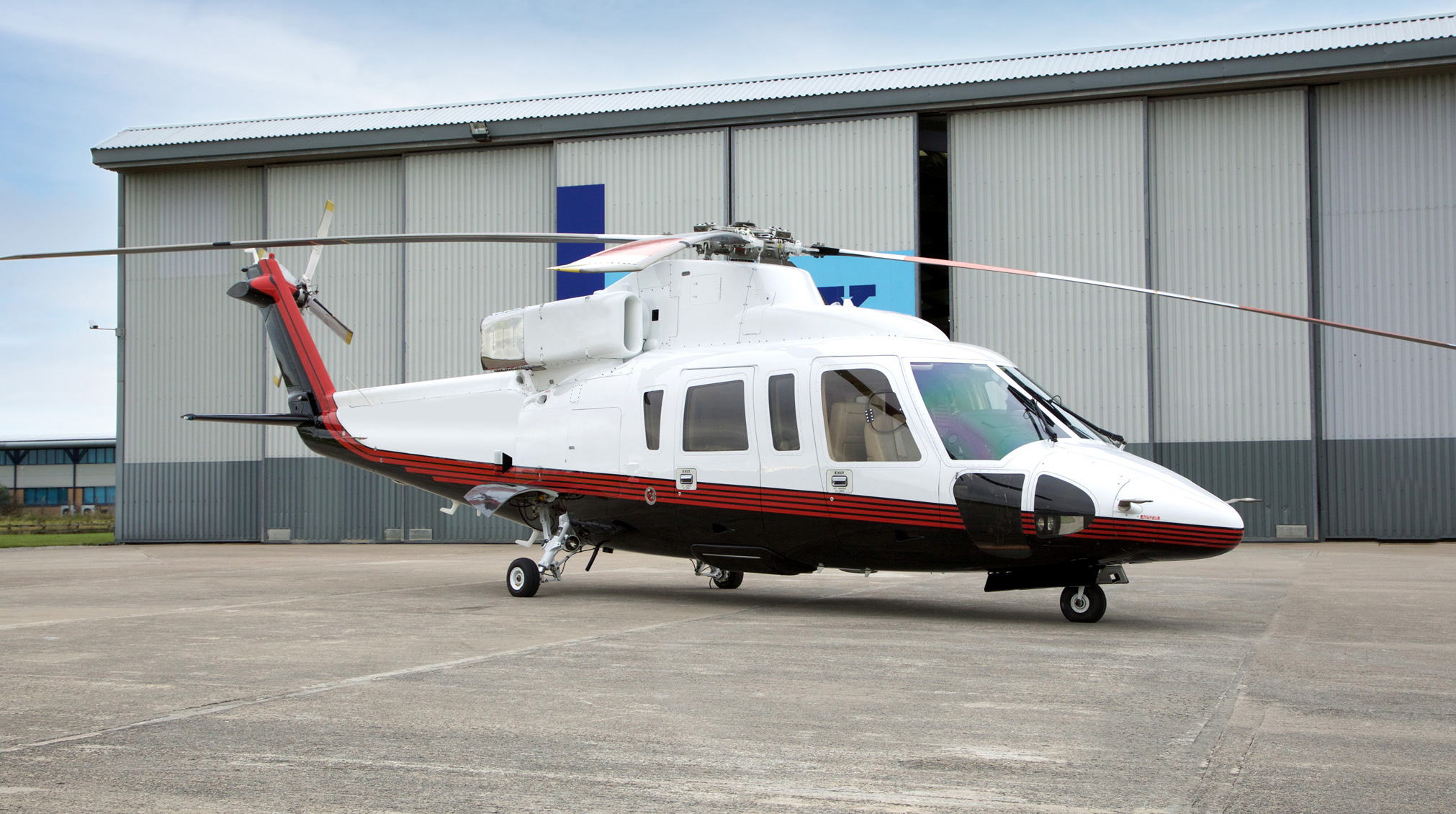

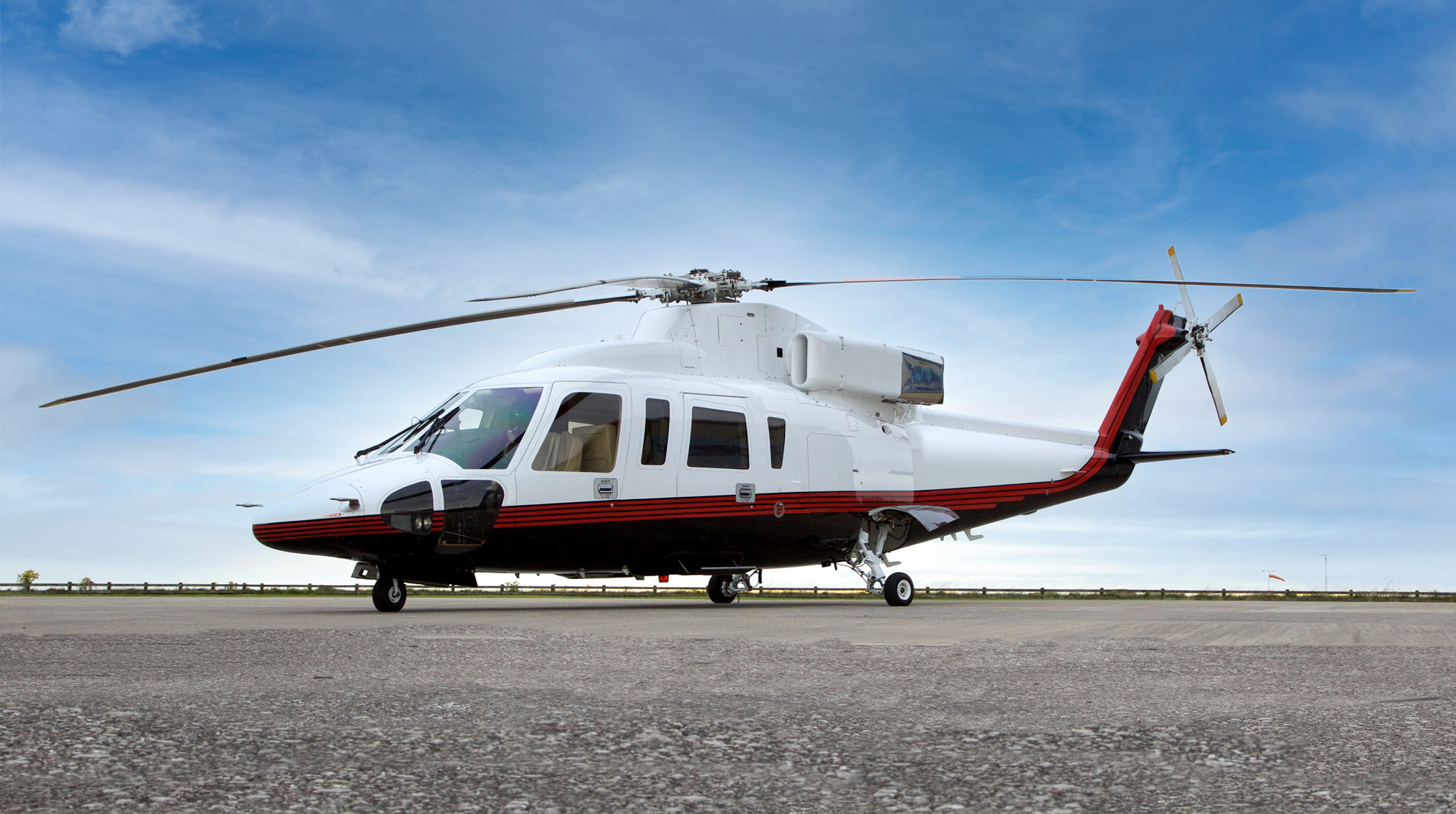

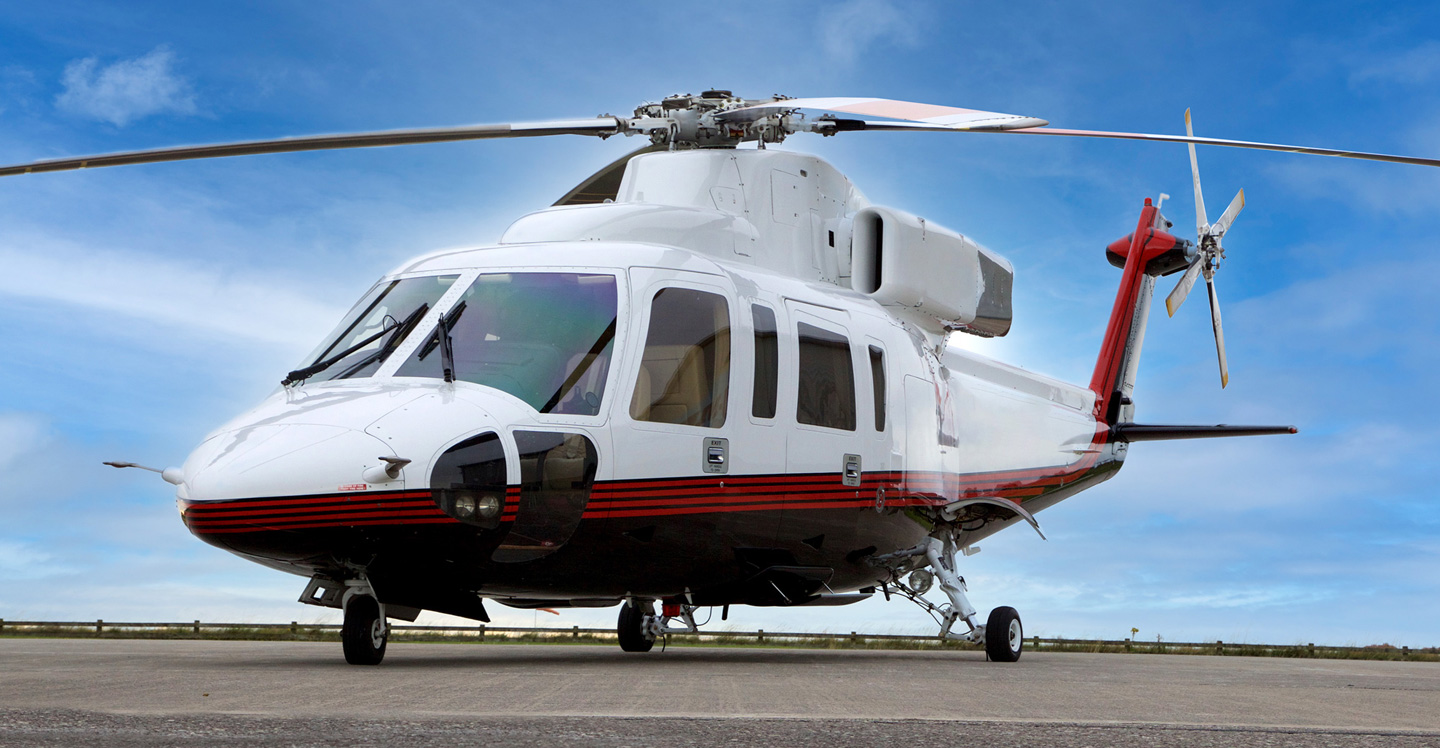

1990</span> Sikorsky <span>S76B

1990 Sikorsky S76B

S/N: 760362 | N120DT

Make offer
Sold

Total Hours
5859 hours since new

Engines
P&WC PT6B-36B

# TSN TSO
PCE-36097 5711 2297.3
PCE-36124 5451.7 2126.5

Highlights

  • 6 pax VIP interior
  • Dual ADS-B
  • Fresh 1500 hour & 3 Year Main Rotor Inspection
  • Enrolled on JSSI Engine
  • Enrolled on Sikorsky PAP

Download Full Specs

Details

AIRFRAME & SYSTEMS

  • Retractable Passenger Boarding Steps (left & right side)
  • Heated Glass Windshields
  • Windshield Wiper & Washer System
  • DC Electrical w/2 DC Starter-Generators & Dual Nose Mounted Batteries
  • AC Electrical Power System with AC Generator & Dual Static Inverters
  • Manual Rotor Brake System
  • 5P Bifilar Vibration Absorber
  • Forward Facing Recognition Lights in Nose Windows
  • Nose-Mounted Controllable Searchlight
  • Fixed Landing Lights on Left & Right Main Gear Struts
  • Pulselite System
  • Tel-Tail Lights on Vertical Stabilizer Lower Fairing
  • LED Strobe lights with top & Bottom Anti-Collision Lights
  • Longnose Radome
  • #1 & #2 Engine Wash Connectors in Baggage Bay
  • U/C Pin Stowage Pockets (L/H & R/H Baggage Bay Doors)
  • Cabin & Cockpit Air Conditioning System (Keith)
  • Two (2) Cockpit Grimes Utility Lights
  • Electronics International - Cabin Air Temp Gauge
  • Tail Rotor Grease Pedal Modification
  • Provisions for Emergency Floats only

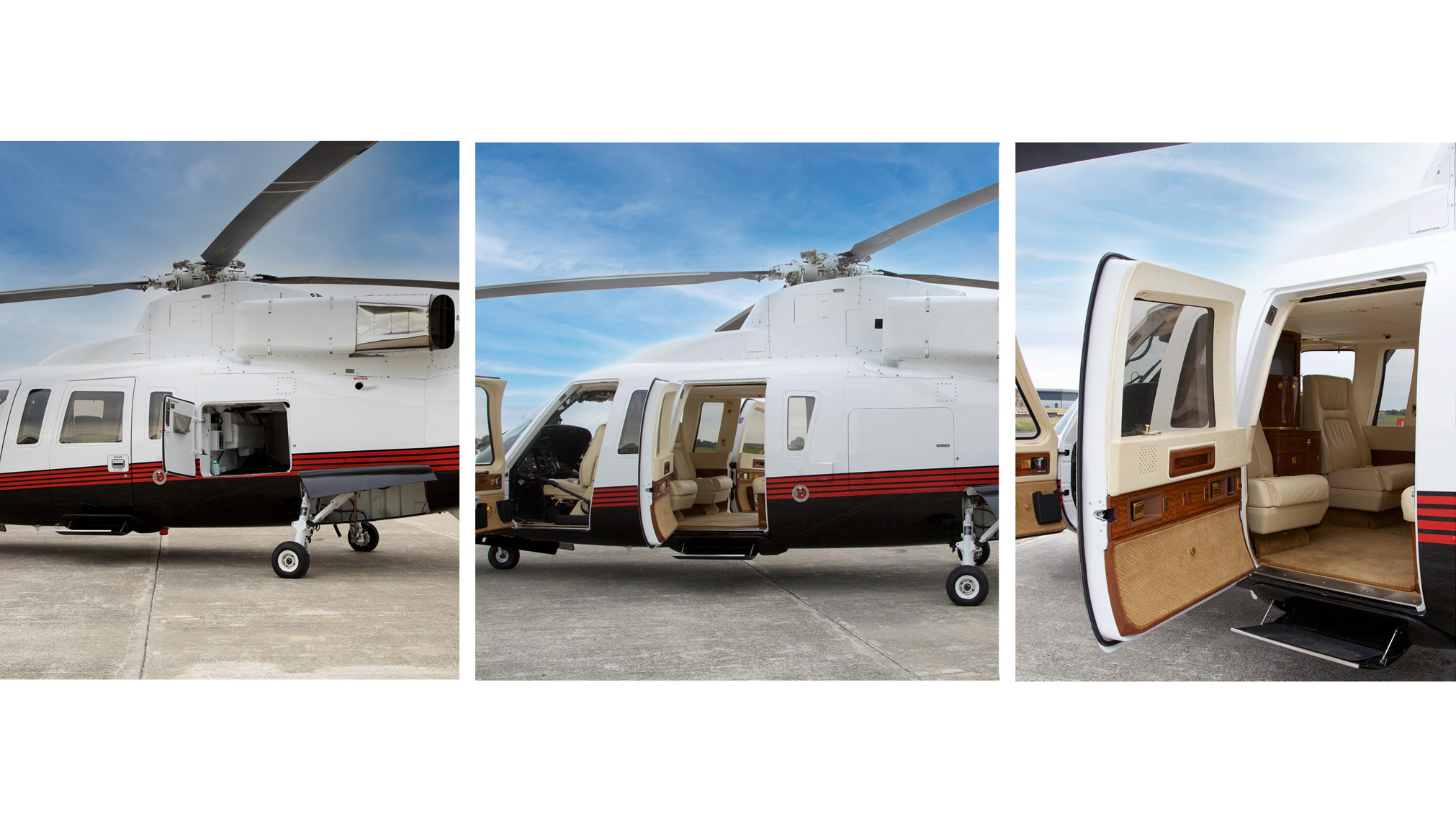

  • Hinged Cockpit & Cabin Doors (left & right side)
  • Key locks for Cockpit, Cabin & Baggage Compartment Doors
  • Hinged Fuel Filler Caps with Key Locks
  • Cockpit-Controlled Electric Locks for Cabin Doors

AVIONICS

  • Dual ADS-B
  • Dual Collins VHF-22C Comms, 8.33 KHz
  • Dual Collins NAV DME-42
  • Dual Collins VIR-32 (-201) VHF NAV 8.33 MHz
  • Dual Collins Radio Altimeter ALT-50
  • Collins ADF-60A Radio Compass
  • Garmin GDX 1090’s with IPad support for Traffic & Weather output
  • Dual Sperry C14 Compass
  • Standby Horizon w/Jet Pack
  • Baker Electronics PAX Briefing System Provisions (No Cabin ICS jacks)
  • Cockpit Voice Recorder (Fairchild A100A)
  • Cabin Paging & Chime System (No Cabin Speakers)
  • Honeywell Primus 870 Weather Radar
  • Honeywell LSZ-850 Lightning Strike Sensor
  • Garmin GMX-200 Moving Map
  • ICS Modified for “Hot Mic” OPS
  • AVAD w/Rad Alt 100’ Call-Out Alerts
  • Universal UNS-1D Flight Management System with GPS/TAS
  • Emergency Locator Transmitter (Artex C-406-N HM)

CABIN EQUIPMENT

  • Kidde Graviner Halon 1211 Fire Extinguisher
  • First Aid Kit
  • Cabin Door Magazine Rack (R/H Door Only)
  • Wulfsberg RT-18D Flight-Phone Provisions

COCKPIT EQUIPMENT

  • Qty. (1) Kidde Graviner Halon 1211 Fire Extinguisher
  • Qty. (2) Life vest
  • Qty. (2) Coat Hook (Broom cupboard)
  • Broom Closet - Raven Wing Ultraleather

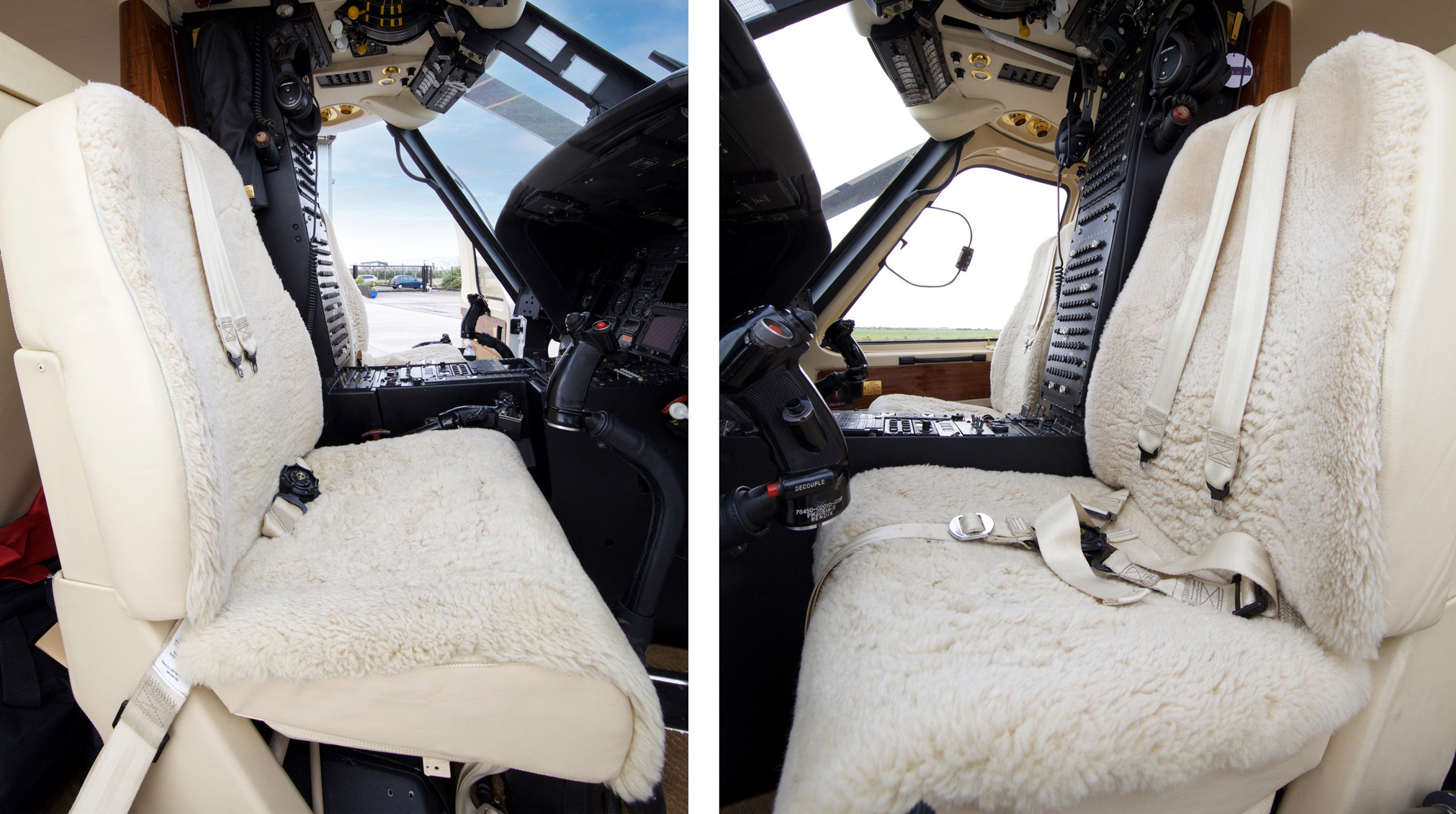

  • Crew Seats - Beige Sheepskin & Ecru Leather

BAGGAGE BAY LOOSE EQUIPMENT

  • Exterior Covers & Plugs (set)
  • Qty. (2) Engine Inlet Plug
  • Qty. (2) Engine Exhaust Plug
  • Qty. (2) Engine Compartment Cooling/Extinguisher Plug
  • Qty. (1) ECS Inlet Plug
  • Qty. (2) Pitot Tube Covers
  • Qty. (2) IGB Inlet Plug
  • Qty. (3) Landing Gear Pins
  • Qty. (2) Cockpit/Cabin/Baggage Bay Door lock key

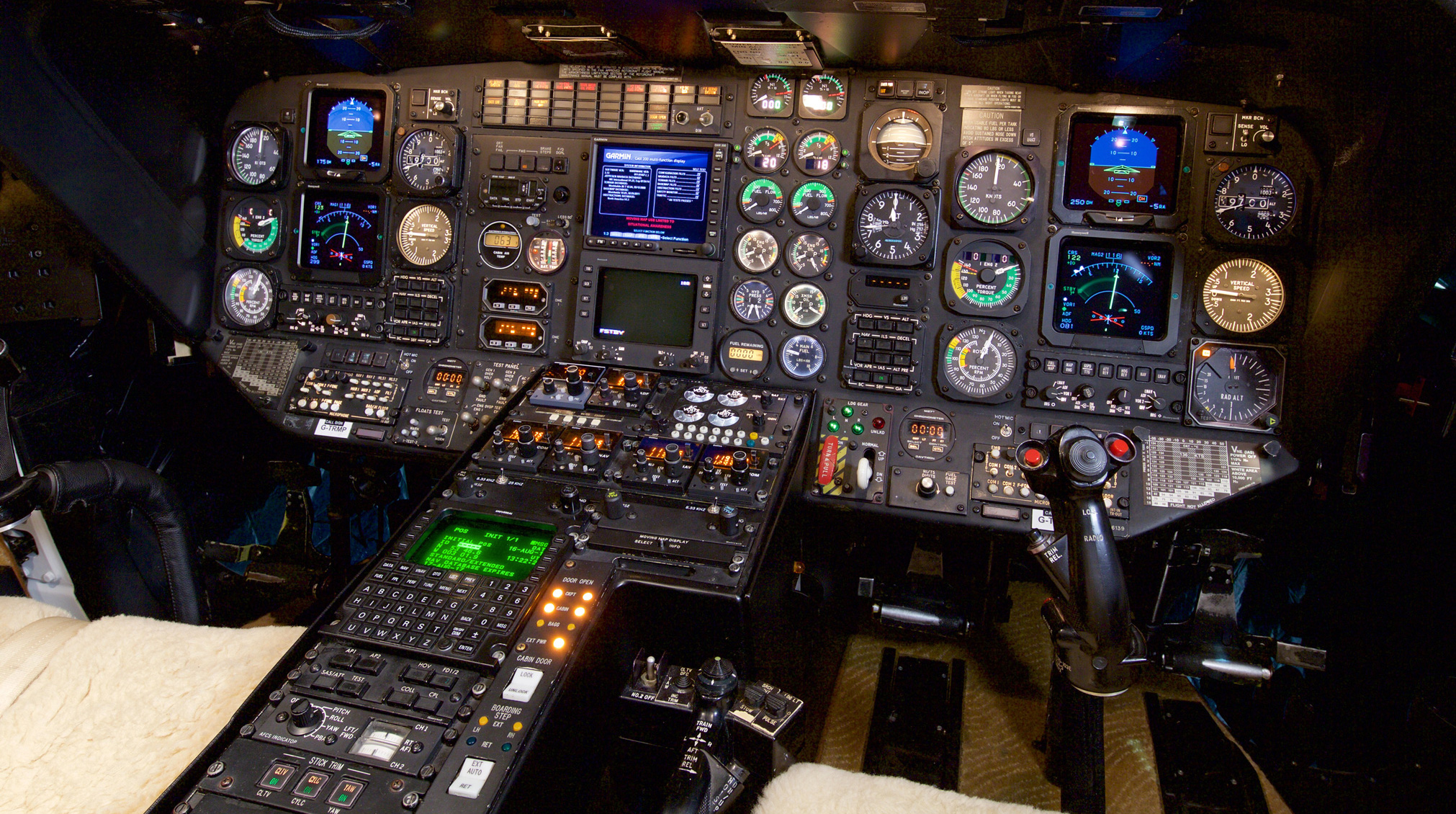

INSTRUMENTS & STABILITY SYSTEMS

  • Honeywell SPZ-7000 Dual Digital Automatic Flight Control System
  • Honeywell EDZ-705 Electronic Flight Instrument System (EFIS)
  • Standby Self-Contained Attitude Indicator (JET ADI-330C) with Battery Backup
  • Dual IDC Encoding Altimeters
  • Pilot-Selectable Alternate Static Source Switches
  • Dual Lighted Approach Plate Holders
  • Dual Garmin Dakota RAM Approach Plate Holders
  • Dual Overhead Master Switch Panels
  • Radio Master Switches
  • Radio Altimeter (Collins ALT-55B) with Digital Display on EFIS
  • Dual C-14A Compass System (Honeywell)
  • Standby Vertical-Card Magnetic Compass
  • Dual Digital Clocks (Davtron M-877)
  • Fuel Flow Indicator
  • Single Pilot IFR Standby CDI/ICS For Single Pilot IFR Operations

EXTERIOR

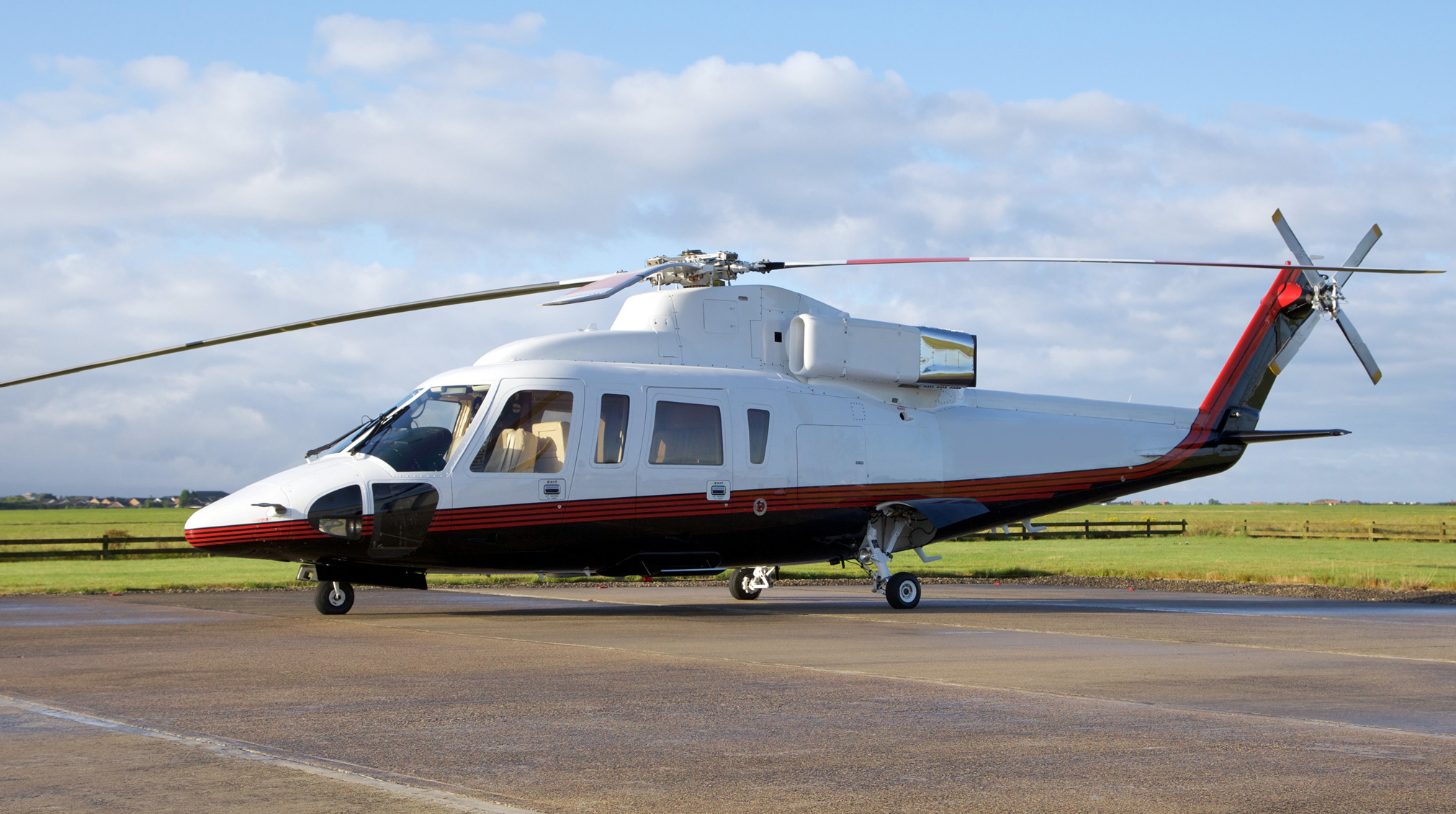

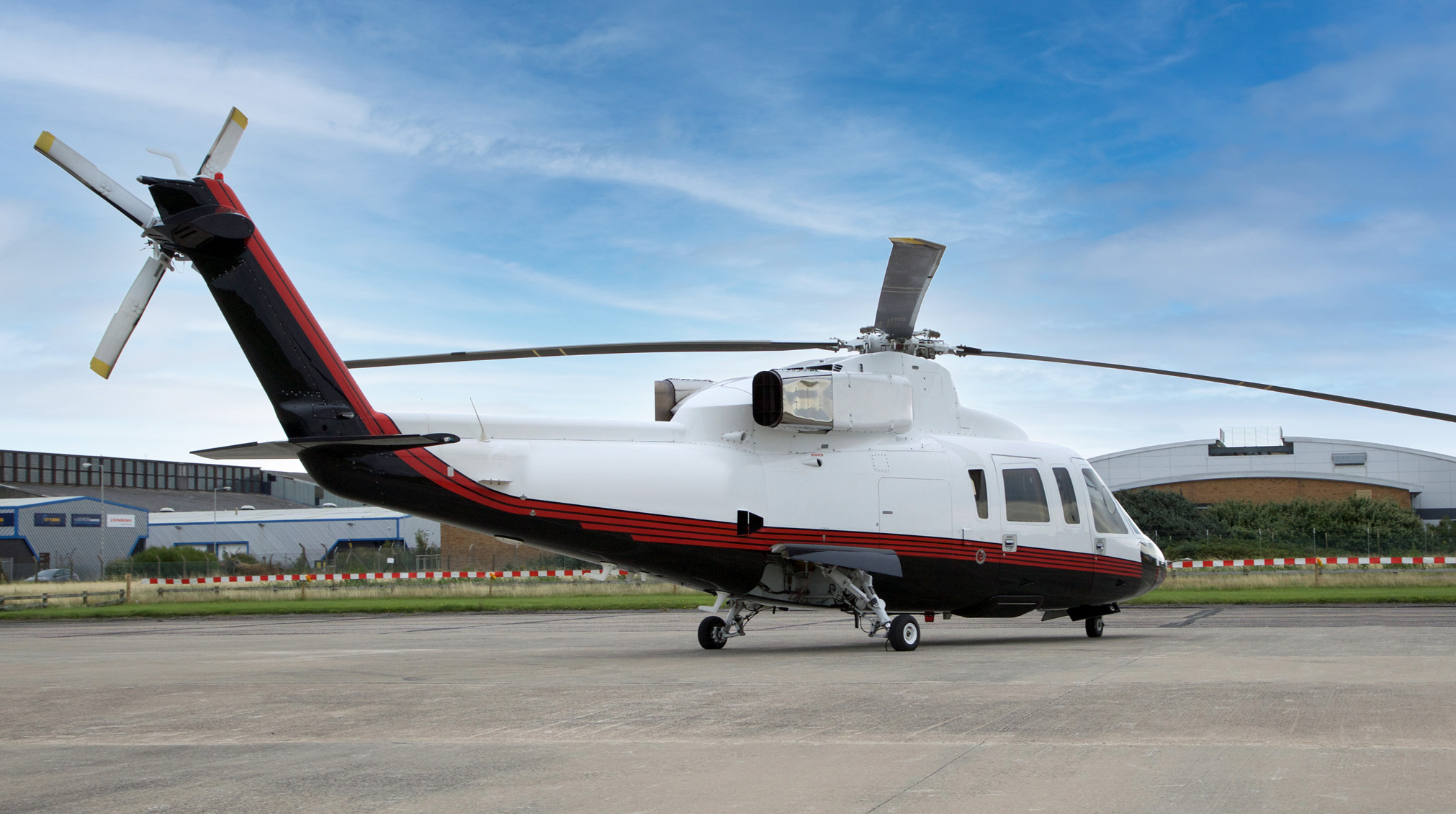

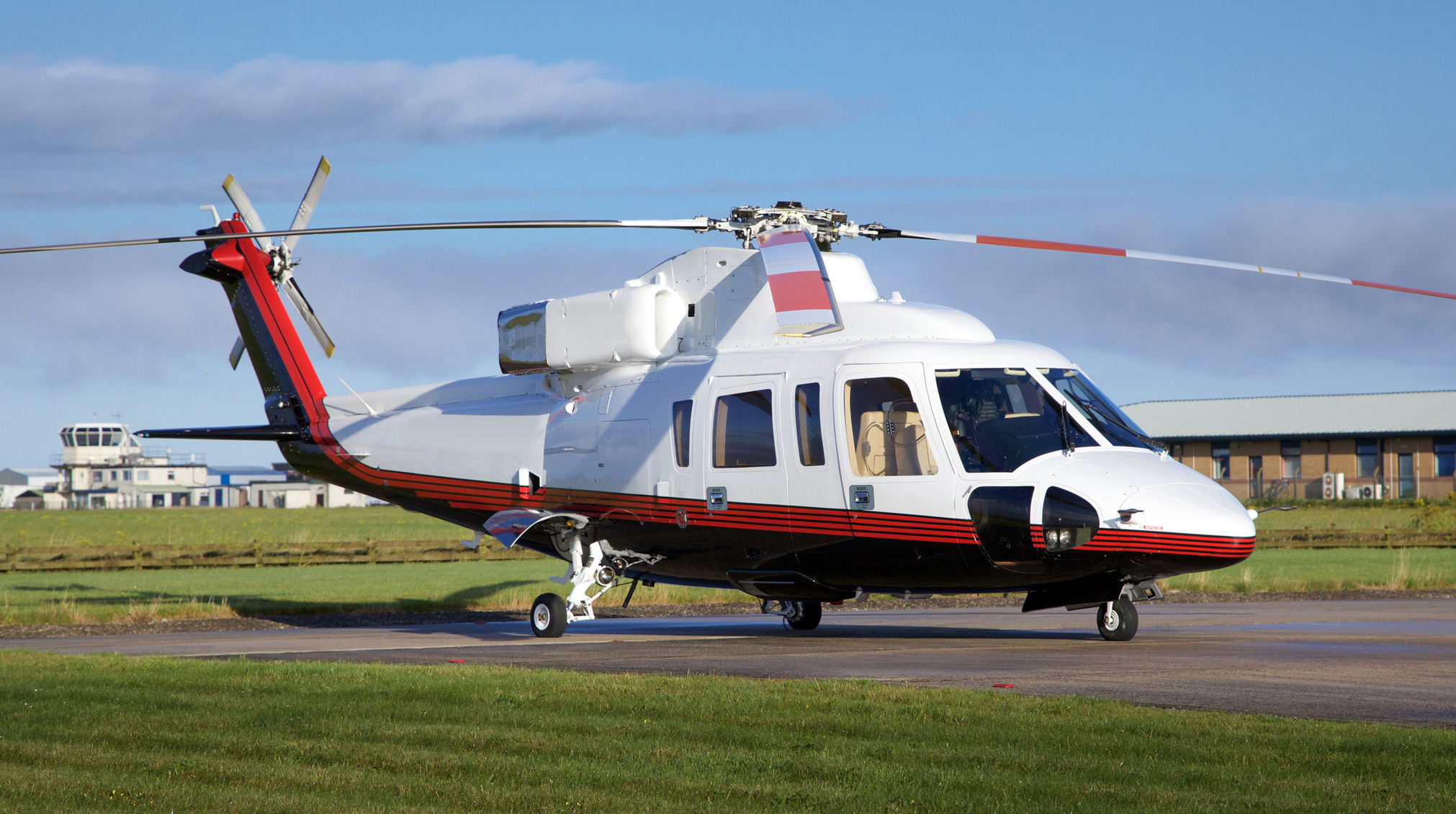

  • Overall White Upper & Black Lower with Black & Red Pin Striping Chin Line

INTERIOR

  • Complete Refurbishment – November 2012

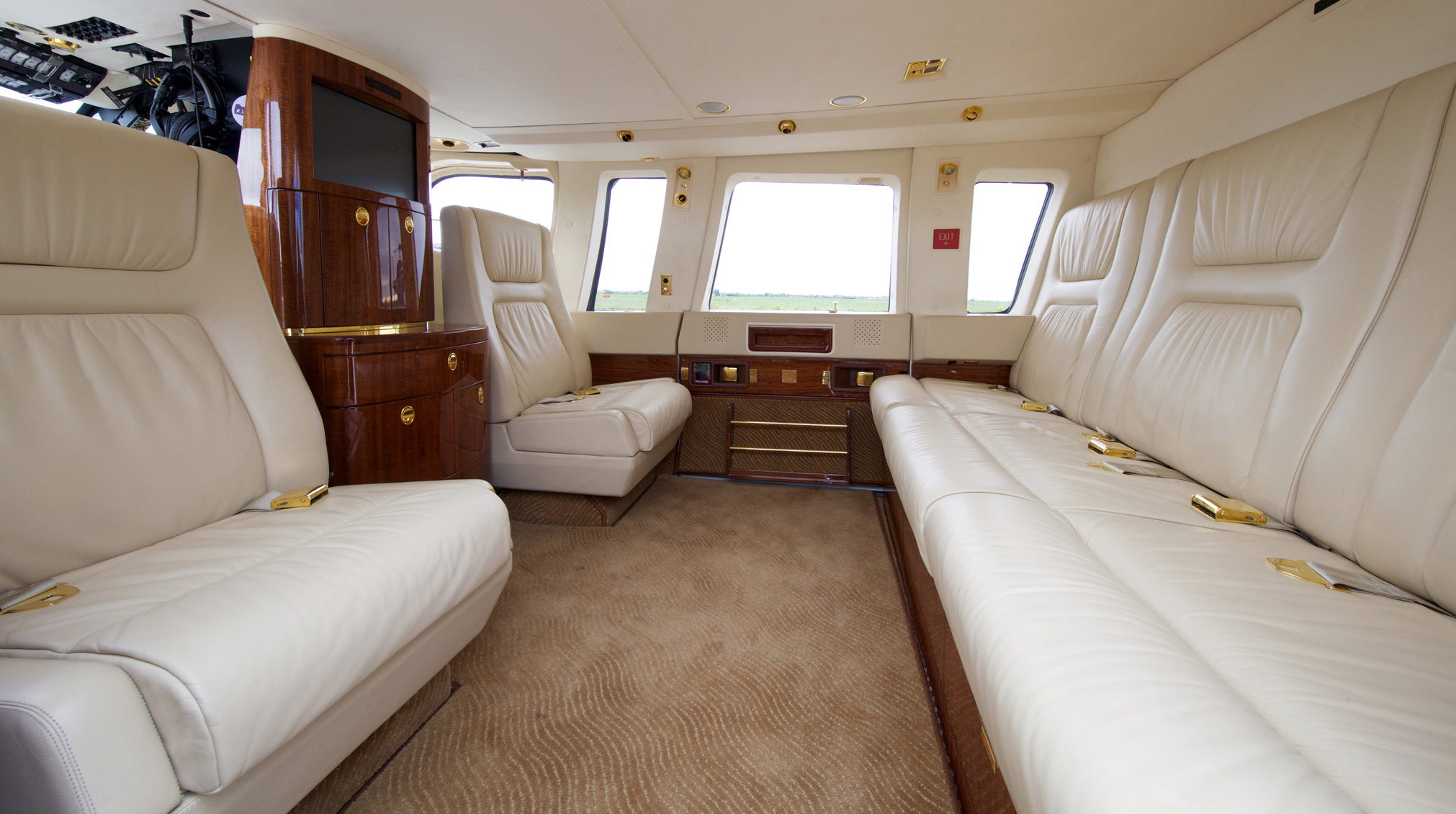

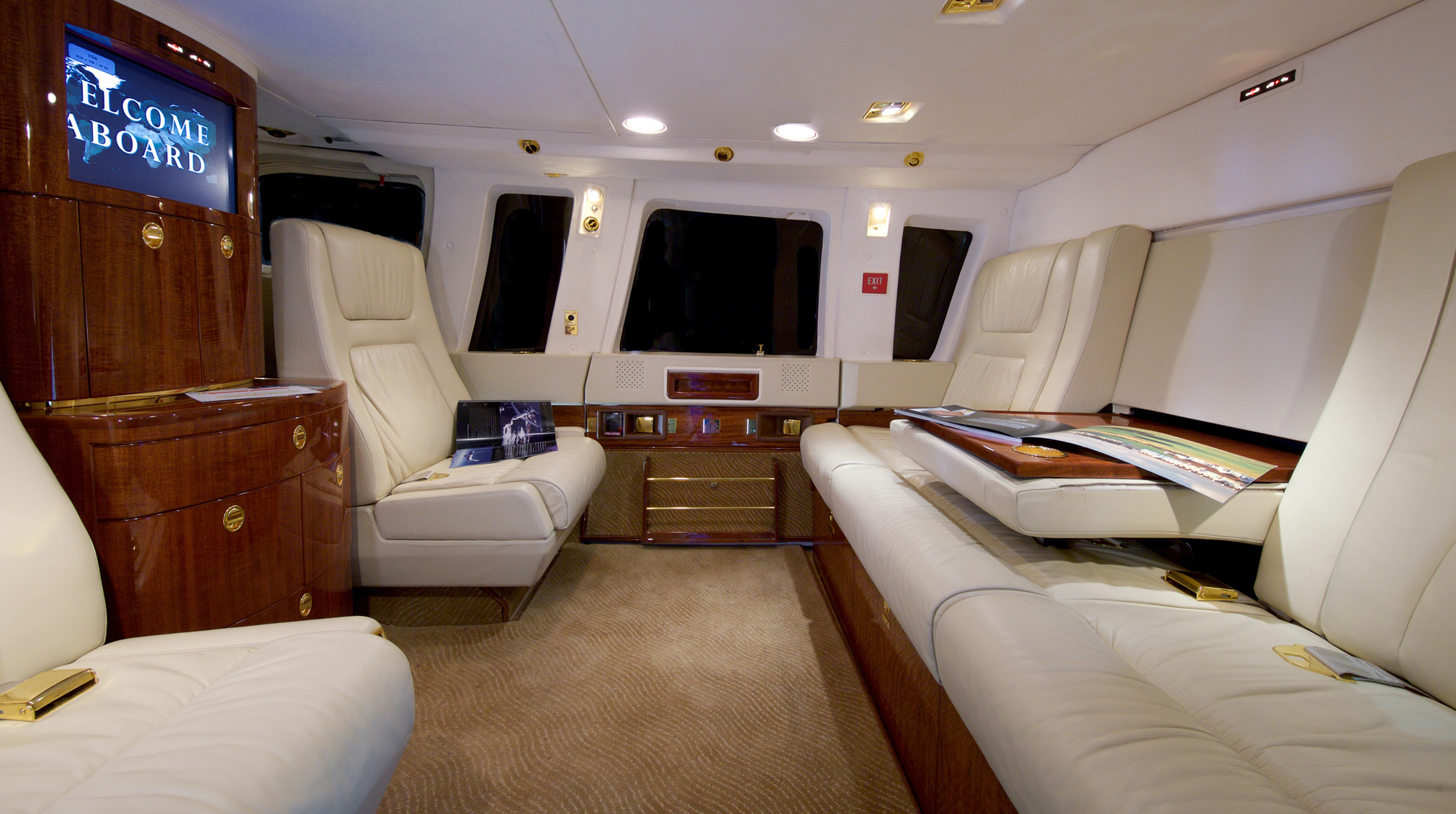

  • Six-Place Executive Cabin Interior with Panelling & Soundproofing System
  • Upholstered rear bolster, overhead emergency lighting

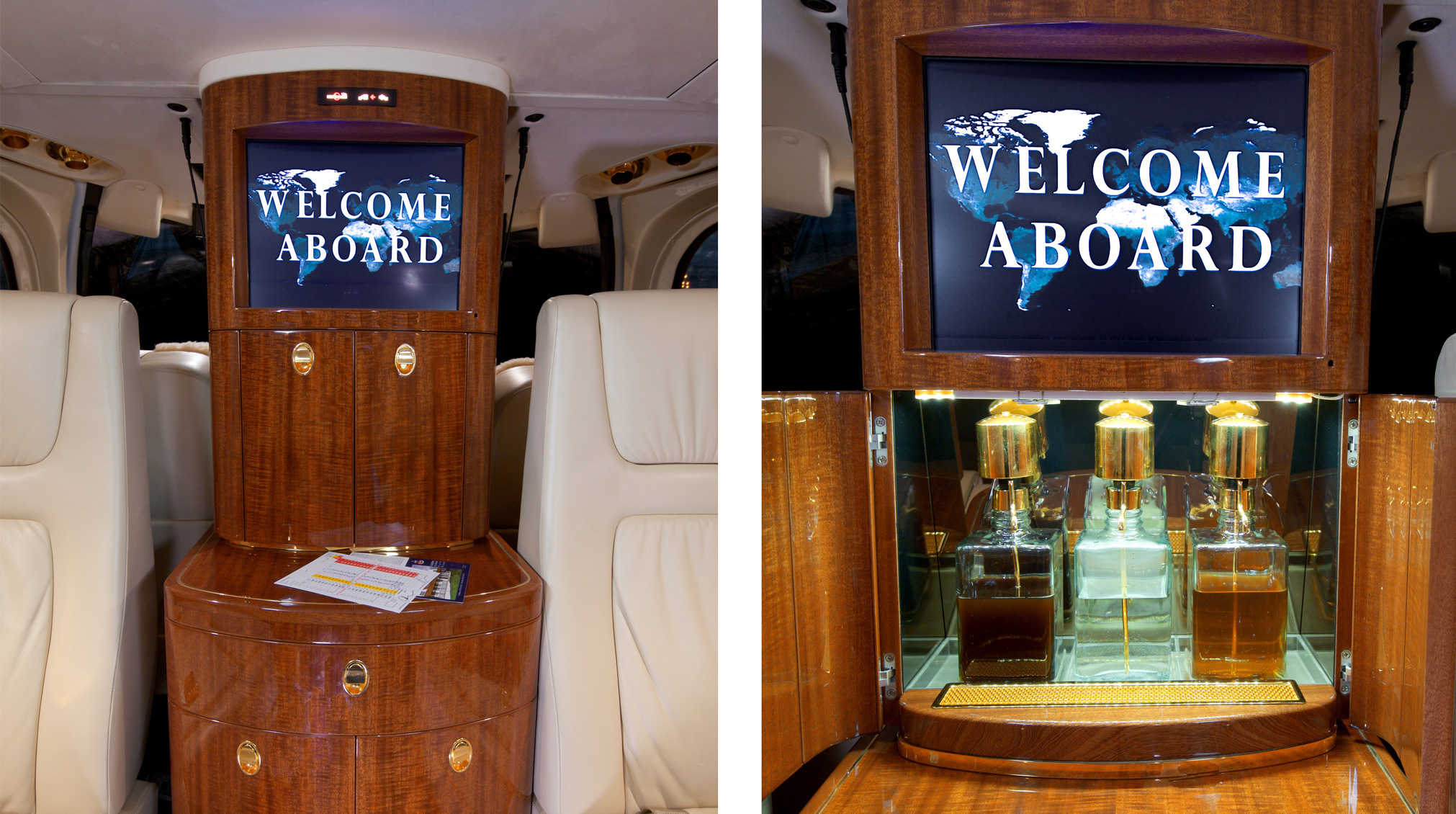

  • Floor to ceiling credenza unit in African mahogany veneer with lower zone - 4 refreshment, condiment & ice storage drawers
  • Central zone drinks cabinet with 3 decanters
  • Upper zone accommodates Airshow Screen

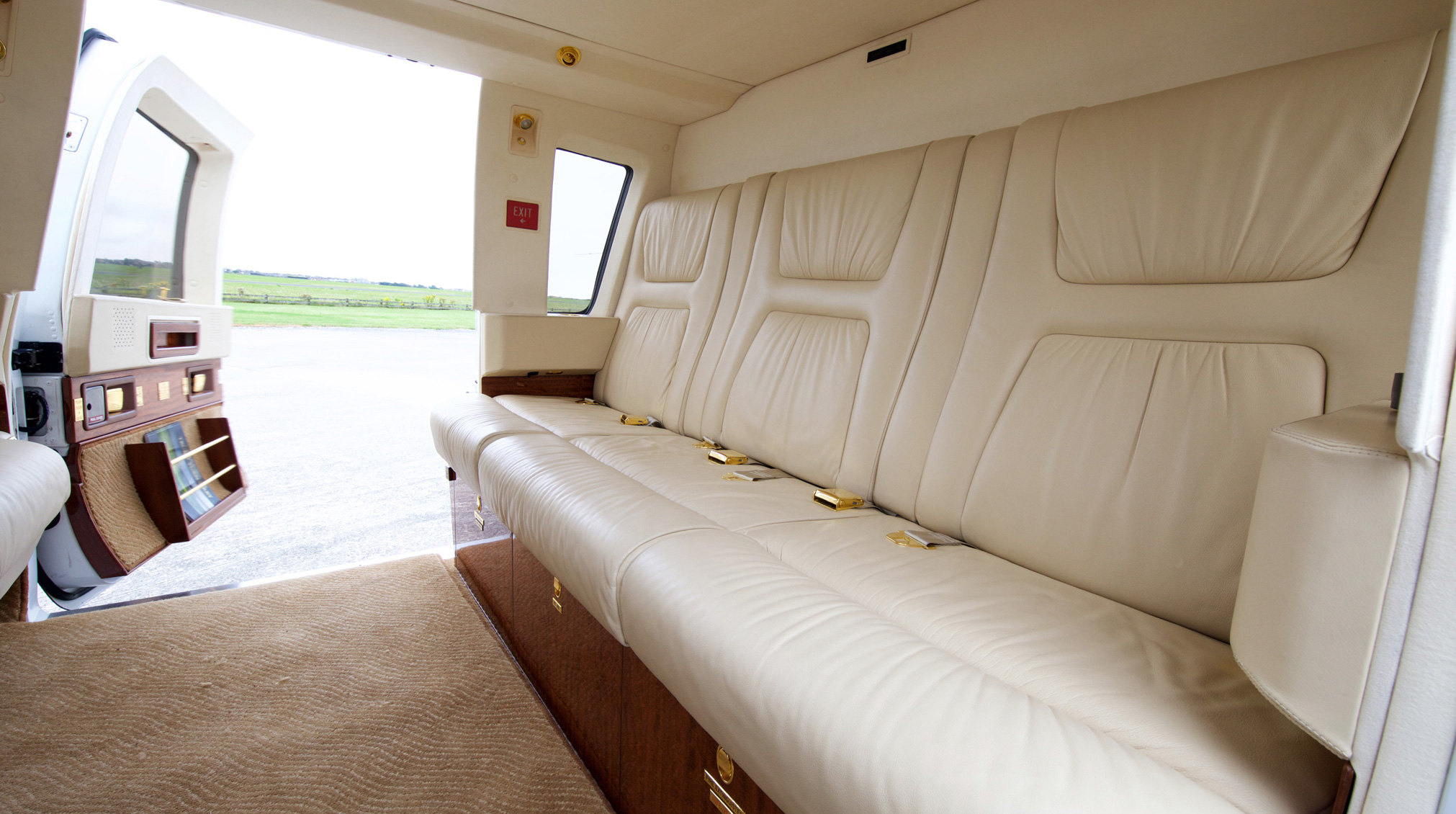

  • 3-4 Place forward-facing executive divan in Ecru/Almond Leather & African mahogany veneered fold-down table featuring dual cup holders and Ecru/Almond Leather armrests

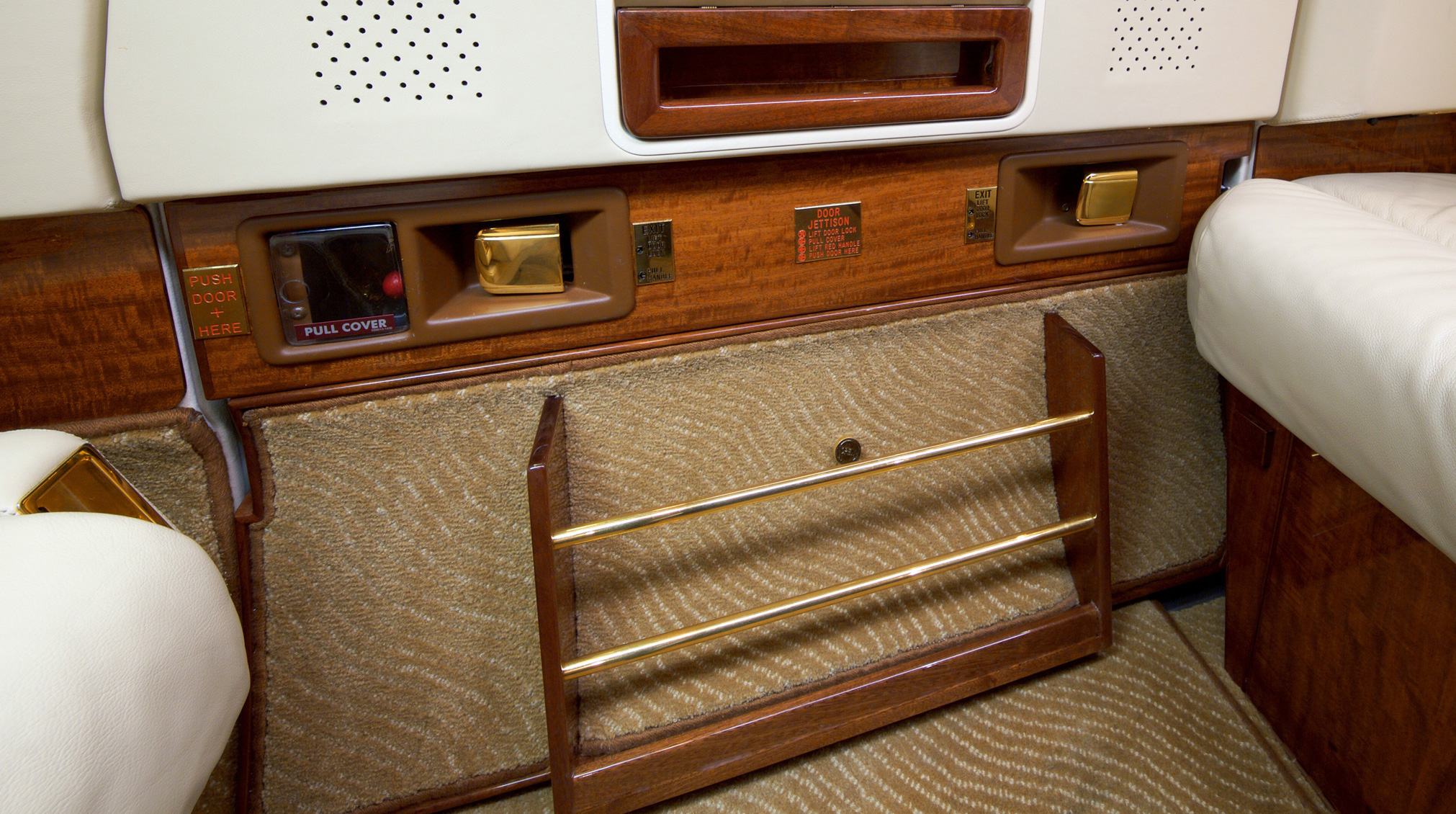

  • Rear divan seat bottom extension with 3 compartments for miscellaneous storage in African Mahogany Veneer

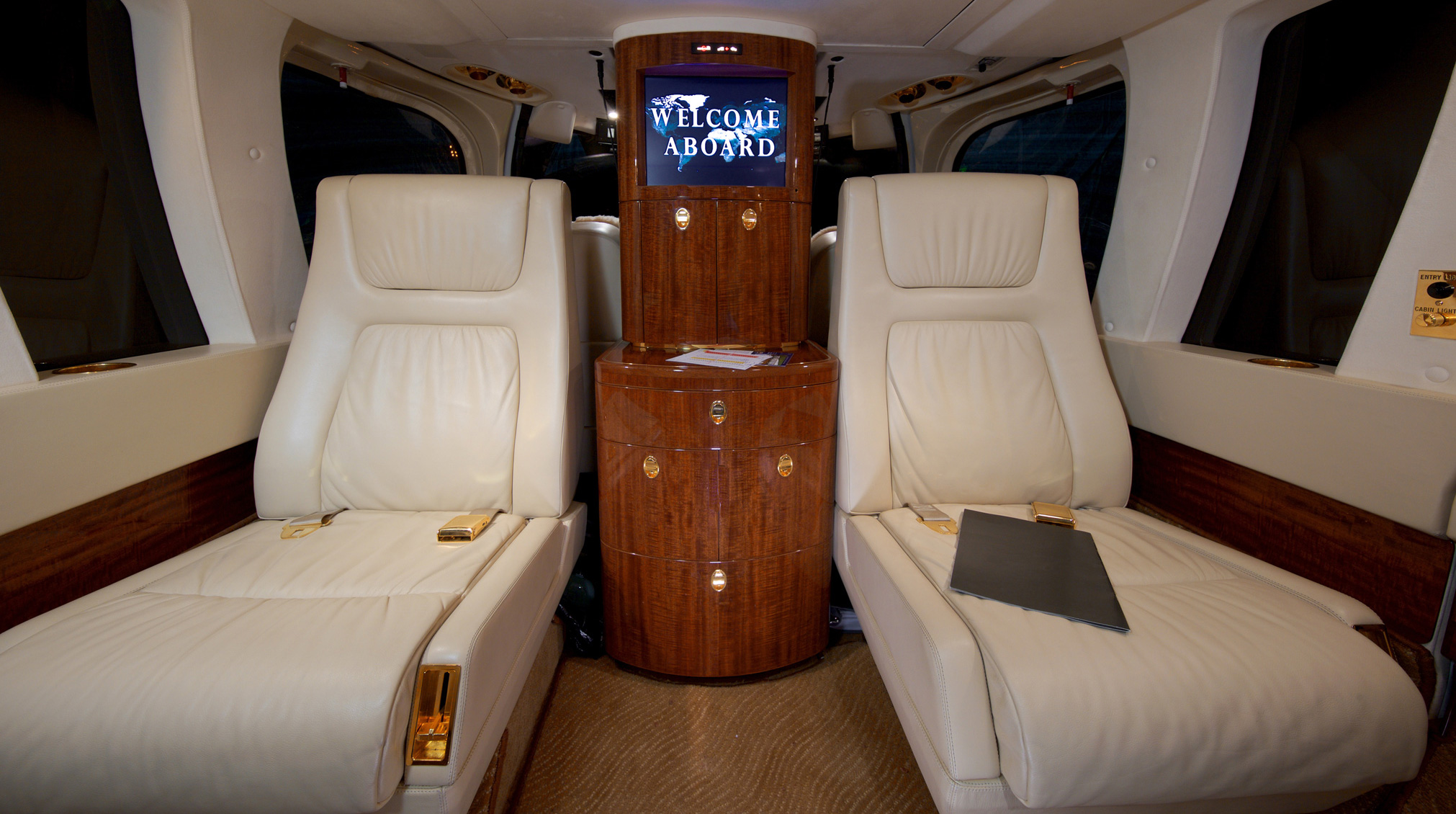

  • Two (2) Aft-facing Reclining Captain’s Chairs in Ecru/Almond Leather with Tracking & Swivel Function
  • Cabin Door Magazine Rack (R/H Door Only)
  • Cabin Seats covered in Ecru/Almond Leather with Gold Seatbelt Fittings
  • Headliner & Window Panels in Cream Ultraleather
  • Cabin Doors in Ecru/Almond leather with African Mahogany Panelling and Gold Fittings
  • Scott Groups Custom Dual Tan Saint John Carpet
