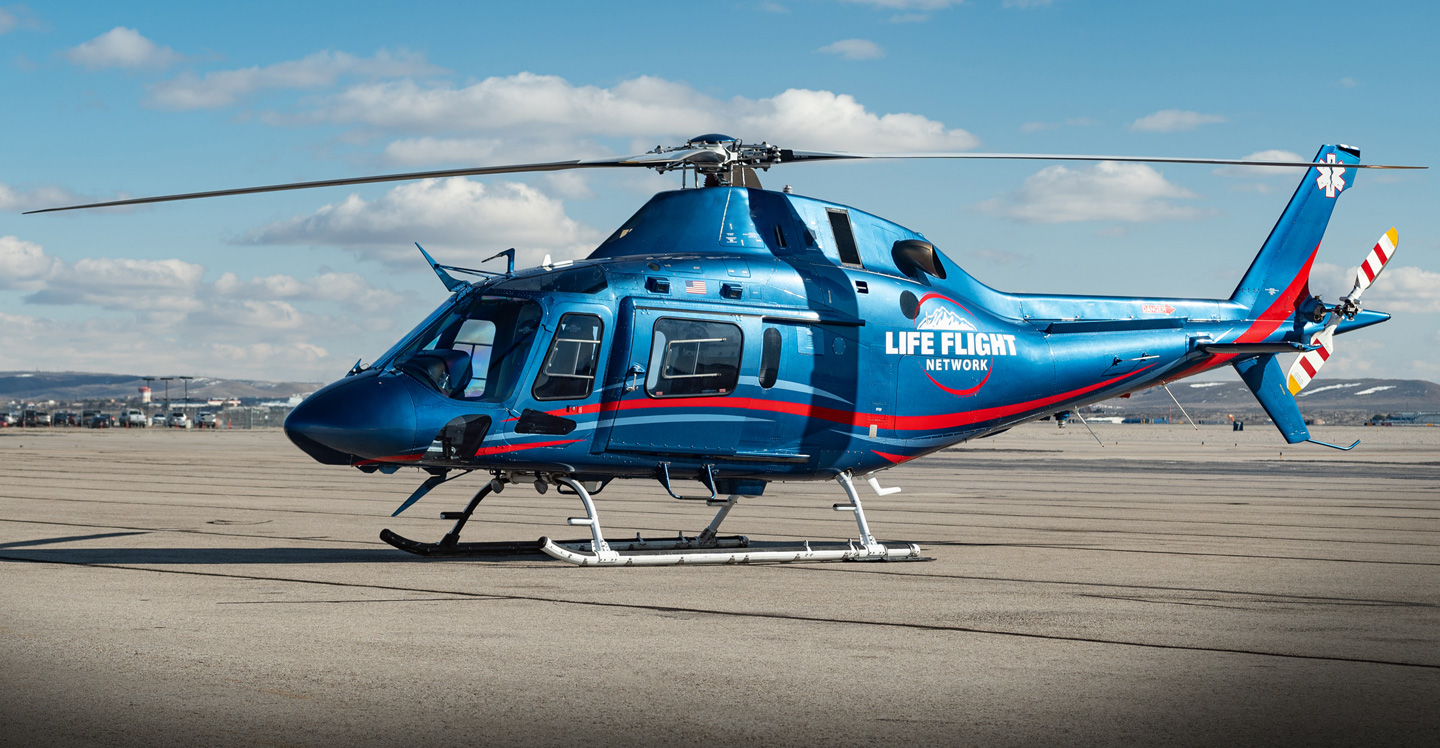

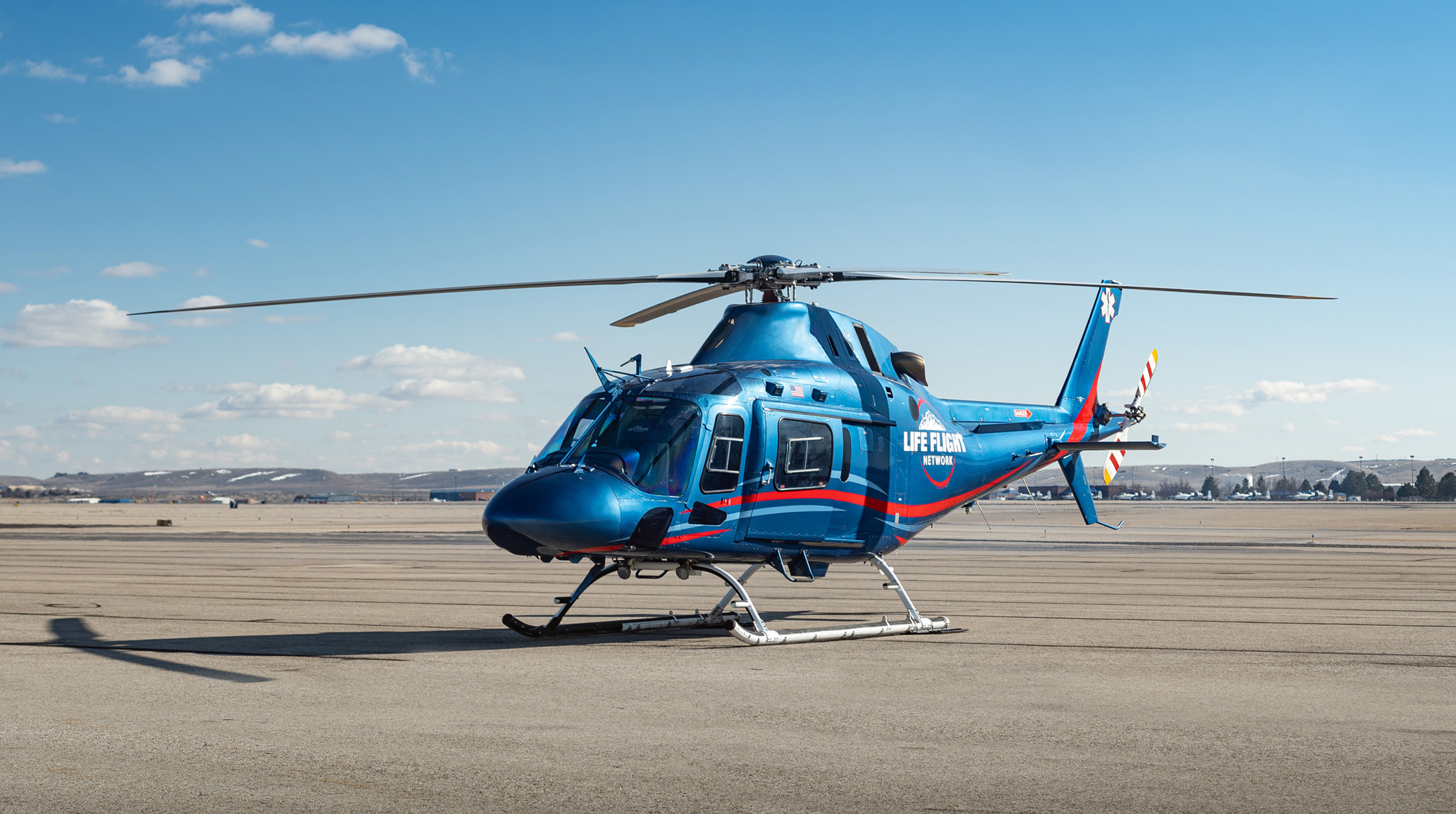

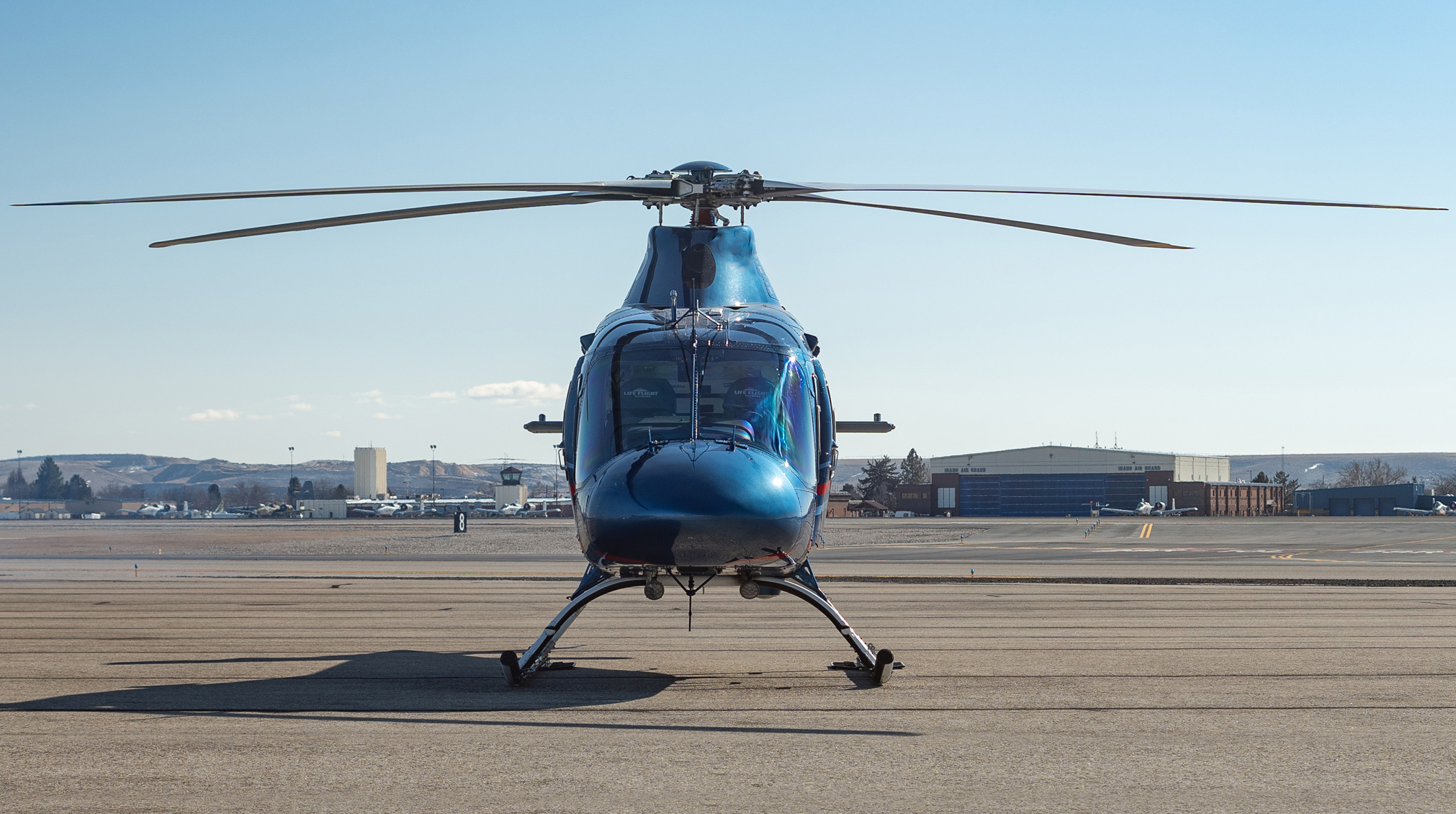

2013 Leonardo A119Kx

Details

STANDARD EQUIPMENT

• 27 Ah battery (in lieu of 22 Ah battery)
• Active Noise Reduction (ANR) headsets (pilot and co-pilot) Baggage compartment lights
• Crew open door actuators
• First aid kit
• Fuel drain electrical valves
• Portable fire extinguisher
• Quick disconnecting chip detectors
• Shoulder harness with inertial reels (pilot and co-pilot)
• Tail boom strake

VFR AVIONIC PACKAGE

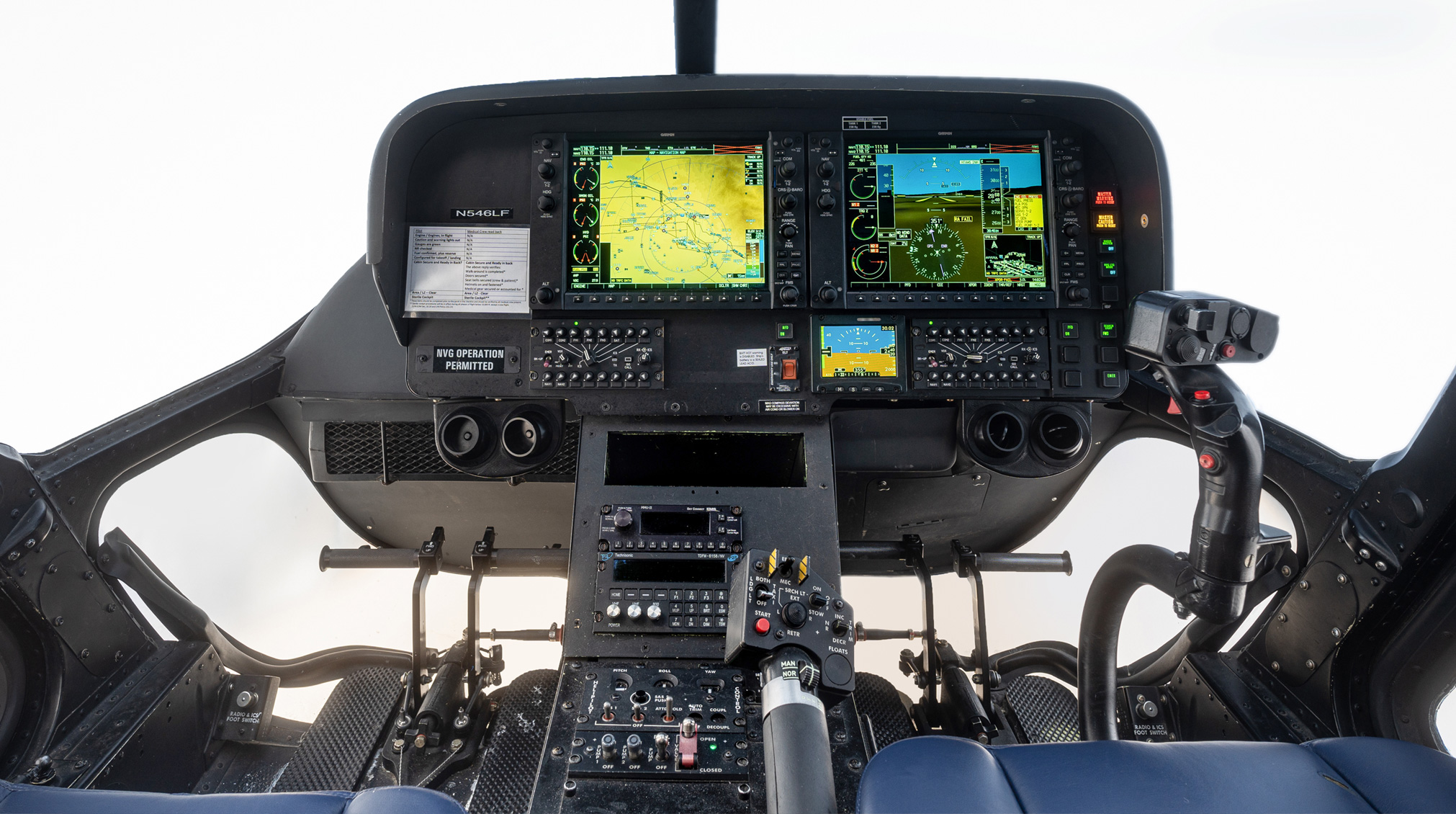

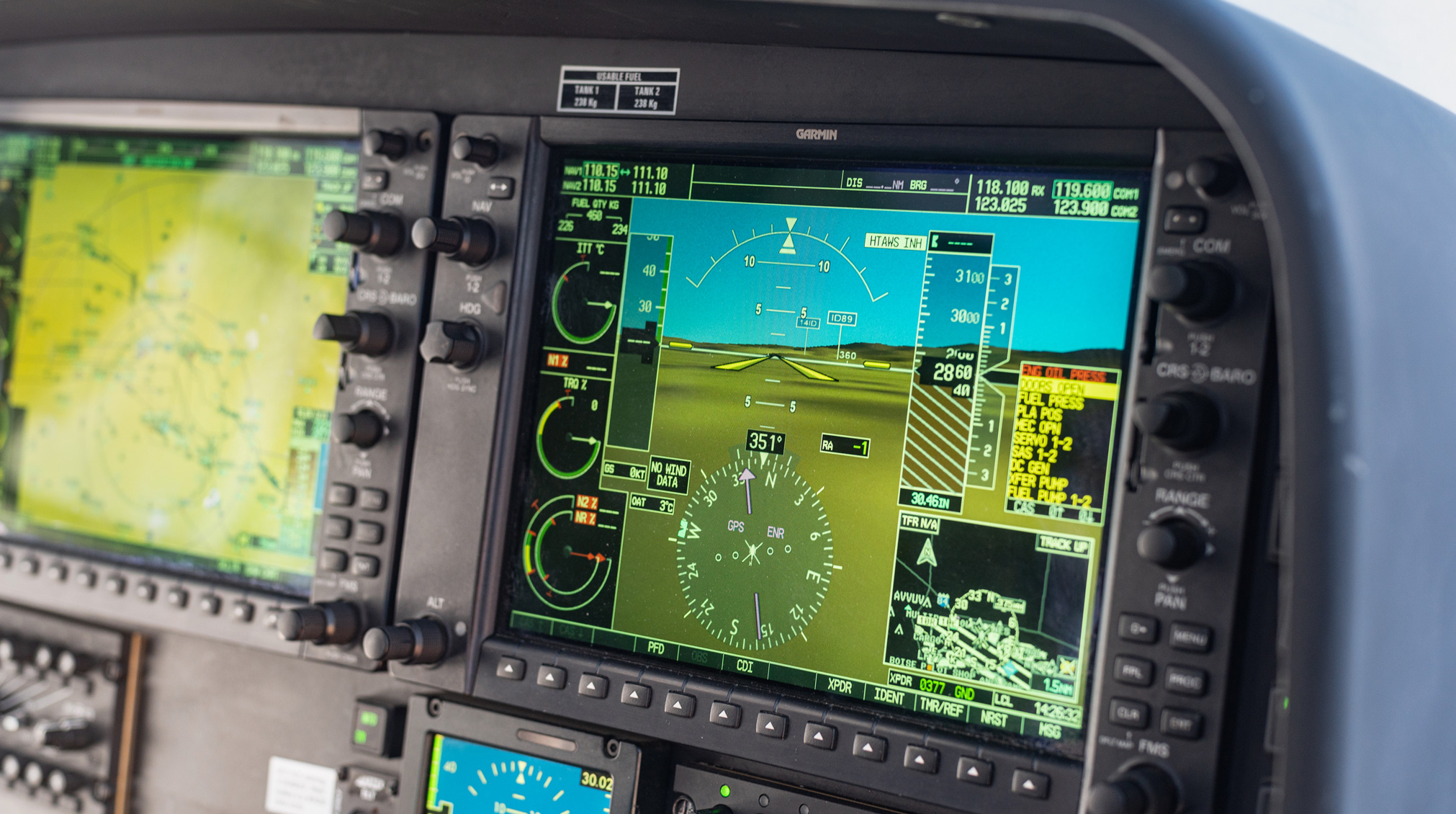

• Garmin G1 000H System:
• Display G1000H Panel LH and RH • Engine/Airframe 1/0 GEA71 H
• Signal Conditioner GSC46
• Integrated Avionics Unit GIA63H • AHRS GRS77H
• AHRS Magnetometer GMU44 • Air Data Unit GDC74H
• TAS GTSBOO
• Transponder GTX33H

ADDITIONAL EQUIPMENT

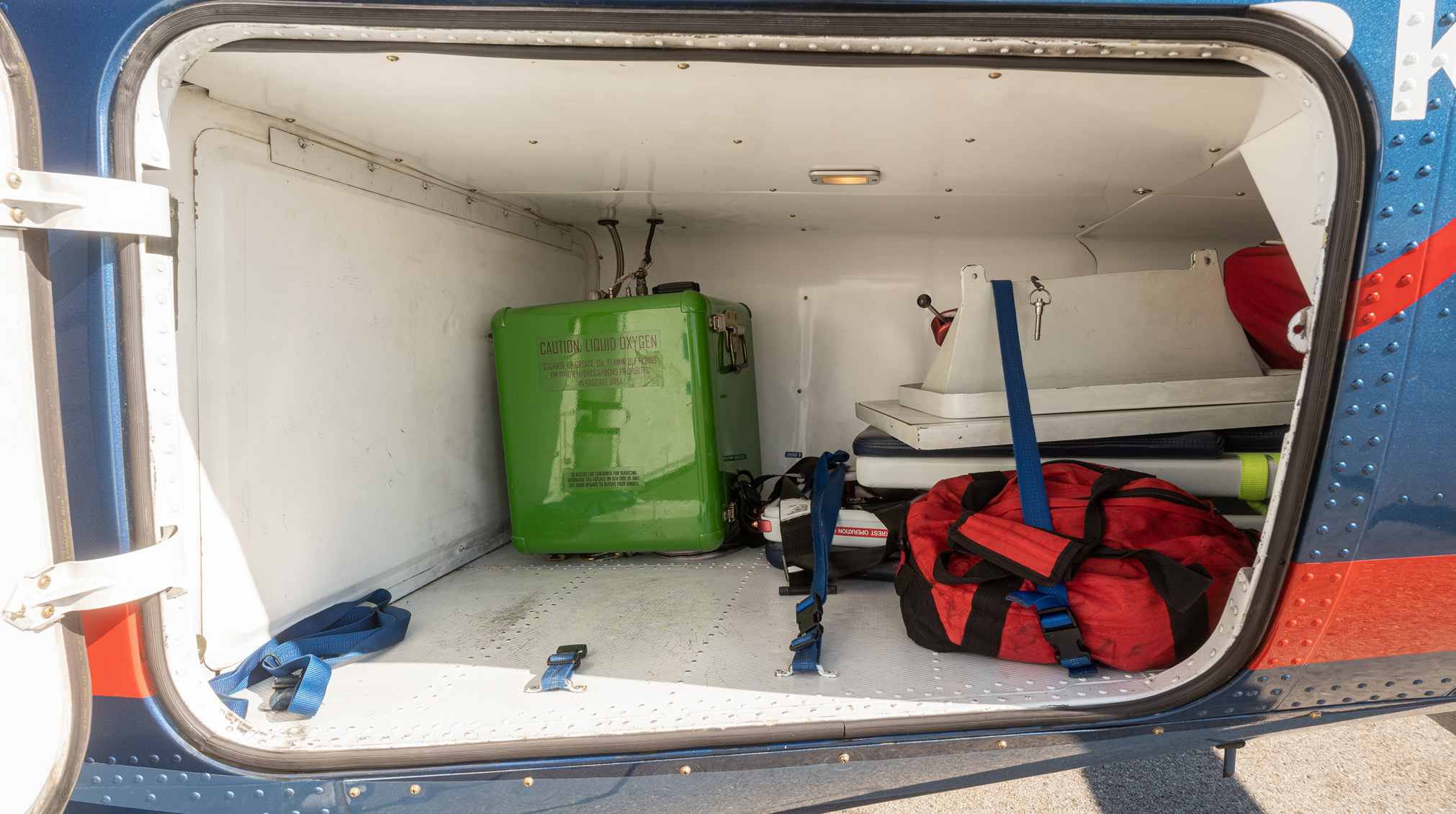

• Baggage compartment extension (1.9 m)
• Reinforced windshield (pilot and co-pilot)
• Rotor brake
• Sliders on cockpit doors windows
• Windshield wipers (pilot and co-pilot) with wiper switch on cyclic grips

ADDITIONAL AVIONIC EQUIPMENT

• AC power supply system (2 inverters)
• NAT Digital ICS
• AFCS 3-axis duplex SP-711 Honeywell

INTERIOR

• Bleed air heater
• Primer finished cabin walls

INTERIOR COMPLETION/MISSION EQUIPMENT

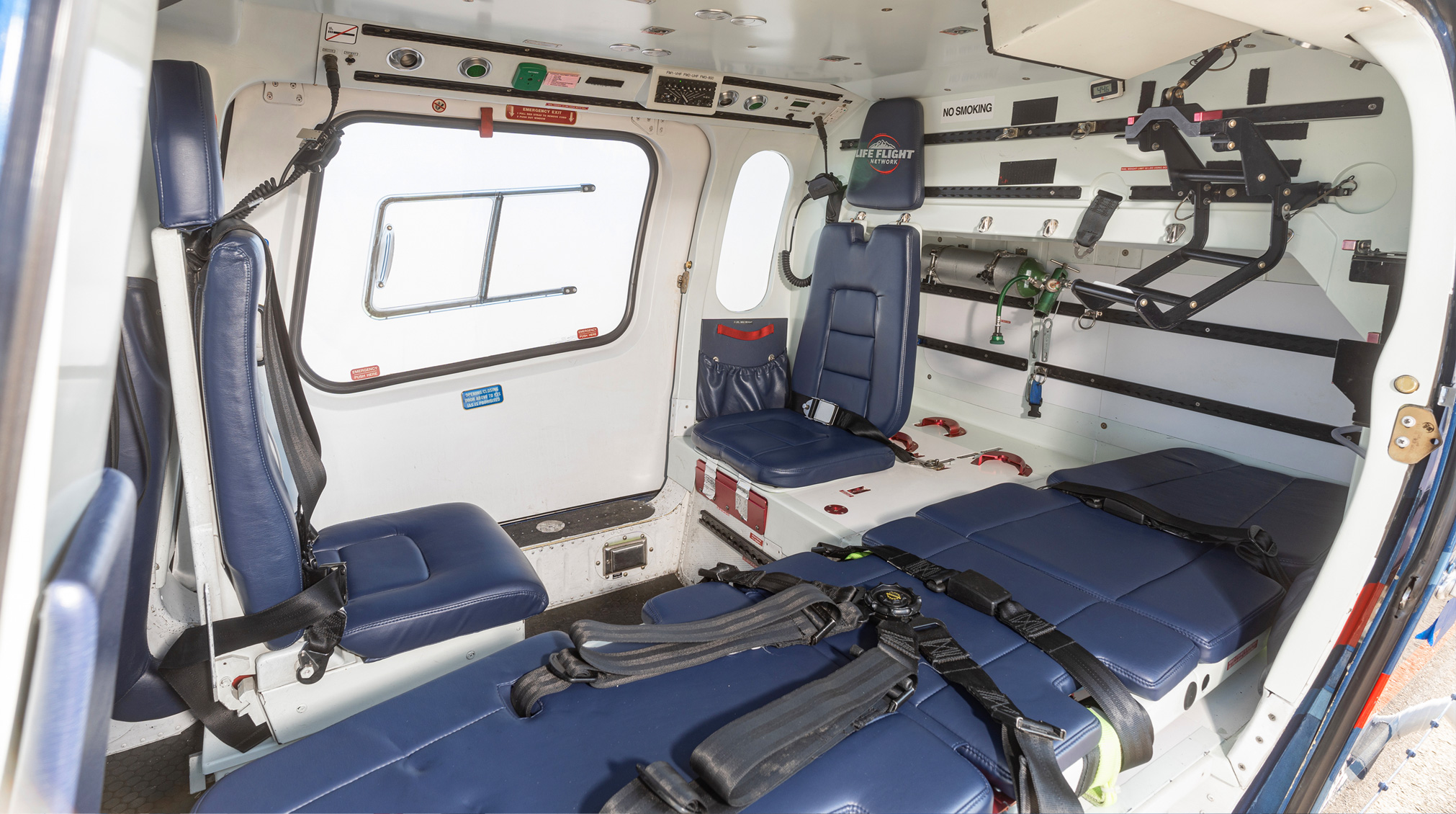

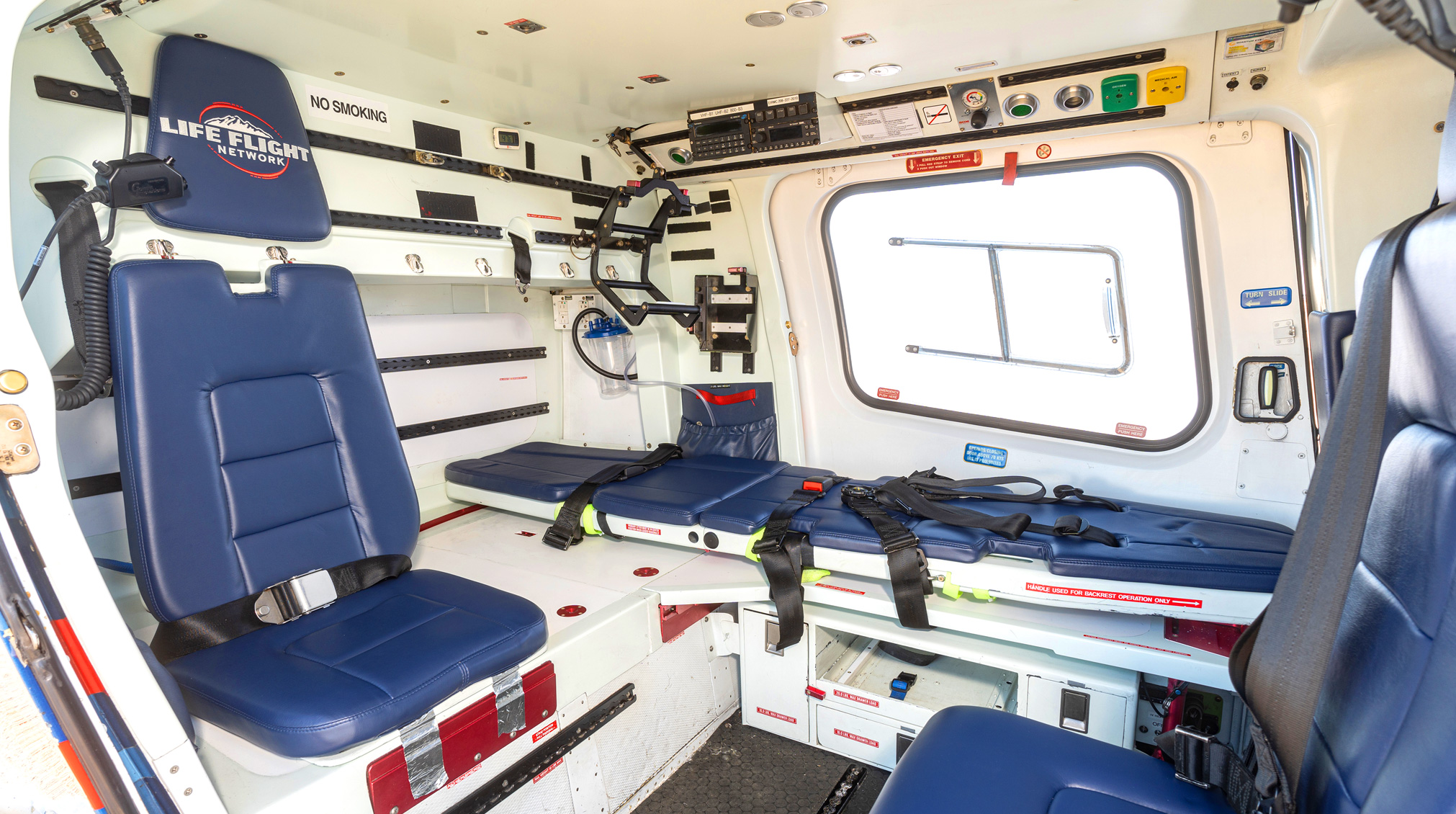

• 1. EMS Interior - Single/Dual Stretcher - Fixed Parts
• Head liner with soundproofing and EMS provisions
• Side liners LH and RH with EMS provisions
• Aft EMS liners with rails
• Bench panels with rear EMS provisions and stretcher rear lock mechanism
• Stretcher platforms provision
• Cargo net provision
• Floor equipped with rails and drains
• EMS electrical system
• 3rd ICS station in passengers cabin
• Sliders on cockpit and cabin doors windows
•
• 2. EMS Interior - Single Stretcher Installation - Removable Parts
• Medical cabinet with oxygen system provisions
• Primary stretcher platform with front lock mechanism - Primary foldable stretcher (Qty 1)
• Interior cargo net
• Seats and stretcher covered with leatherette
• Co-pilot seat that rotates to face aft
•

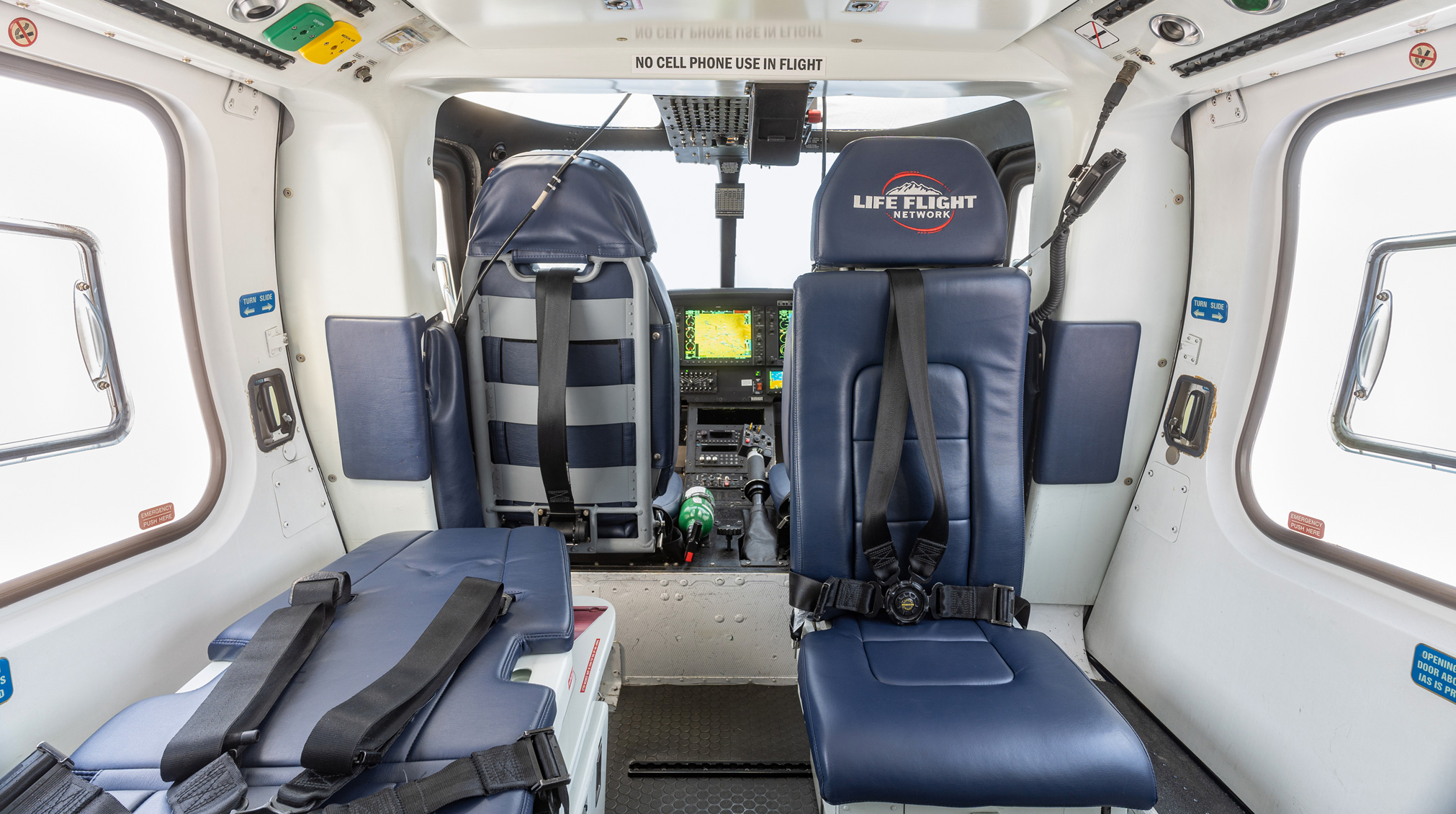

• 3. Aft facing sliding/rotating seat
• Foldable fwd facing seats with headrests (Qty 2)
• 3-point shoulder harness with inertial reels and black colored safety belts for all passenger seats
• Special rubber floor carpet
•
• LIFE FLIGHT NETWORK SPECIFIC AVIONICS UPGRADE
• 1. New Instrument Panel
• 2. G1000H Synthetic Vision Cards
• 3. Radar Altimeter
• 4. XM Weather
• 5. GTX 330
• 6. TCAS (TAS compatible with G1000)
• 7. FM (TDFM 6158) with control heads in cockpit and cabin (LH Cabin)
• 8. SkyConnect with MMU in cockpit and cabin
• a. MMUII in cockpit voice only-slant console
• b. MMUII in cabin voice and text-LH Valance 9. EL T C406-2HM

OTHER OPTIONAL EQUIPMENT

• NVG Conversion Package
• 2. Super Night Scanner Searchlight
• 3. LED Loading Lights (2 per side)
• 4. LED Pulsed Landing Lights
• a. Non Pulsed
• b. Pulsed Together
• c. Pulsed when TAS outputs Traffic alert to help alert presence in traffic.

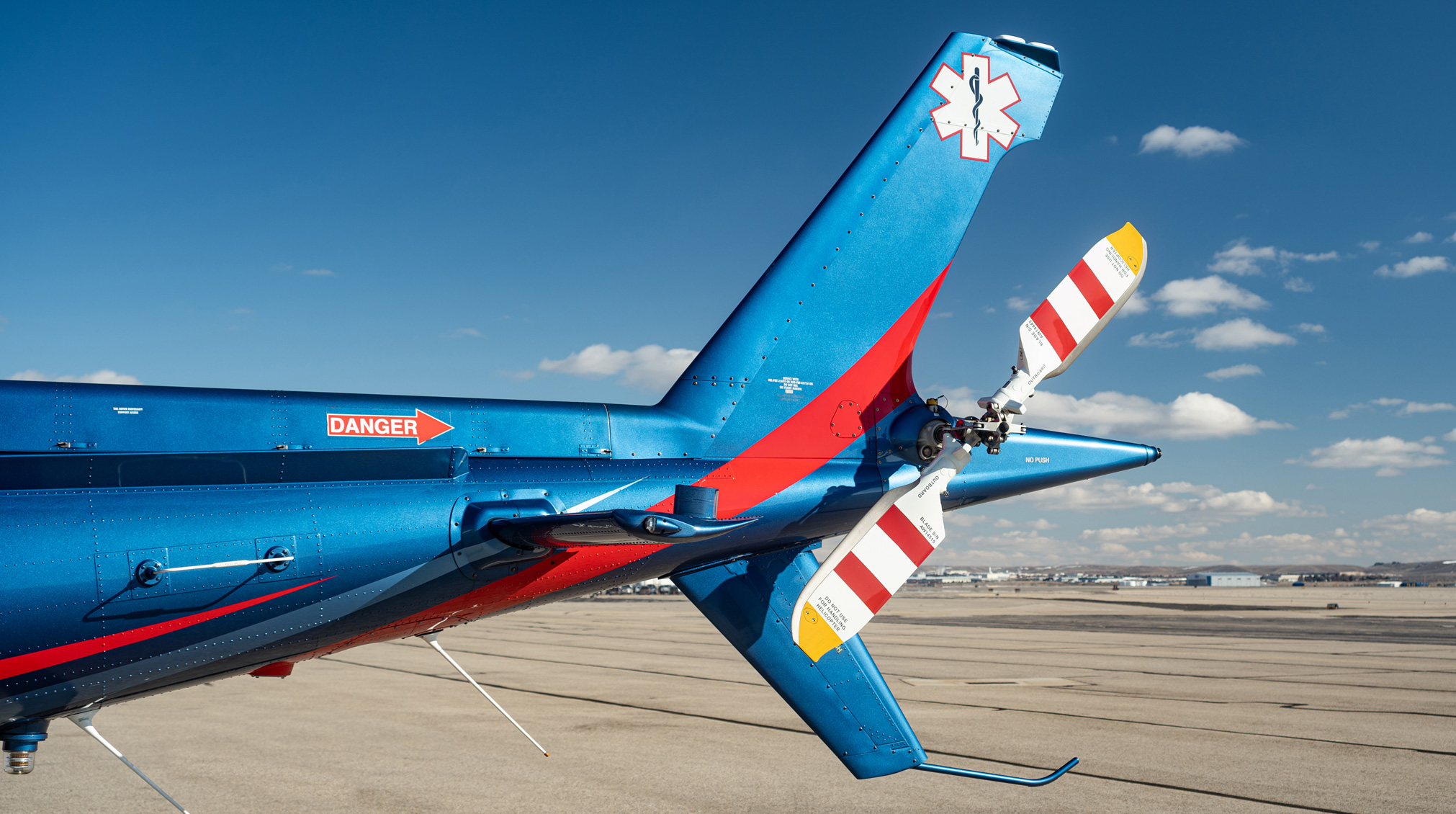

• 5. LED Tail Rotor Lights (Tel Tail Lights)
• 6. LED Navigation Lights
• 7. LED Beacon LOX System (In Lieu of Gaseous Oxygen System)

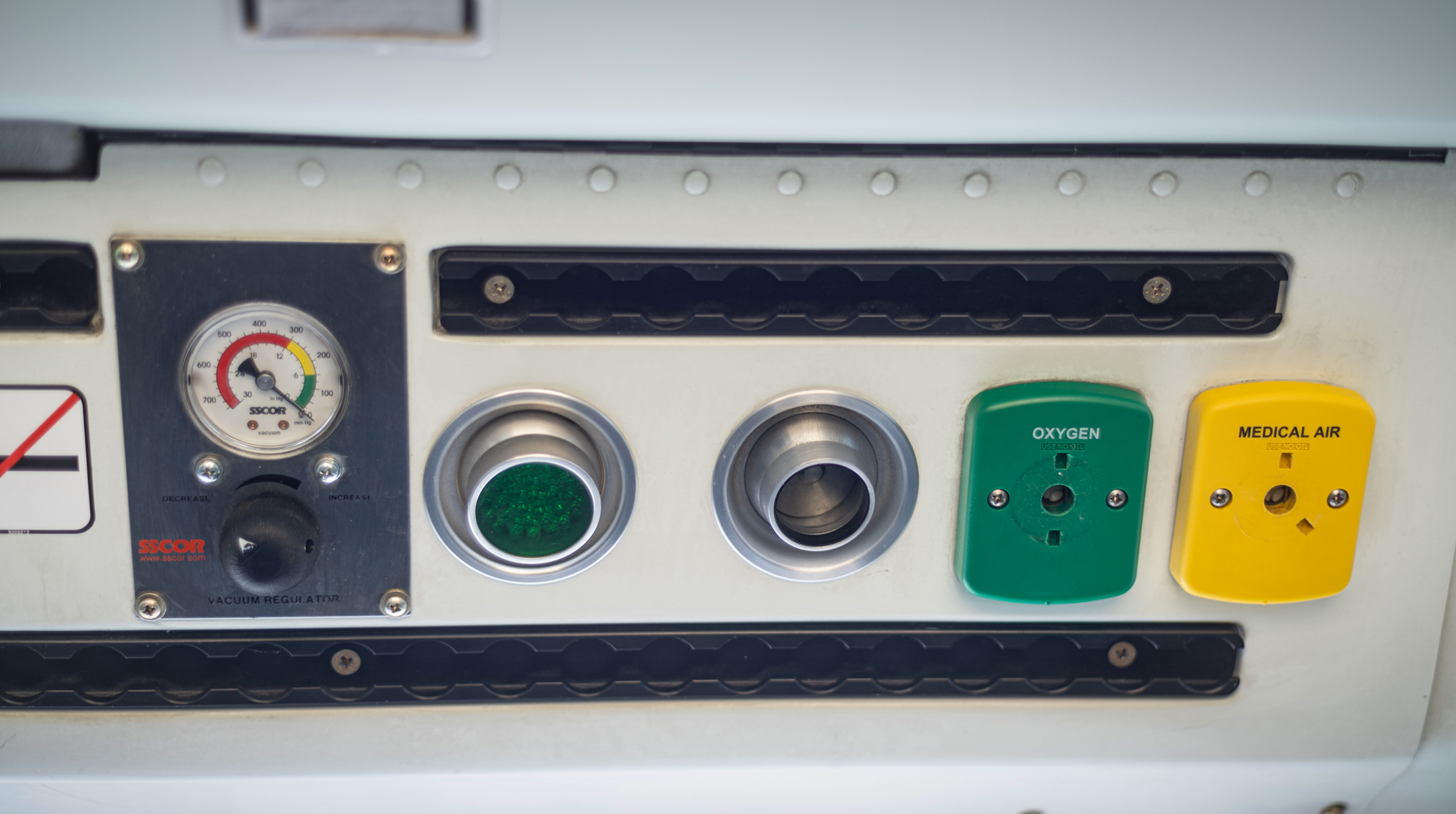

• a. Air outlet LH Valance
• b. Lox Outlet 55PSI min LH and RH Valance
• c. Lox Gauge -RH Valance -momentary read with power off/permanent read with power on
• d. Lox Regulator LH Valance
• 9. 2nd LOX Bottle
• 10. Tanis Heater (M/R G/B, T/R G/B, Engine, and Hydraulic Tank)
• 11. Lead Acid Battery
• 12. Wire Strike Protection System
• 13. Tail Rotor Pedal Lockout
• 14. Tail Rotor Pedal Extension
• 15. Inlet Barrier Filter
• 16. Pulsed Chip Detectors
• 17. Air System
• 18. Suction System (Suction regulator LH Valance)
• 19. Medical Mount Propaq Zoll MD -Rear Roof LH Corner
• 20. Medical Mount Care Fusion L TV1200 -Installation on slide out center of litter base with reinforced base and footman loops to secure.
• 21. Medical Mount Mini-Med Pump-Cabin LH side above window on brownline and not Parrot Pole.
• 22. Isolette Deck -with Mount for D Cylinder
• 23. IV Warmer
• 24. IV Hooks
• 25. Oxygen Bottle Mount (in Cabin) -Mount for "02" portable "D" -Cabin rear RH side behind fwd facing seat (in tunnel)
• 26. Locking Fuel Cap
• 27. Second Stretcher
• 28. Air Conditioner (Air Comm Corporation with dual evaporators)
• 29. Bear Paws with wear plate kit
• 30. Pouches
• 31. Life Flight Network Logo on Cockpit and Cabin Headrests.
• 32. Retractable Landing Light 450W
• 33. Additional Brownline
• a. Under fwd edge of bulkhead below fwd facing seats
• b. Two rails in tunnel area
• 34. Shoreline Power
• a. Connections for
• i. Tannis Heater
• ii. EMS Sockets
• iii. Cabin Ground Socket (i.e. heater) 35. iPad Pocket/Map Pocket
