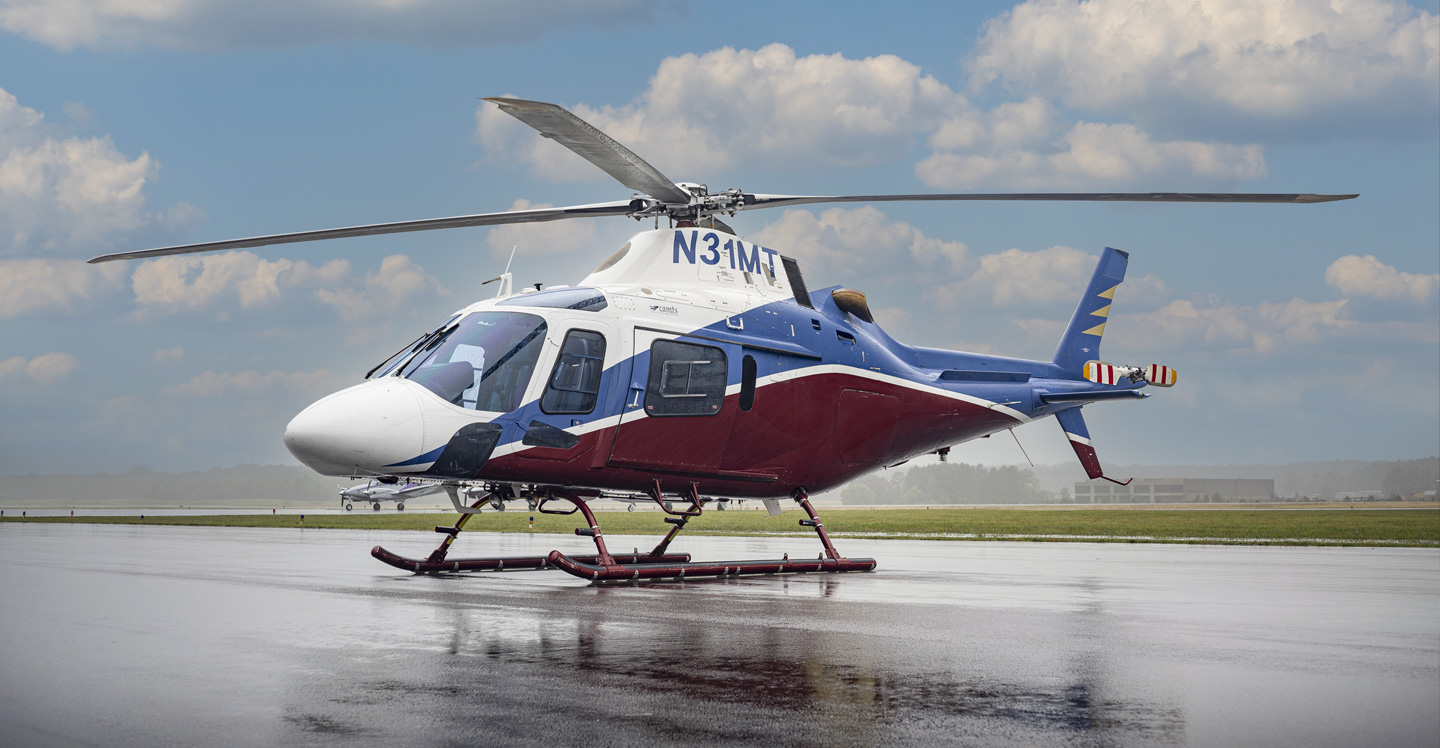

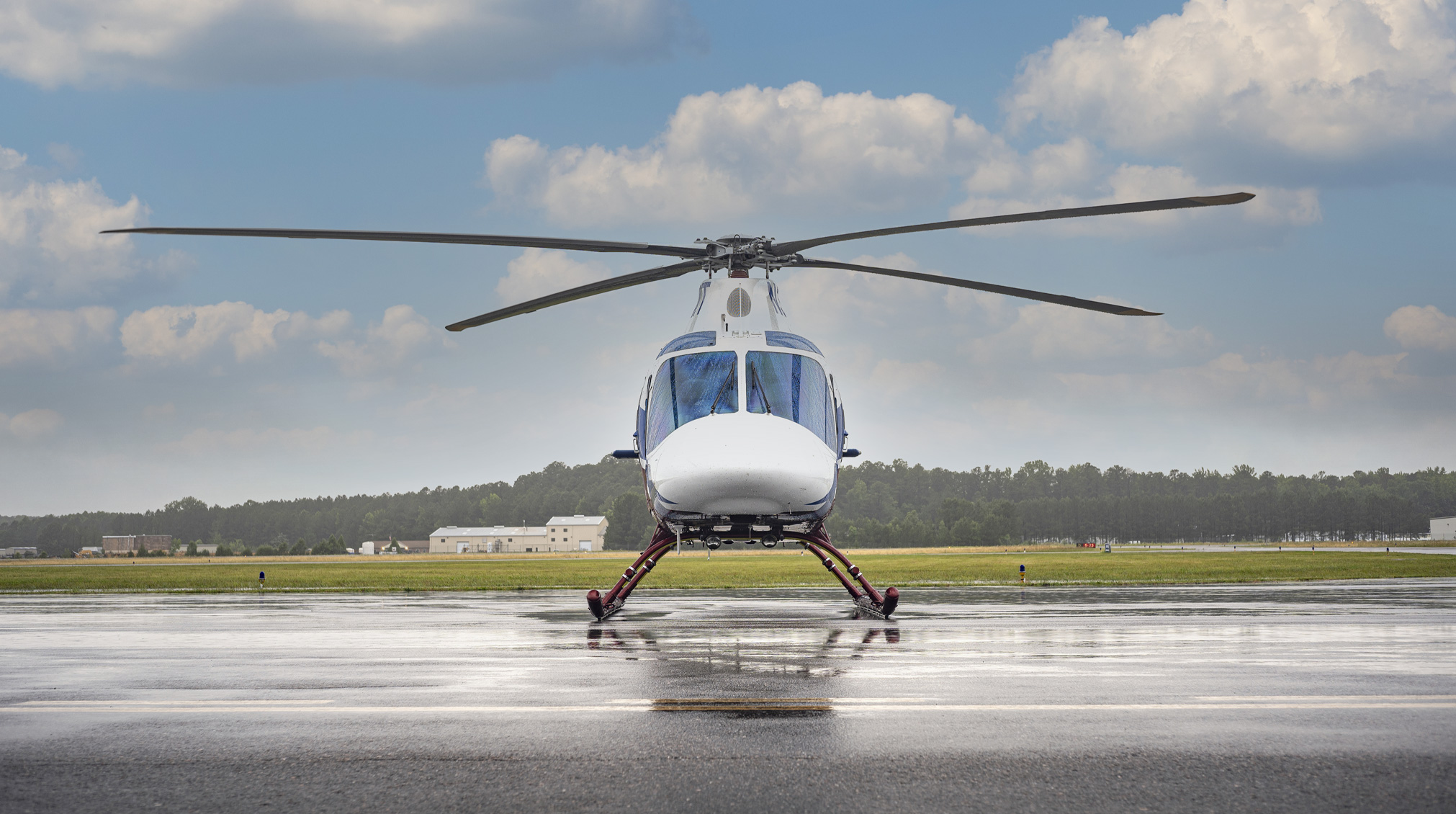

2009 Leonardo A119Ke

Details

INTERIOR

• 2 passenger, 2 crew
• Sliding door (RH)
• Sliding door (LH)
• AC

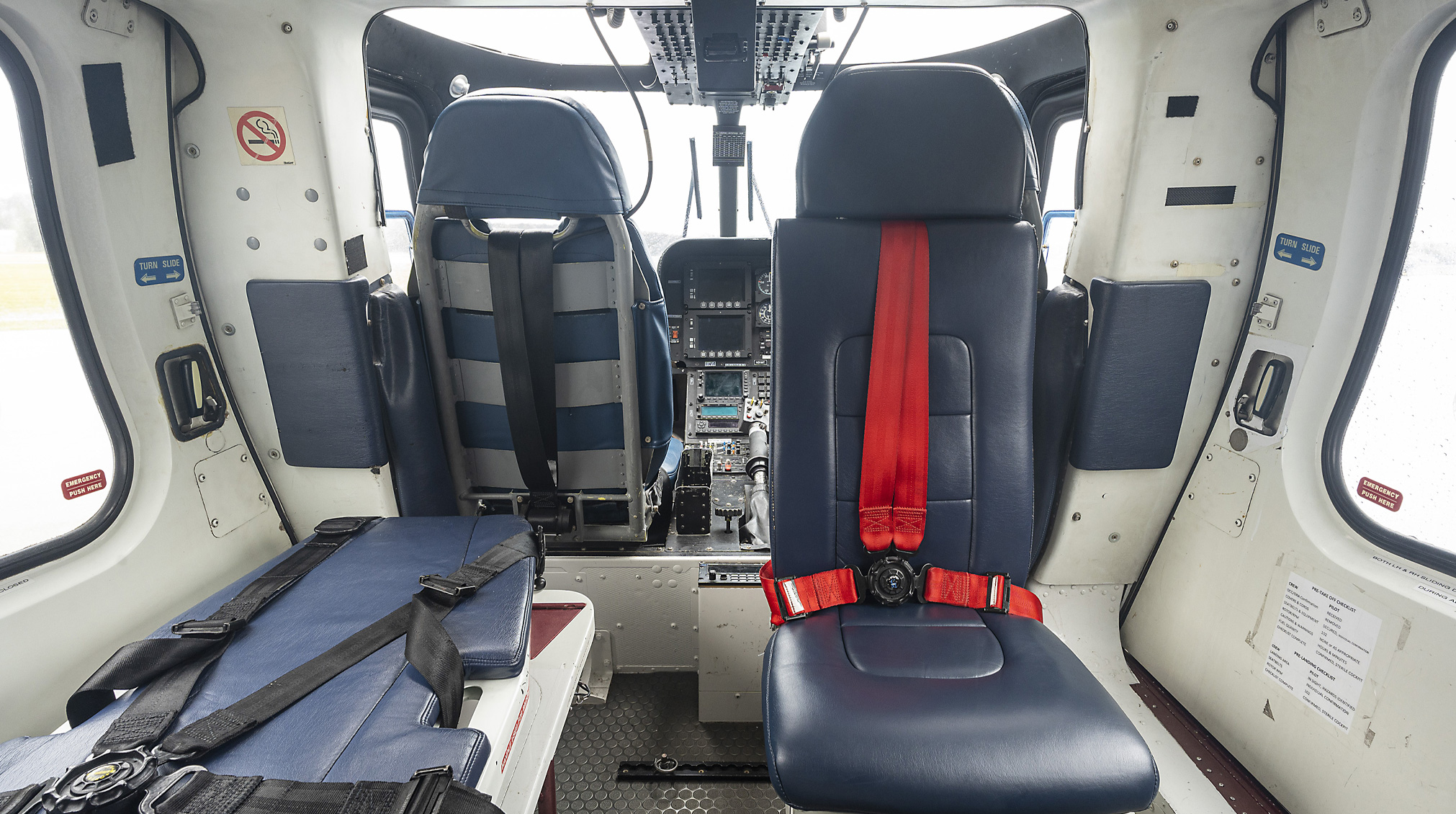

LEONARDO EMS INTERIOR 1. SINGLE/DUAL STRETCHER - FIXED PARTS

• Head liner with soundproofing and EMS provisions
• Side liners LH and RH with EMS provisions
• Aft EMS liners with rails
• Bench panels with rear EMS provisions
• Stretcher platform provision
• Cargo net provisions
• Floor equipped with rails and EMS provisions
• EMS electrical system and outlets (12 V DC / 28 V DC)
• 3rd ICS station in passenger cabin
• Medical oxygen system provision (single bottle)
• Sliders on passenger cabin doors windows
• Co-pilot reversible seat (in lieu of standard seat)

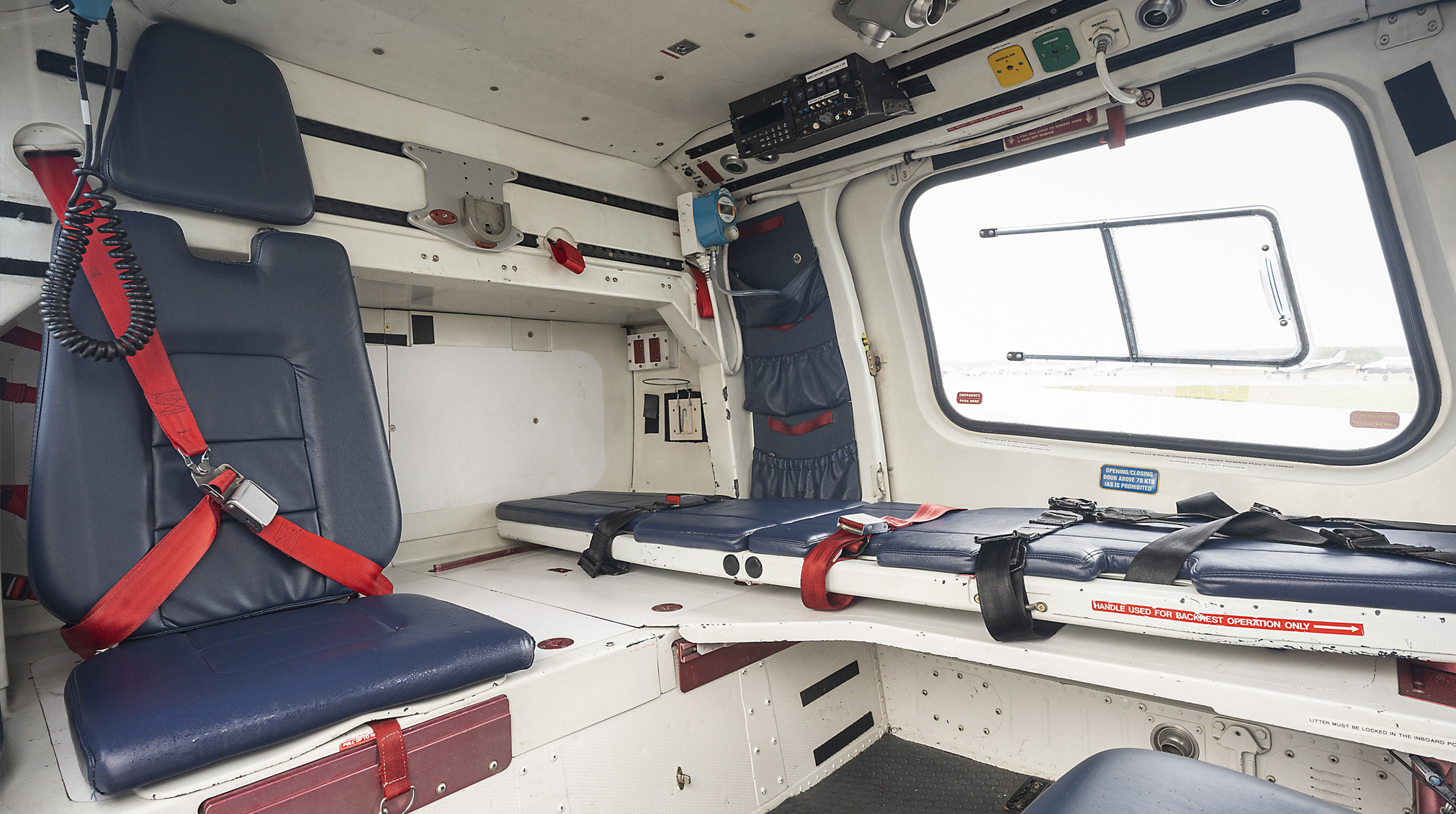

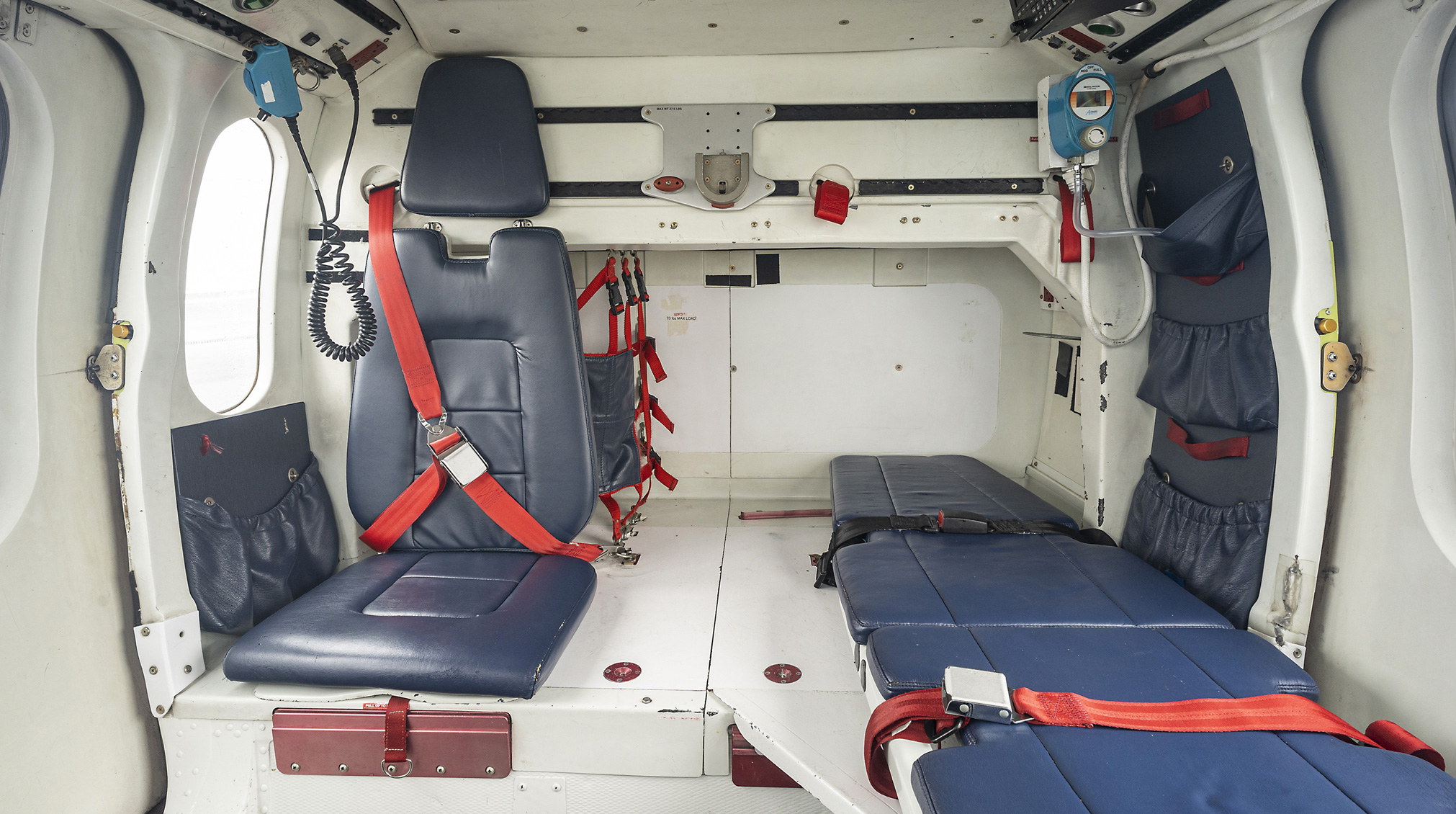

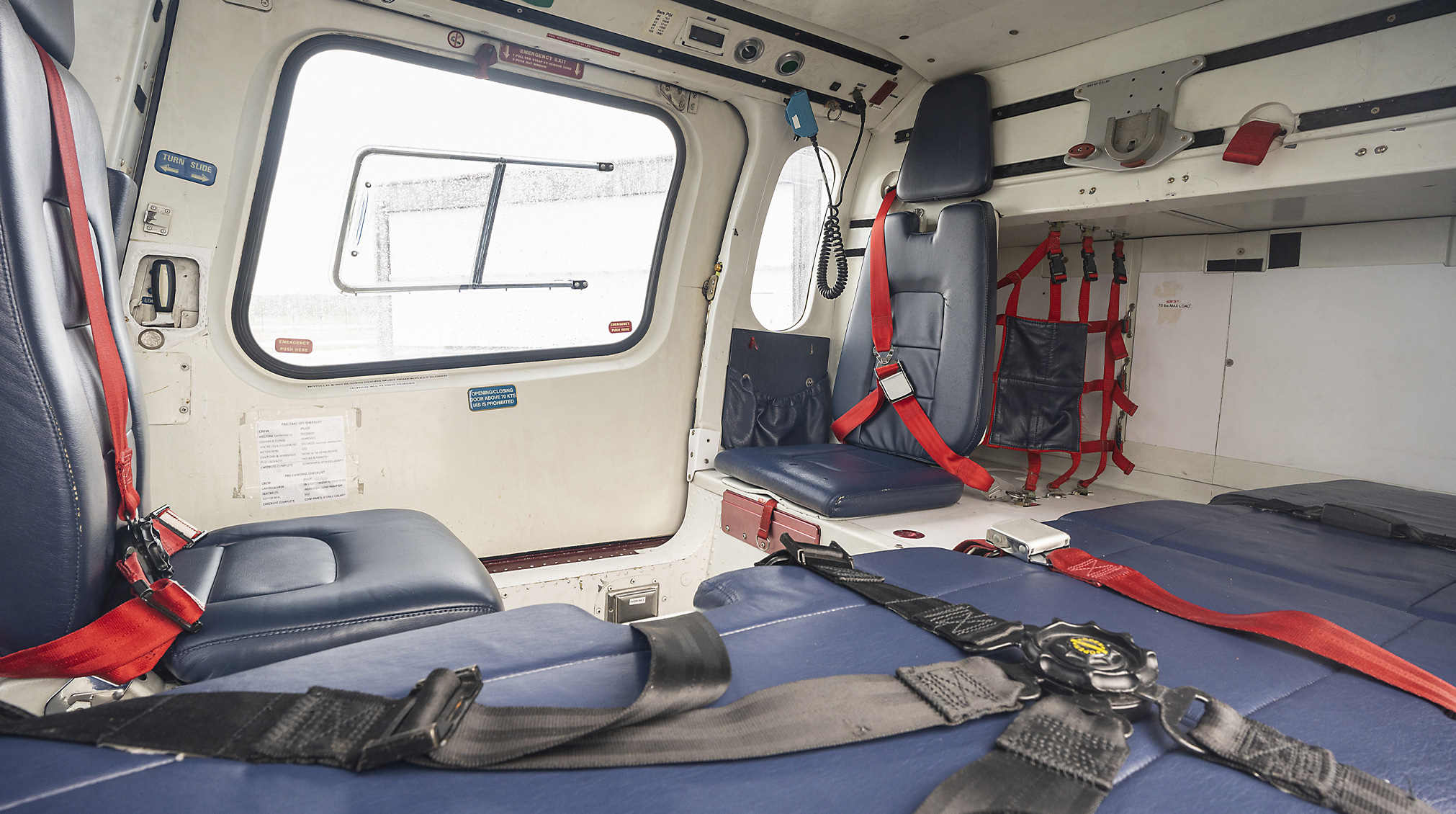

LEONARDO EMS INTERIOR 2. SINGLE STRETCHER INSTALLATION - REMOVABLE PARTS

• Storage compartment
• Primary stretcher platform with front lock mechanism
• Primary stretcher (Qty 1)
• Interior cargo net
• Seats and stretcher covered with leatherette
• Aft facing sliding/rotating seat
• Foldable fwd facing seats with headrests (Qty 2)
• 3-point shoulder harness with inertial reels and safety-belts for passenger seats

LEONARDO EMS INTERIOR

• Bleed Air Heater, Primer Finished Cabin Walls, Two Individual Pilot Seats, fore and aft adjustable, with lab belts and headrests
• Aluminum Alloy Honeycomb reinforced floor with anti-skid finishing
• Ventilation Ram Air Inlets

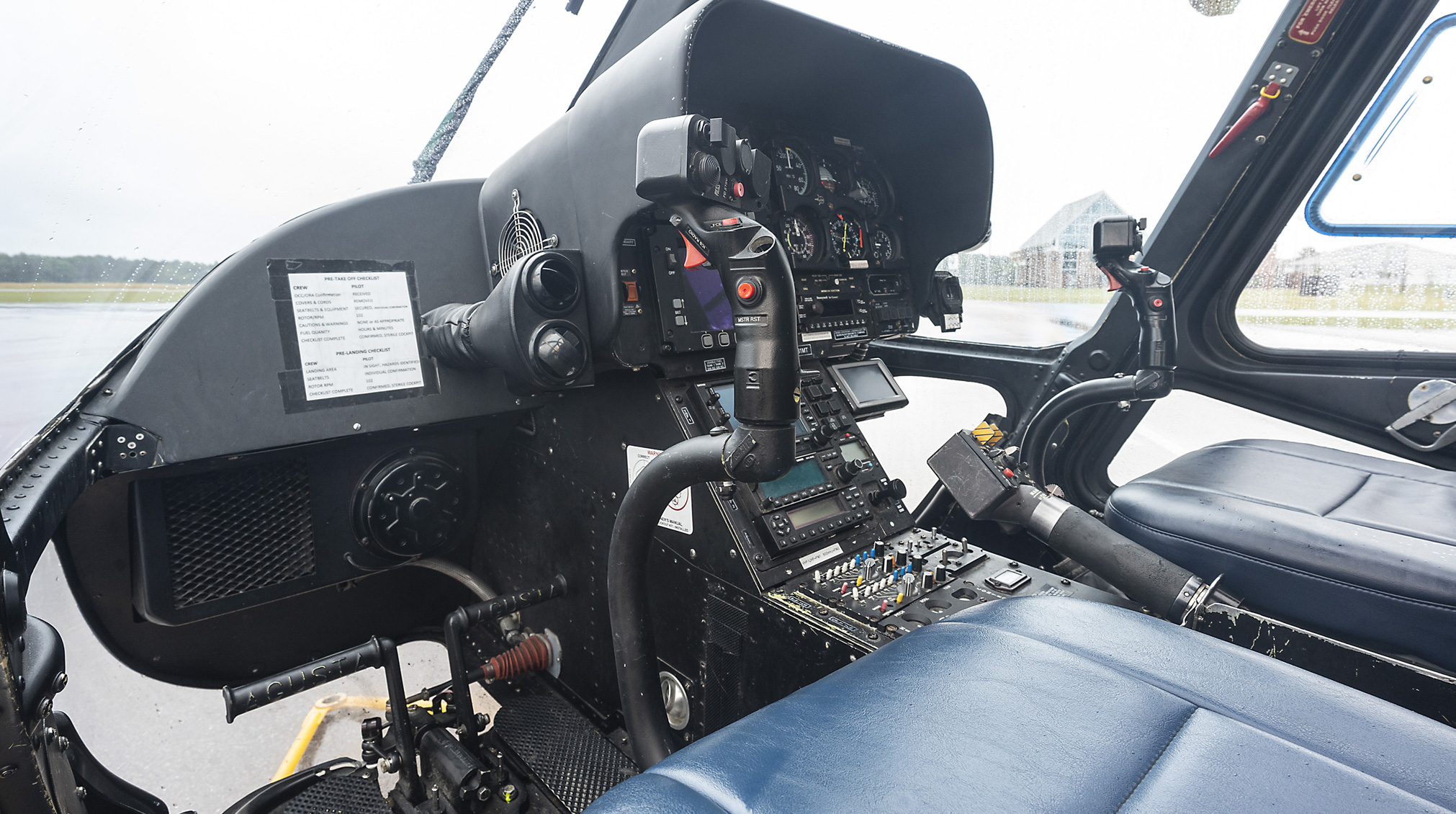

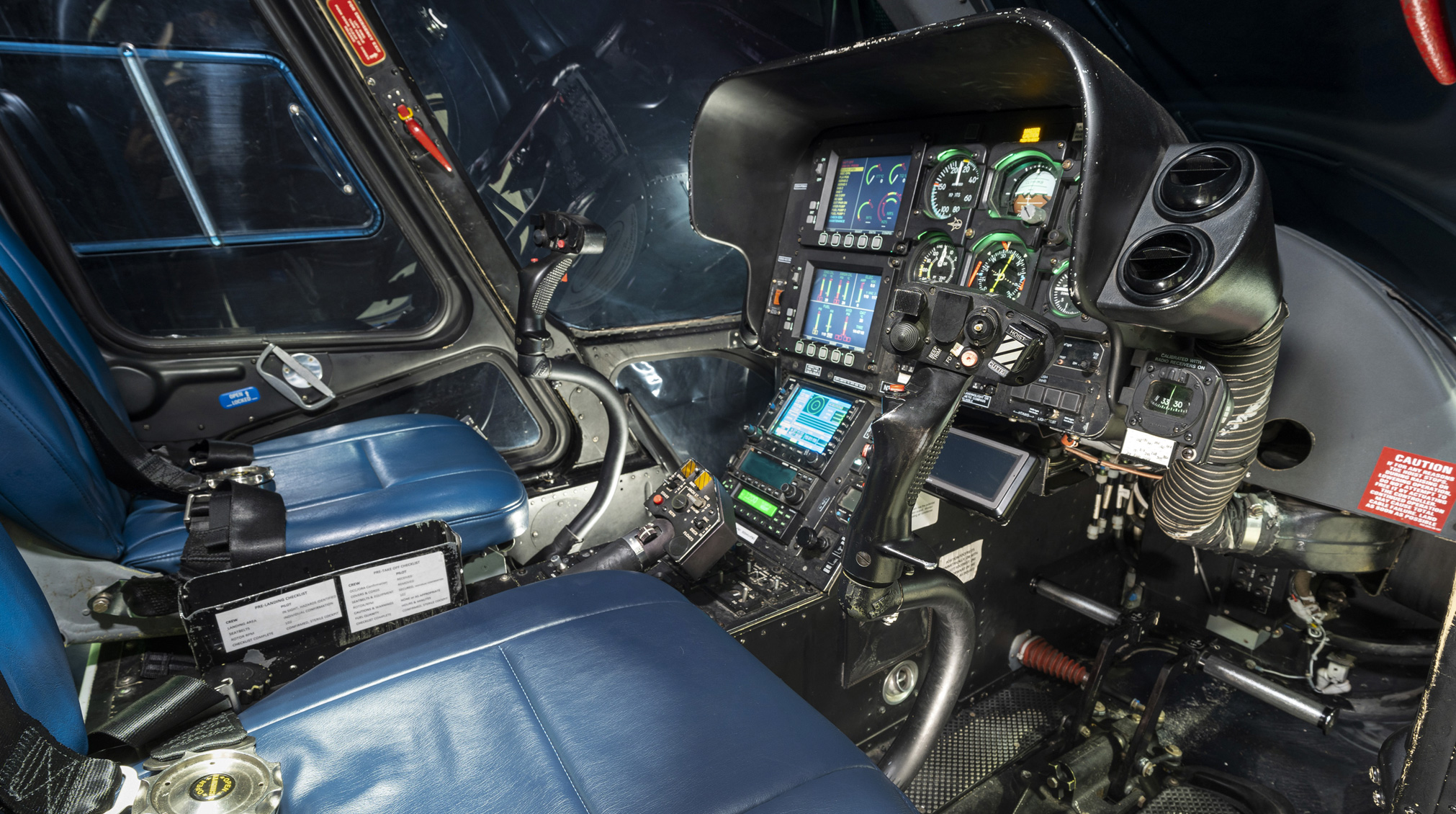

• Anti-reflection instrument panel
• Separation curtain cockpit/cabin

EXTERIOR

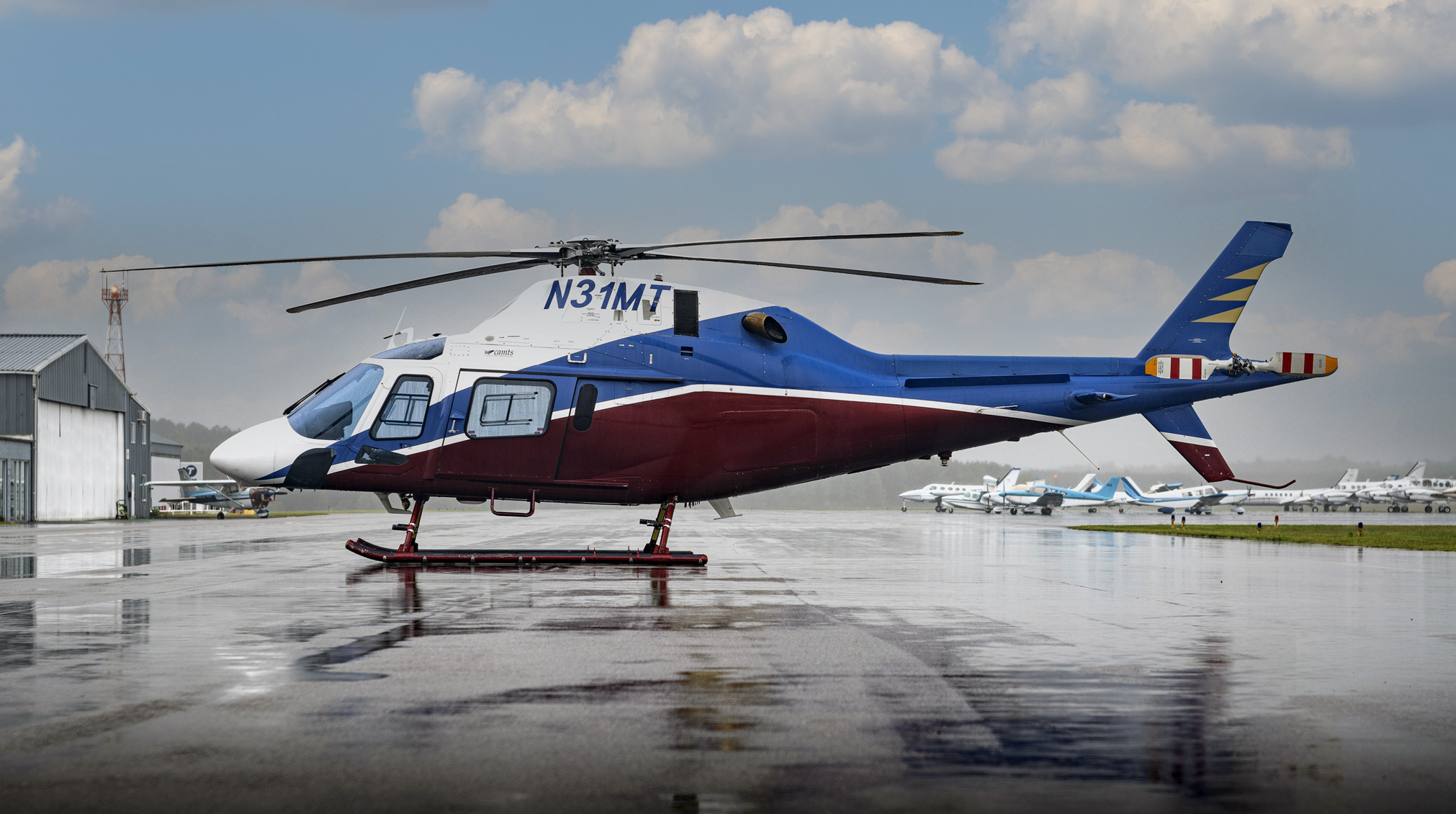

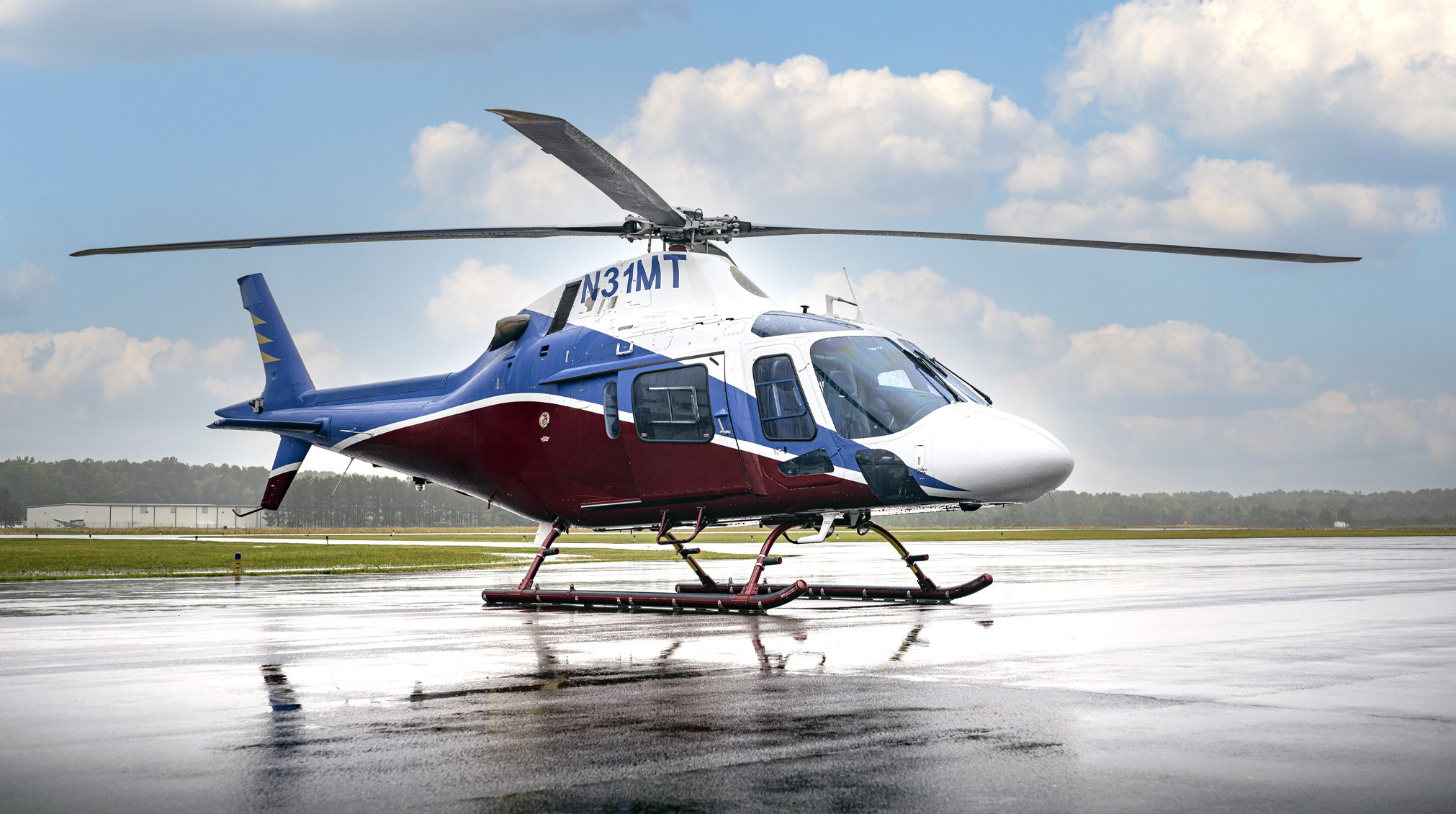

• White/Blue/Maroon Metallic Exterior Paint

EQUIPMENT

• Shoreline power 1000 W inverter with aux power in cabin
• NVG Compatible Alternative Lighting Fuel flow meter
• Mounts
  - Defibrillator
  - Infusion Pump
  - Ventilator
• Central Warning System Position lights
• 250 W landing lights (2) Anti collision lights (2) Cockpit utility lights (2) Instrument lights with dimming switch
• Air Conditioner Vapor Cycle System
• 3-cell fuel system (605 1- 160 USG)

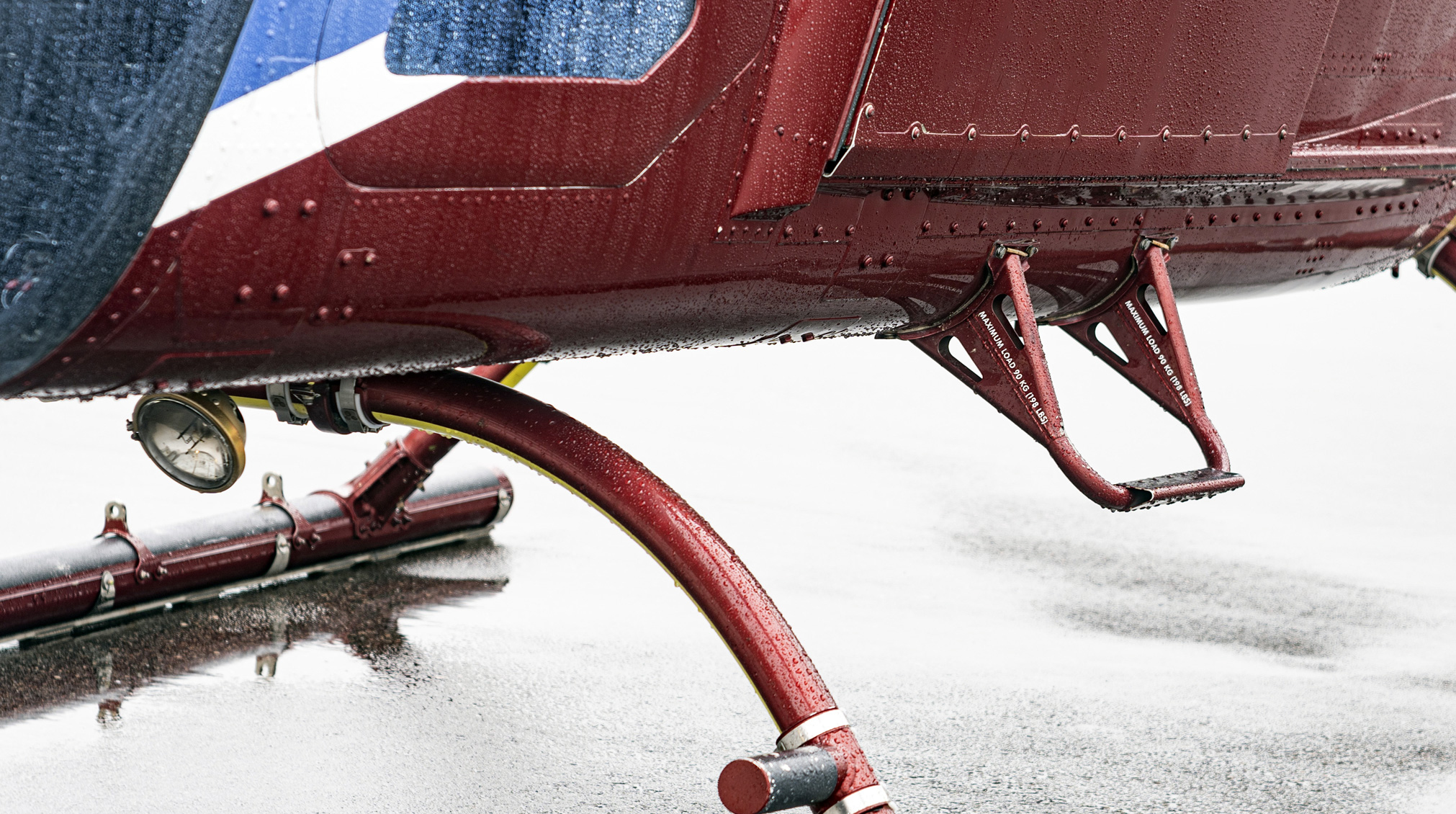

• Reinforced skid type landing gear
• Two hinged jettisonable crew doors (LH & RH)
• Two sliding passenger doors (LH and RH), 1.10m opening, with jettisonable windows
• Acrylic windshield and side windows
• Acrylic overhead windows
• Reinforced Windshield (pilot and co-pilot)
• Baggage Compartment Extension (1.9m)
• AC power supply system (2 inverters)
• Aero Dynamics NVG System
• Four composite blades

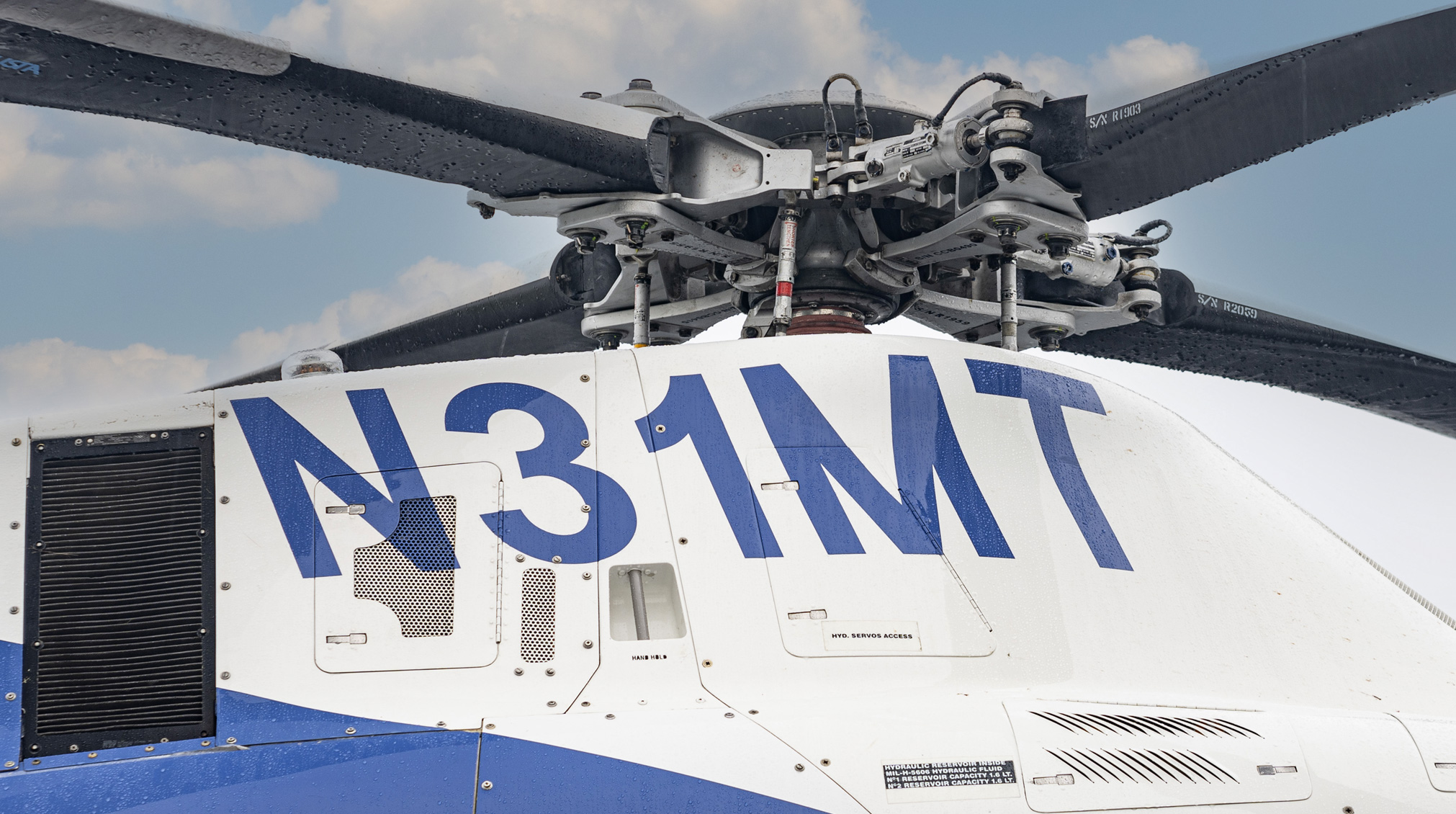

• Fully articulated main rotor with four composite grips
• Pulsed chip detectors
• Engine inlet barrier filter
• Search Light Super Nightscanner
• Cargo Hook and Hoist Provisions

AVIONICS

• BLT C406-2HM Artex
• ICS NAT Dual Pilot AA95 Controllers + one AA95 Controller for EMS Cabin
• Radio Altimeter (TRA 3500, TRI 40)
• SkyConnect satellite tracking system with Sat phone
• Skywatch Traffic Advisory System SKY 497
• FM System Cabin 2nd Unit RC 6148
• FM System TDFM 6148 VHF High (138-174 MHZ)+ UHF (400-470 MHZ) 800 MHZ
• Garmin GNS 530W
• Garmin GFC 250
• Garmin GTX335 Transponder (mode S) KT-70 Bendix/King with ADS-B out
• AFCS 3-axis duplex SP-711 Honeywell
• ADF KR-87 Bendix/King
• Gyrocompass C14A Honeywell
• JCS pilot AG-06-lU Agusta/Gemelli

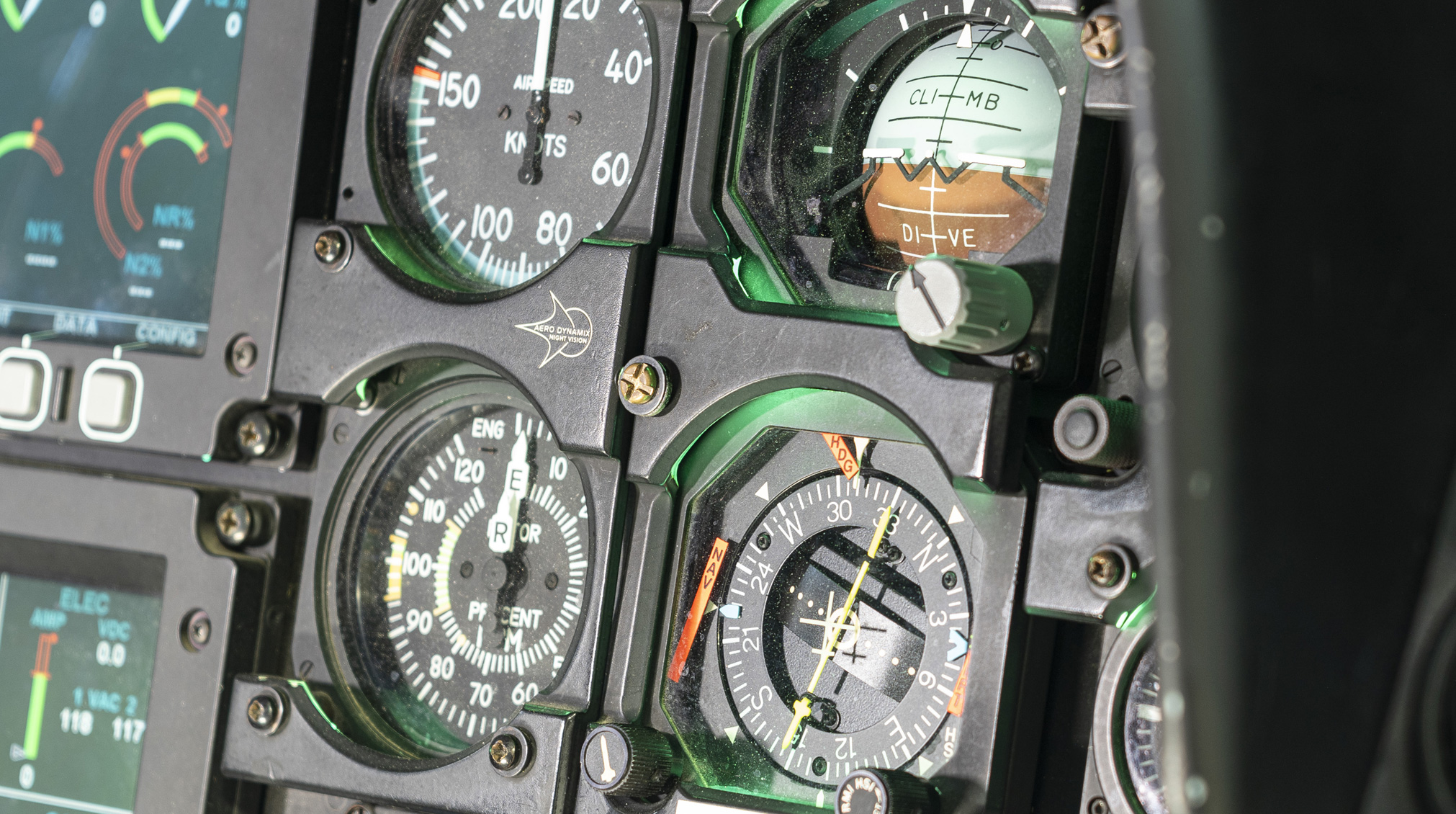

• Pilot navigation instruments (including ADI & HSI)
• VHF-COM/GPS 250XL Garmin
