2012 Leonardo AW109SP GrandNew

Details

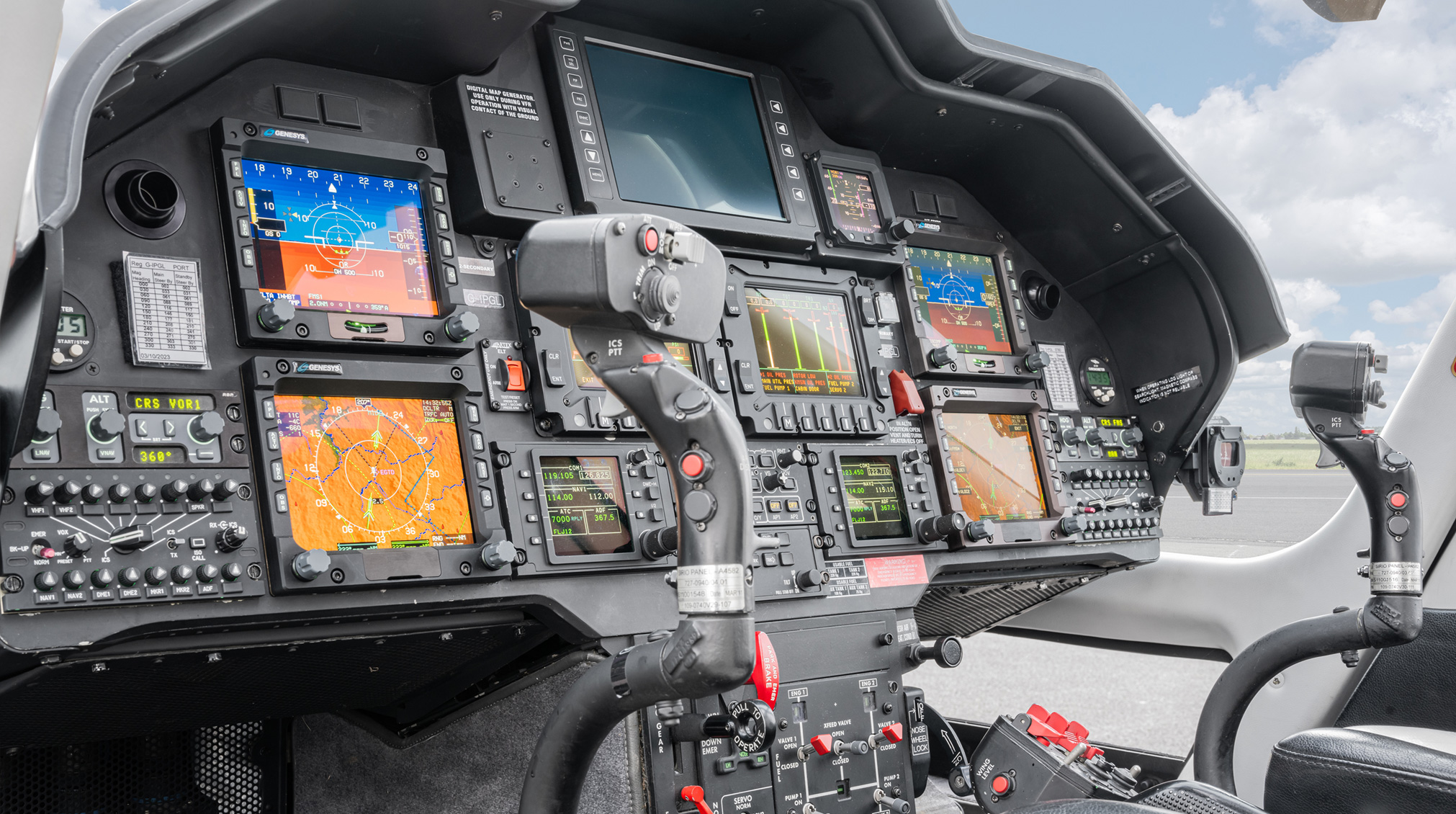

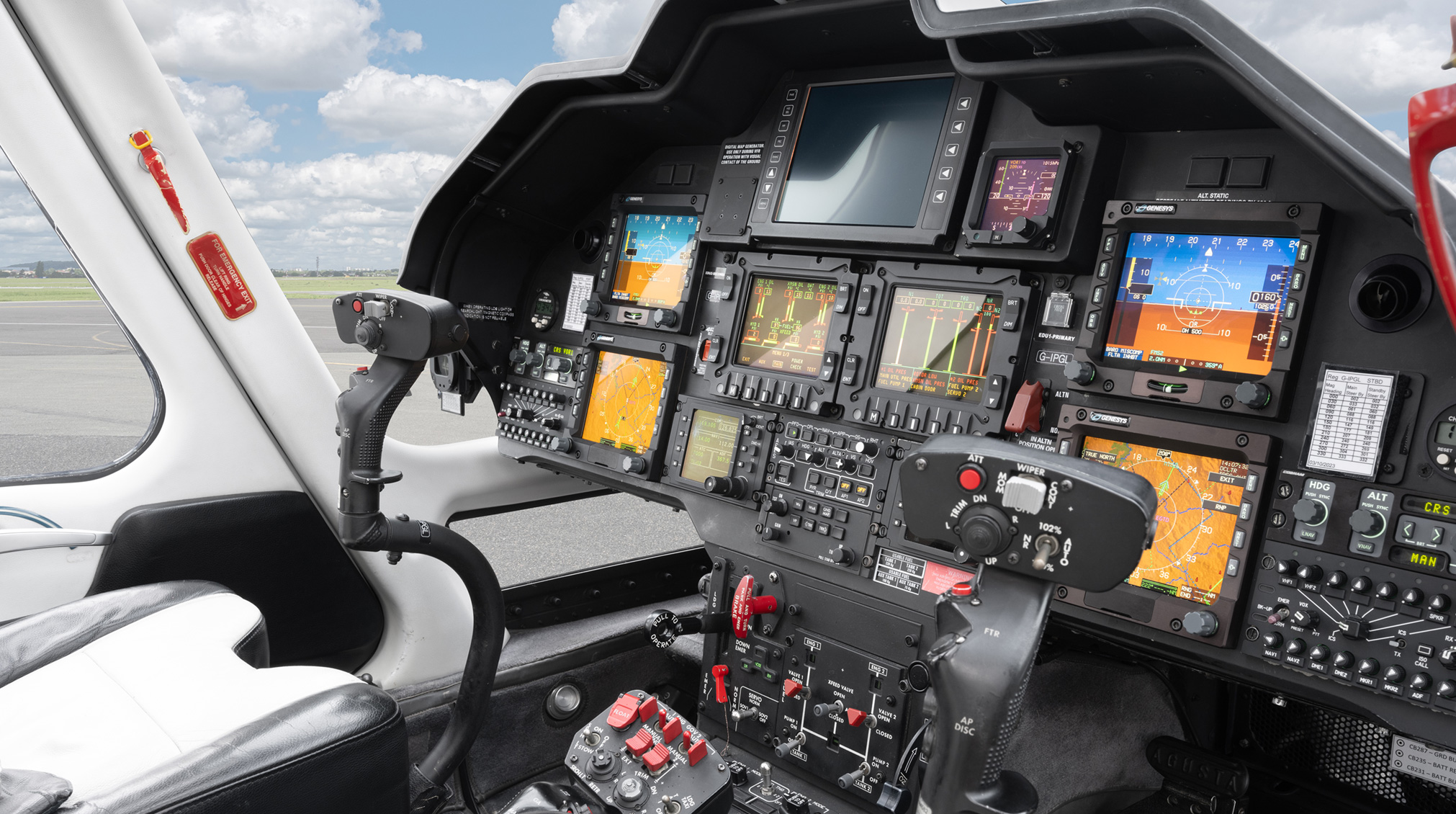

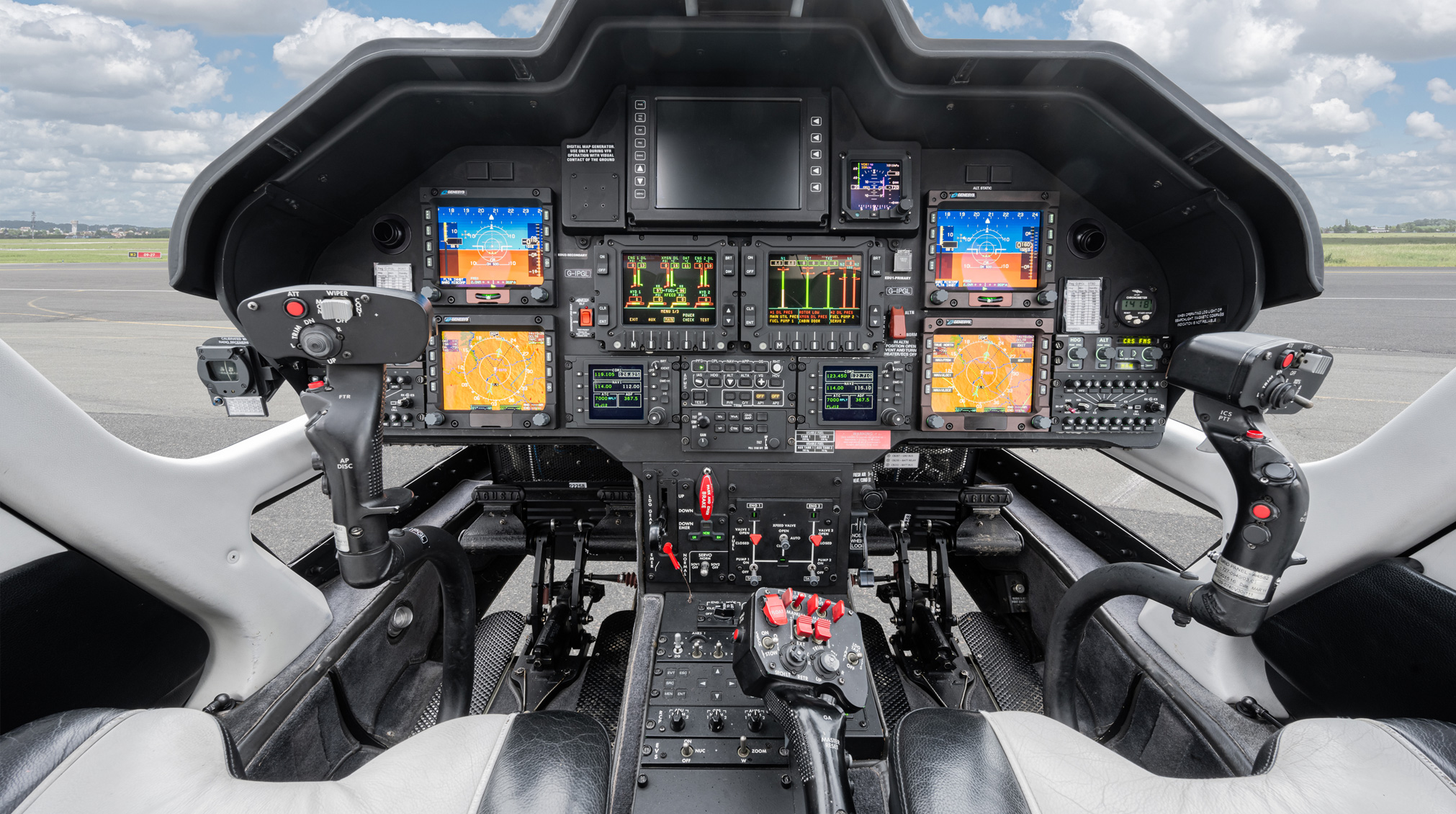

AVIONICS - SINGLE PILOT, DUAL CONTROL IFR AVIONIC PACKAGE

• Dual pilot flight/navigation EFIS (PFD and MFD) with embedded FMS, Synthetic Vision (SVS), HTAWS (Helicopter Terrain Awareness and Warning System), slip indicator and Remote Bug Panel (RBP)
• Co-pilot flight/navigation EFIS (2 displays) with embedded FMS.
• Synthetic Vision (SVS), HTAWS (Helicopter Terrain Awareness and Warning System), slip indicator and remote Bug Panel (RBP)
• Reversionary Control Panel (RCP)
• EFIS pilot/co-pilot navigation synchronization switch (FMS data)
• Electronic Standby Instrument system (ESIS)
• Second Radio Management System (RMS) RTU-4210 Collins
• Second VHF/AM VHF-4000E Collins
• VOR/ILS/ADF NAV-4000 Collins
• DME DME-4000 Collins
• Radio Altimeter ALT-4000 Collins
• Second Attitude Heading Reference System (AHRS)
• Second Air Data Unit (ADU)
• Pilot GPS/SBAS Chelton interfaced to EFIS/FMS
• Co-pilot GPS/SBAS Chelton interfaced to EFIS/FMS
• Digital Audio Control System (DACS) COBHAM additional cockpit panel
• 4-axis dual duplex digital AFCS with integrated Flight Director
• Second electronic clock
• Second magnetic compass indicator
• ELT C406-N HM Artex (with Navigation Interface Module embedded)
• Dual controls

ADDITIONAL AVIONIC EQUIPMENT

• 8.4 inch central display
• Digital Map Euronav V Euroavionics Interfaced to FMS (Presented on 8.4" Display)
• Traffic Advisory System TAS-620 Avydine (presented on EFIS)
• Weather radar RDR 2000 Bendix/King (presented on EFIS)
• UHF/AM KTR-909

ADDITIONAL EQUIPMENT

• Single central drawer
• 2x Electrically operated passenger steps
• 212.5 US gal crash-resistant fuel system (in lieu of 152 USG)
• 2.3m baggage compartment extension
• Emergency floats provision
• life jacket provisions
• Enhanced Vision System (EVS)
• Mass vibration absorber

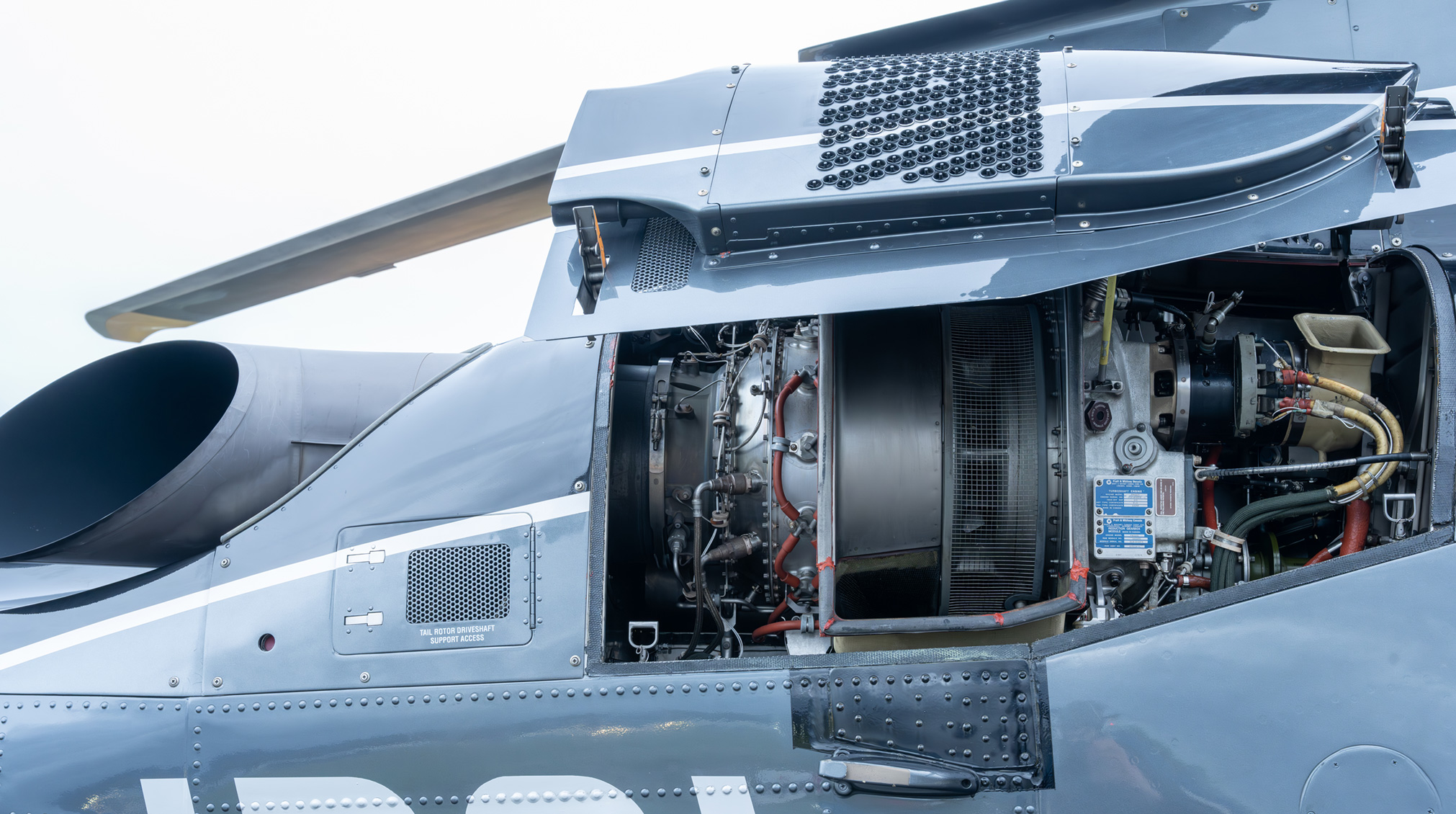

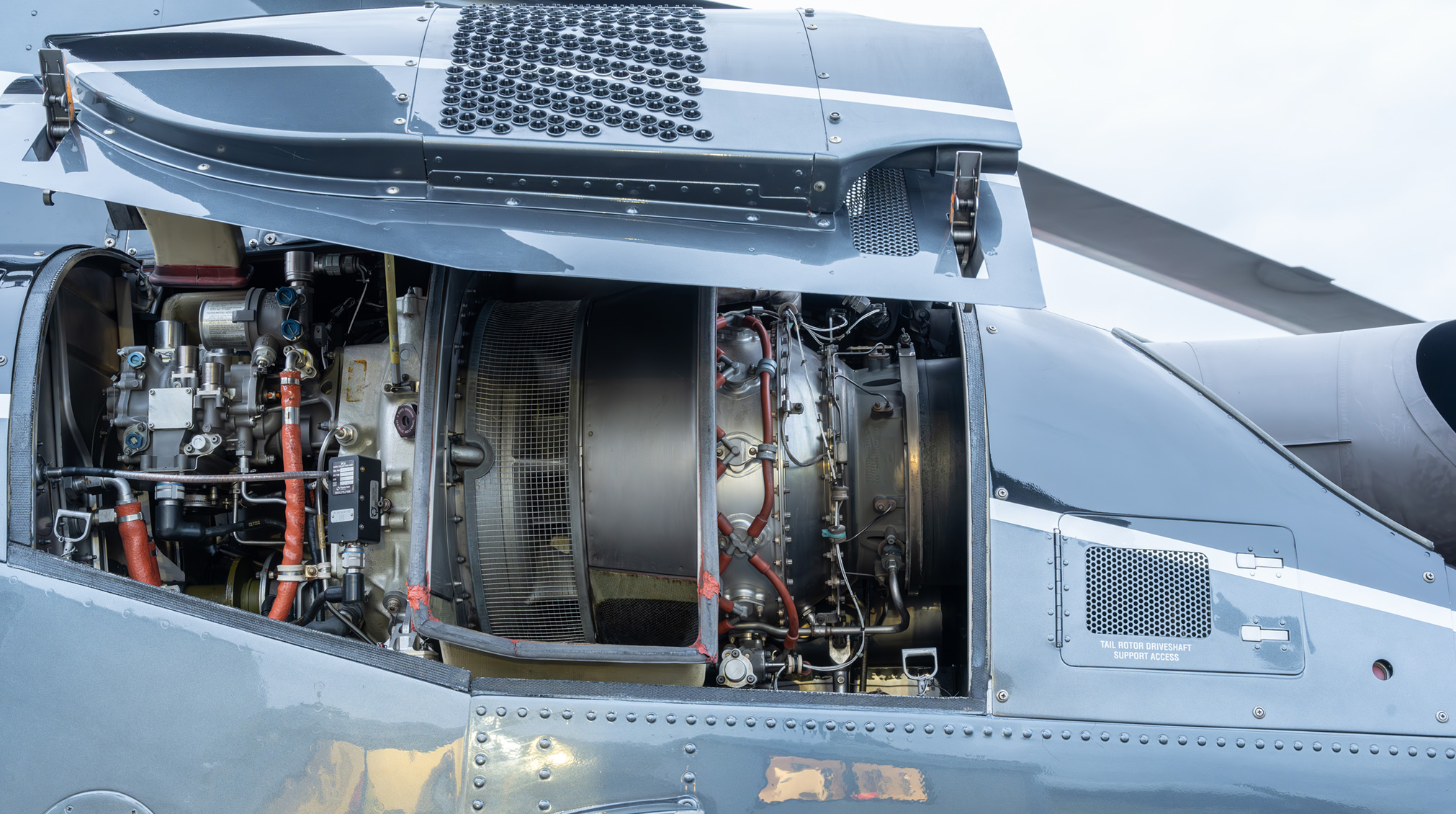

• EAPS engine particle separators

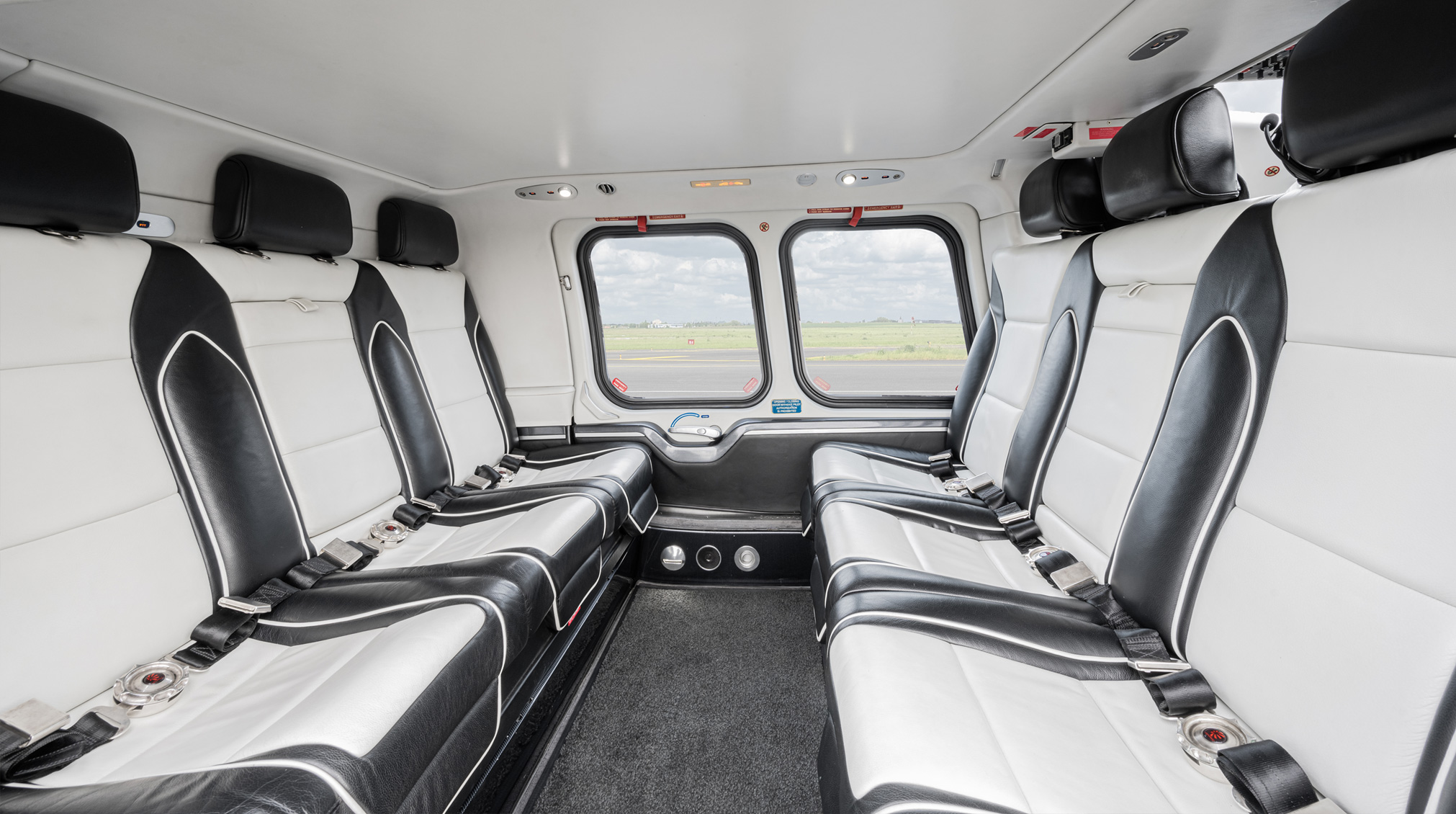

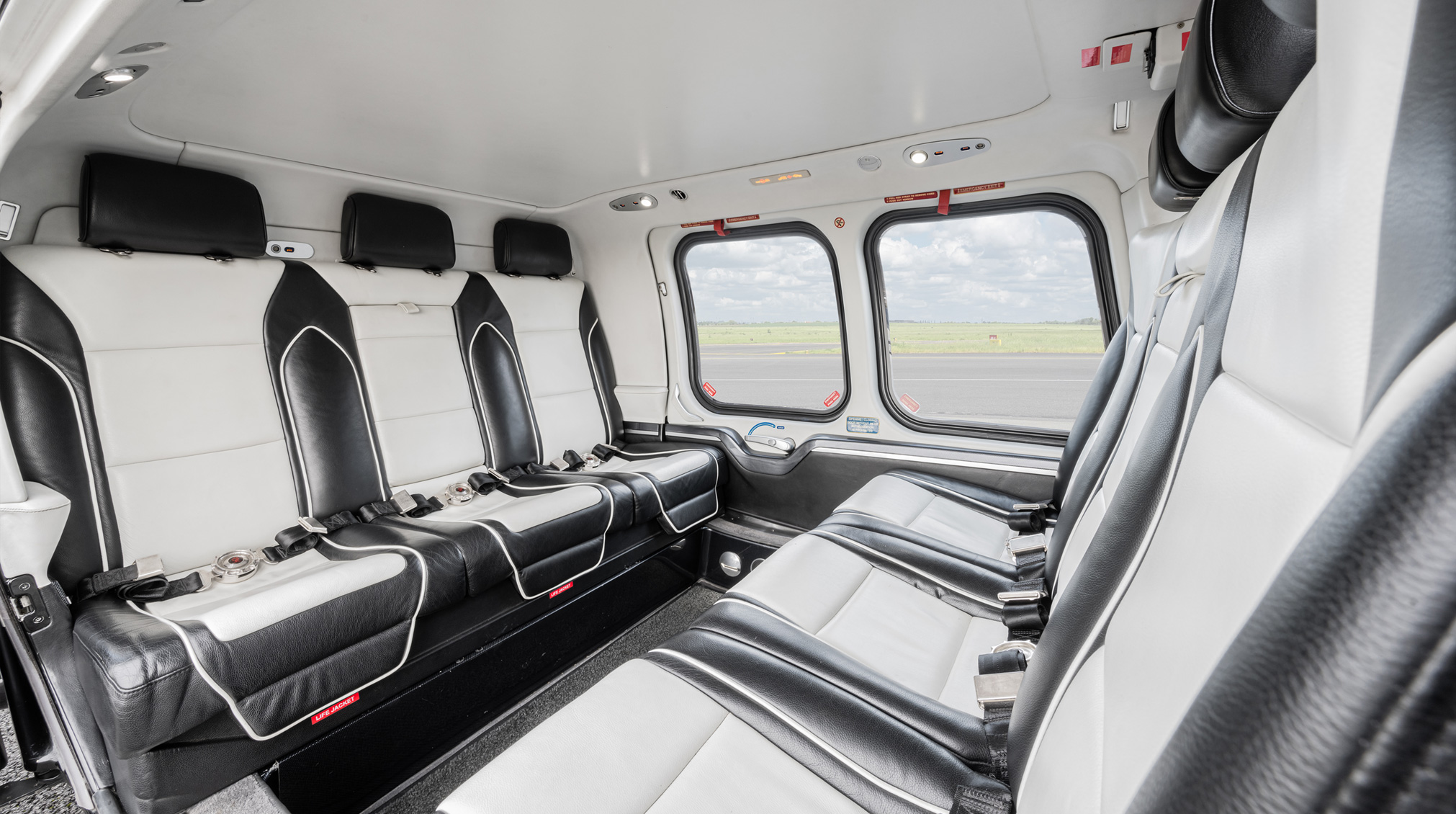

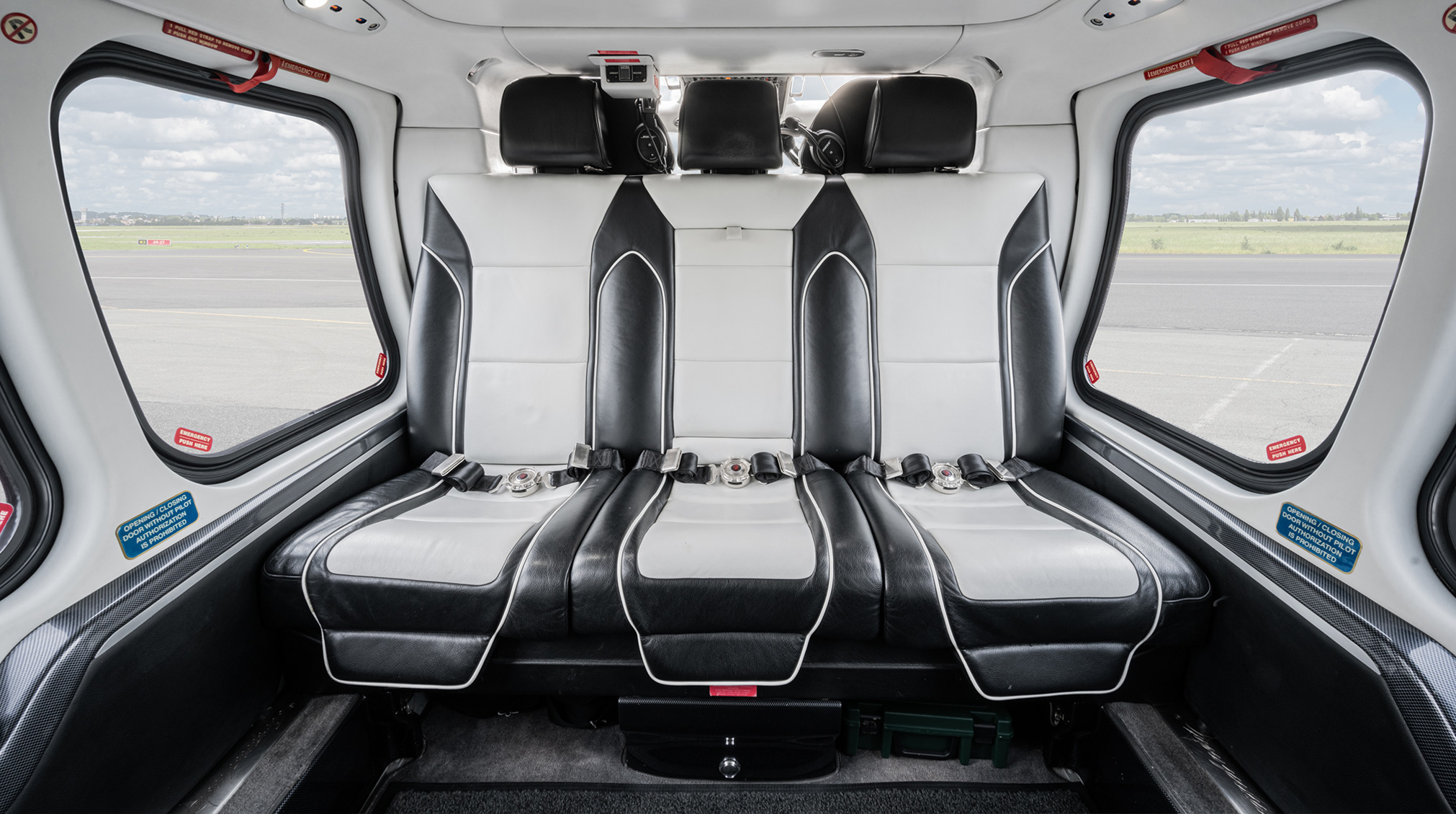

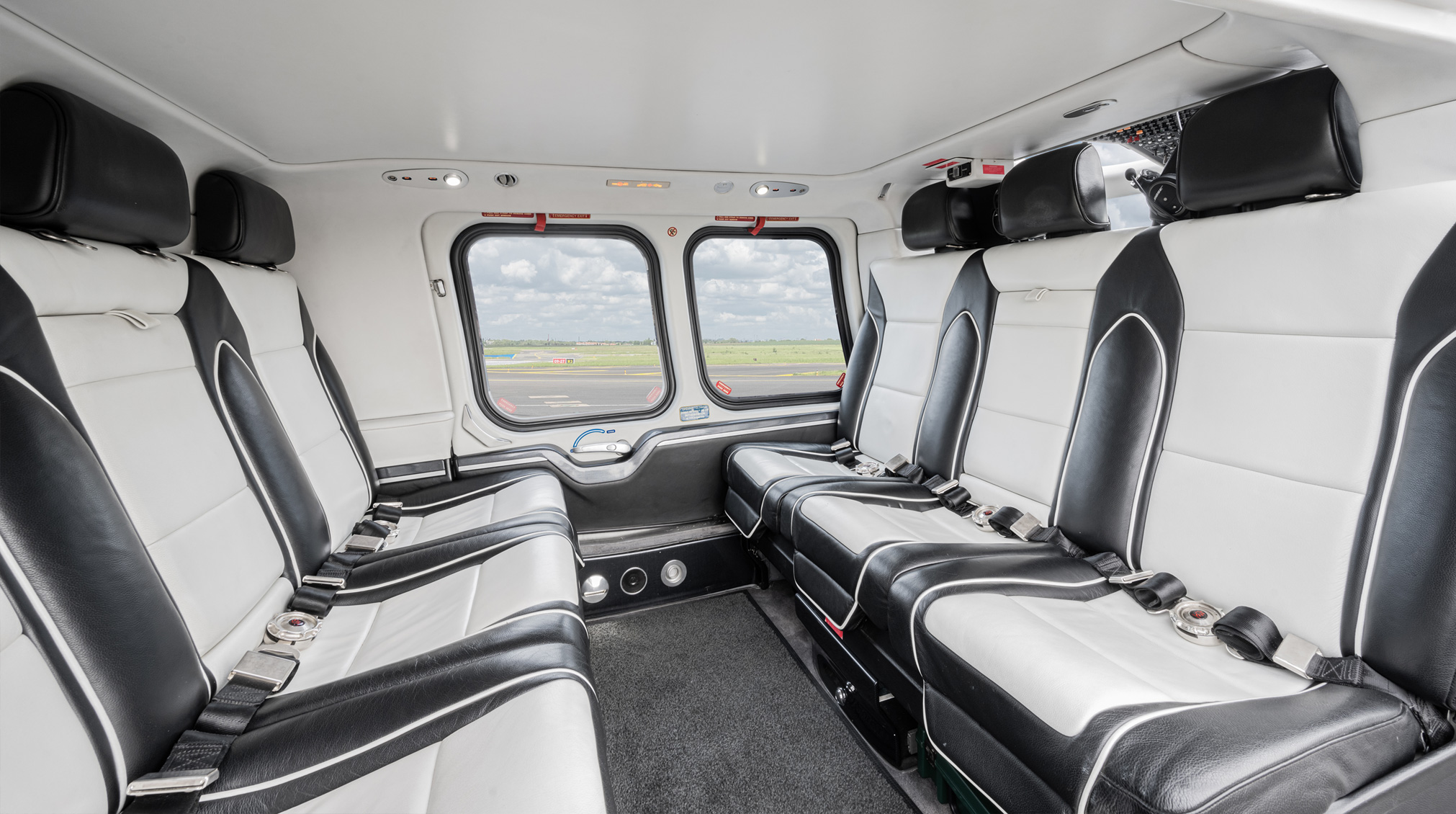

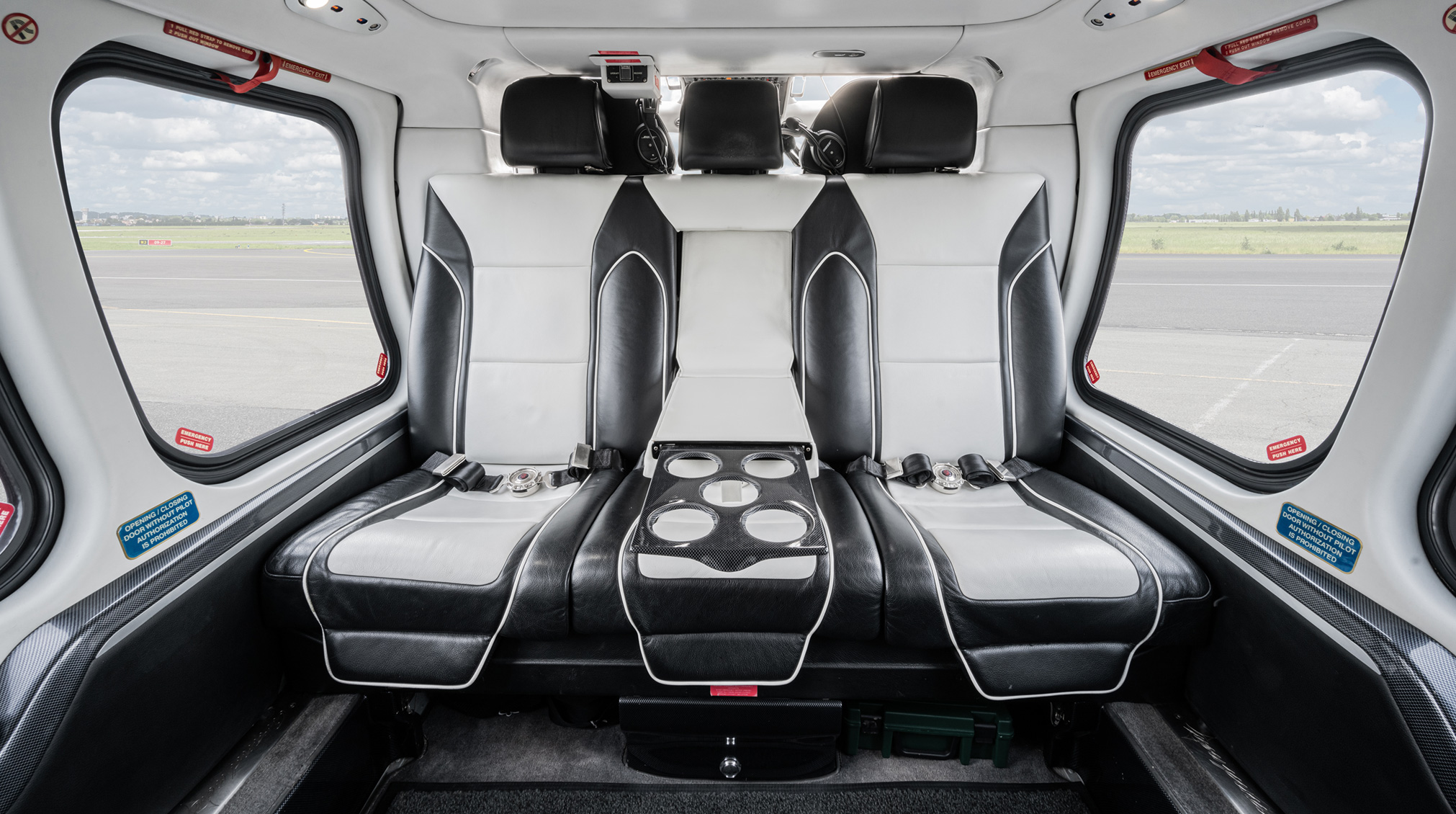

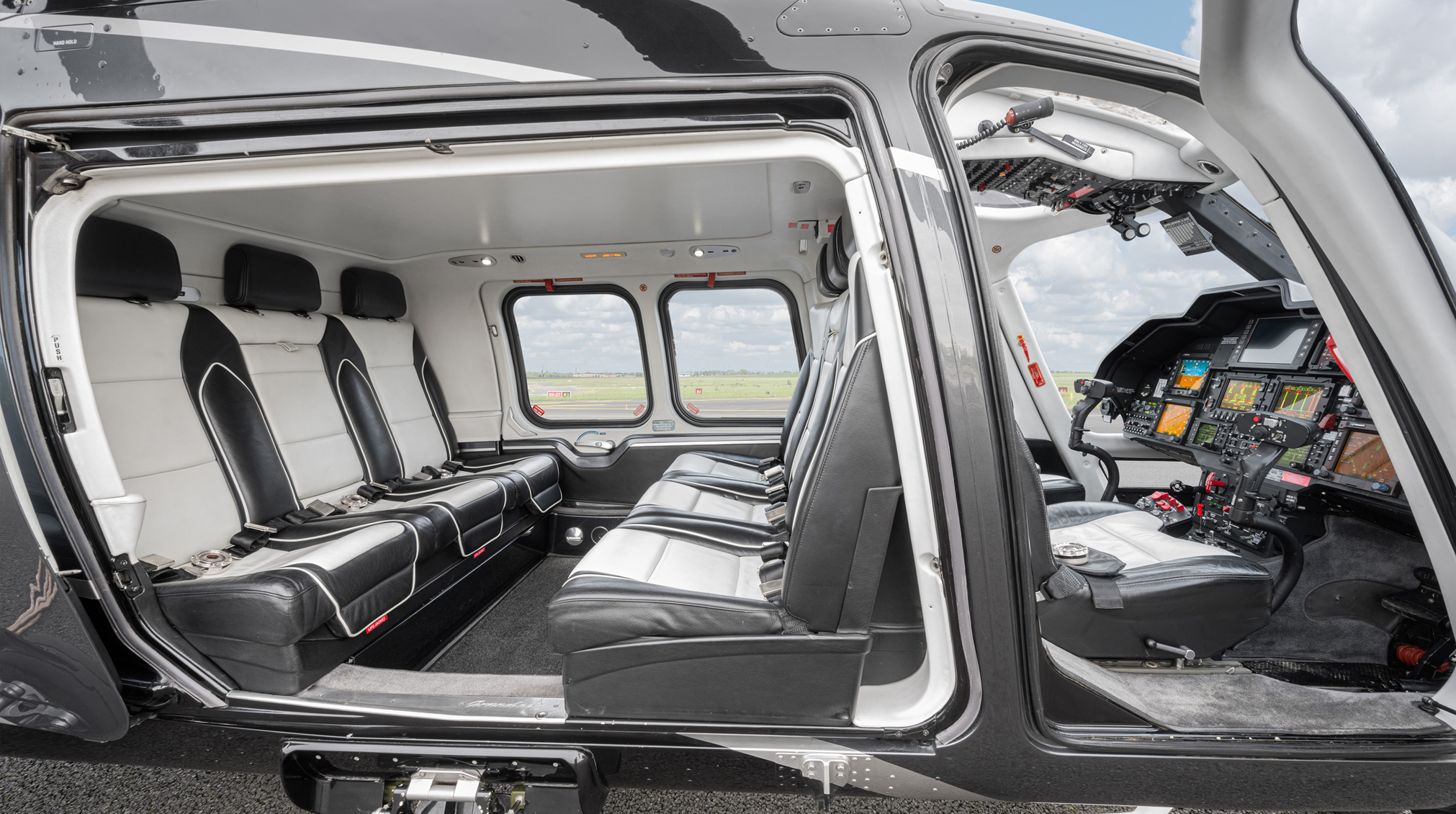

INTERIOR - VIP INTERIOR - SIX SEATS

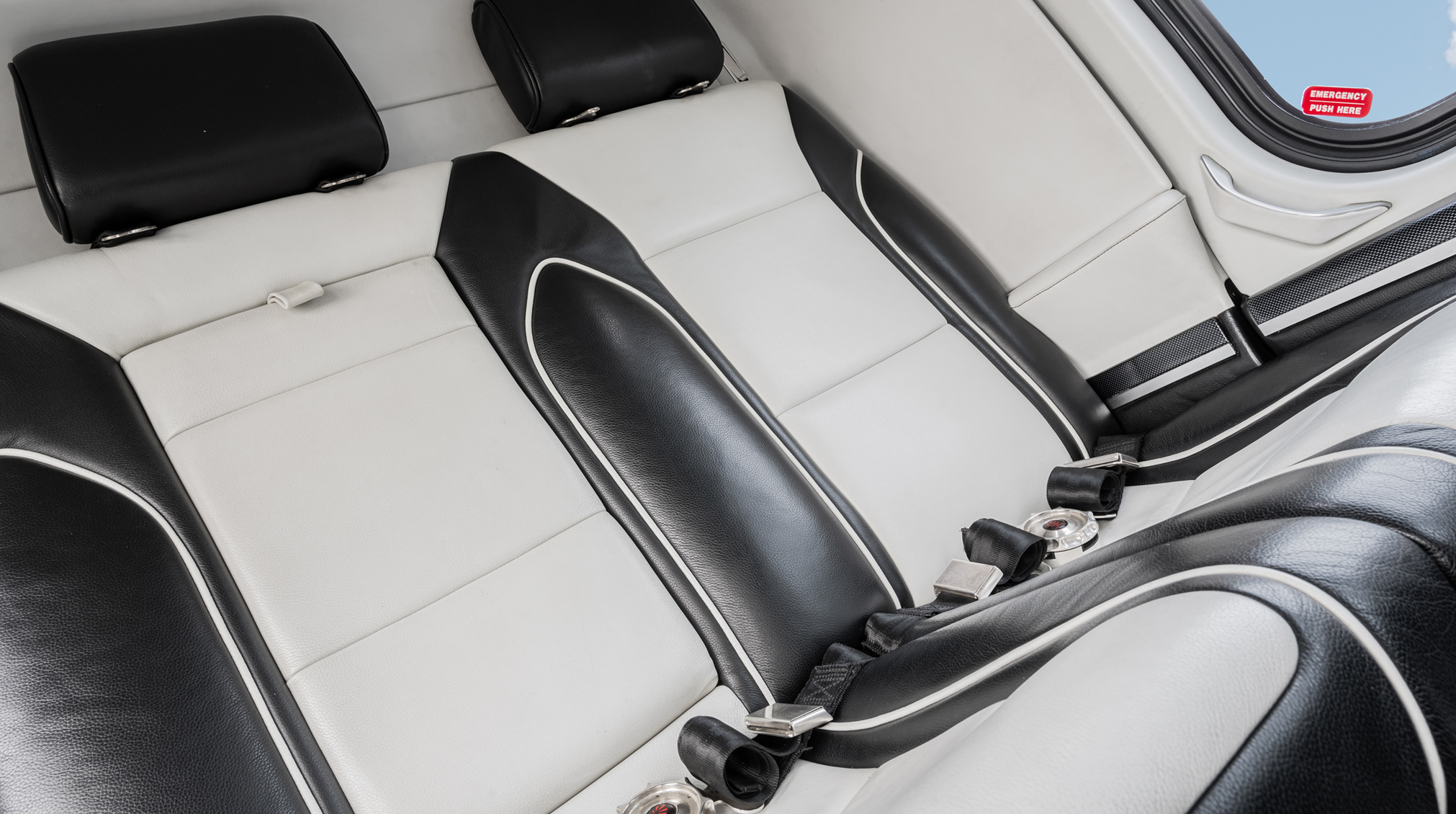

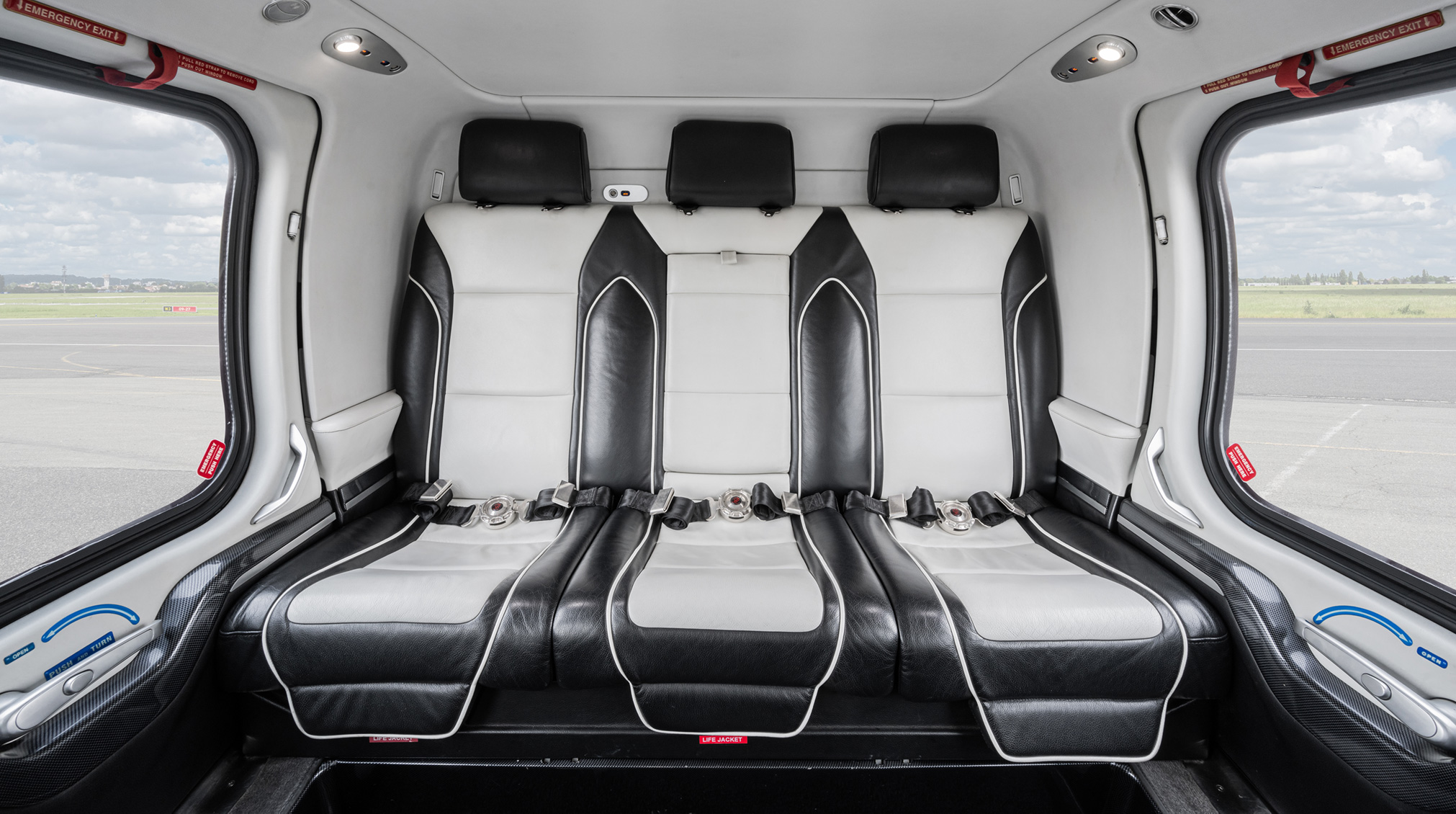

• All seats crash-resistant covered with leather. Three fwd facing seats (aft bench) and three aft facing seats (central bench)
• Forward facing armrests
• 4-point shoulder harness for all passenger seats
• Super silent soundproofing
• Liners leather/leatherette covered
• Acoustic screen around doors
• Cabin double layer acrylic windows

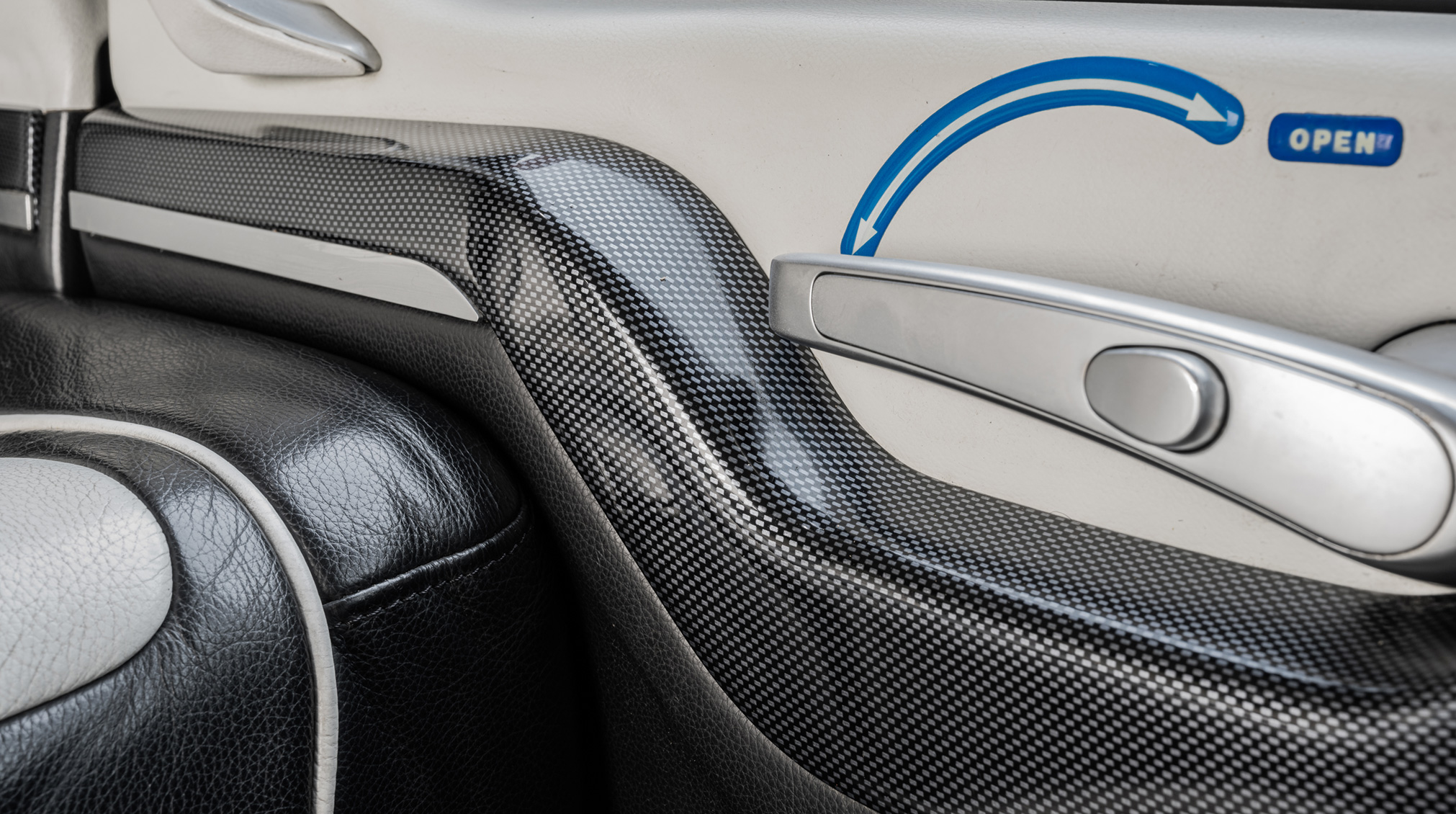

• Decoration trim with metal inserts lntercommunication system for passengers
• Headset Bose ANR type (qty six)
• Cabin loudspeakers (qty two)

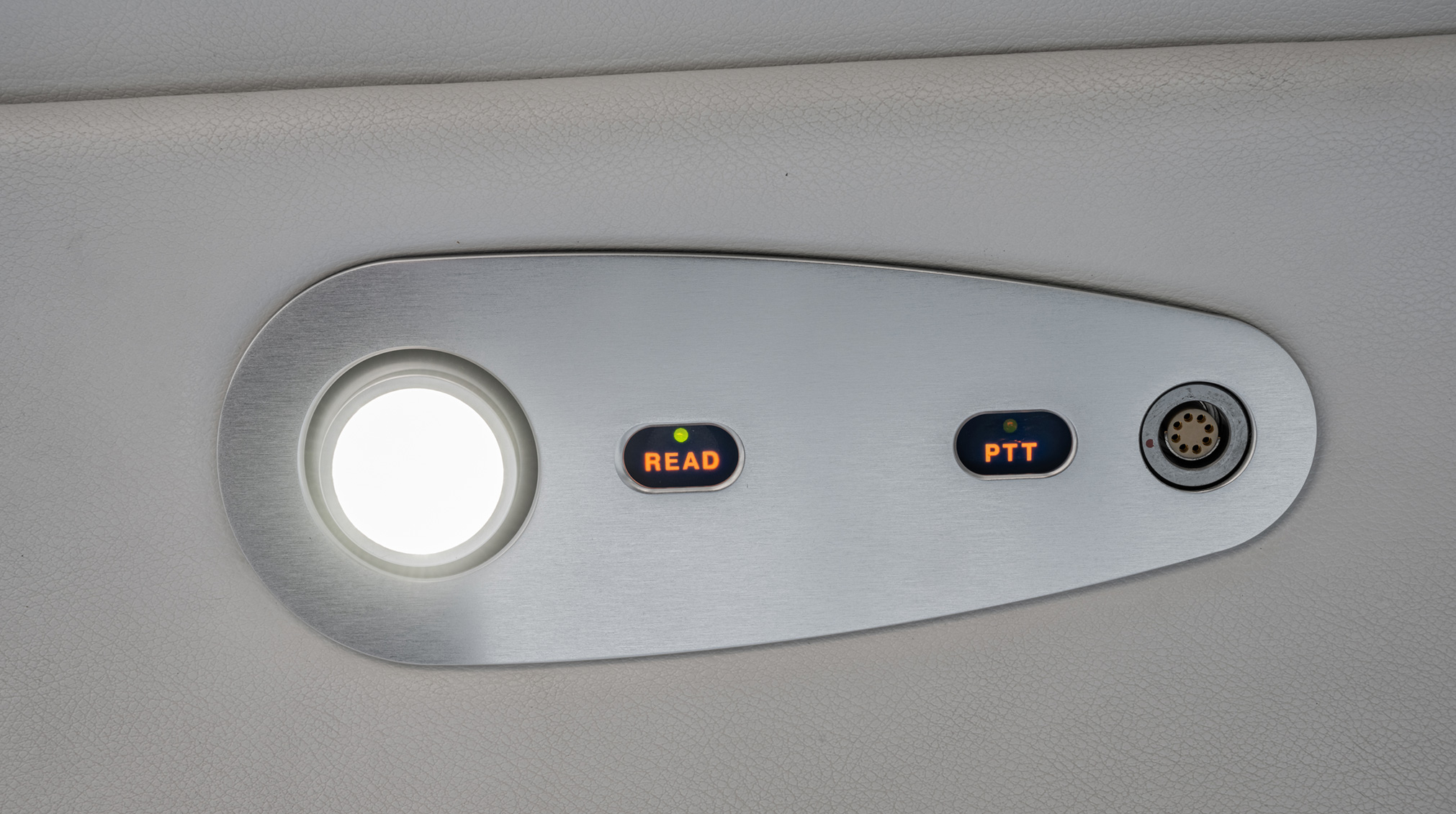

• Reading lights, emergency lights, floor courtesy lights Passenger hooks (qty four)
• Upper and lower air vents
• Floor carpeting with carpeting protection
• Seat covers
• Air Conditioning ECS

EXTERIOR

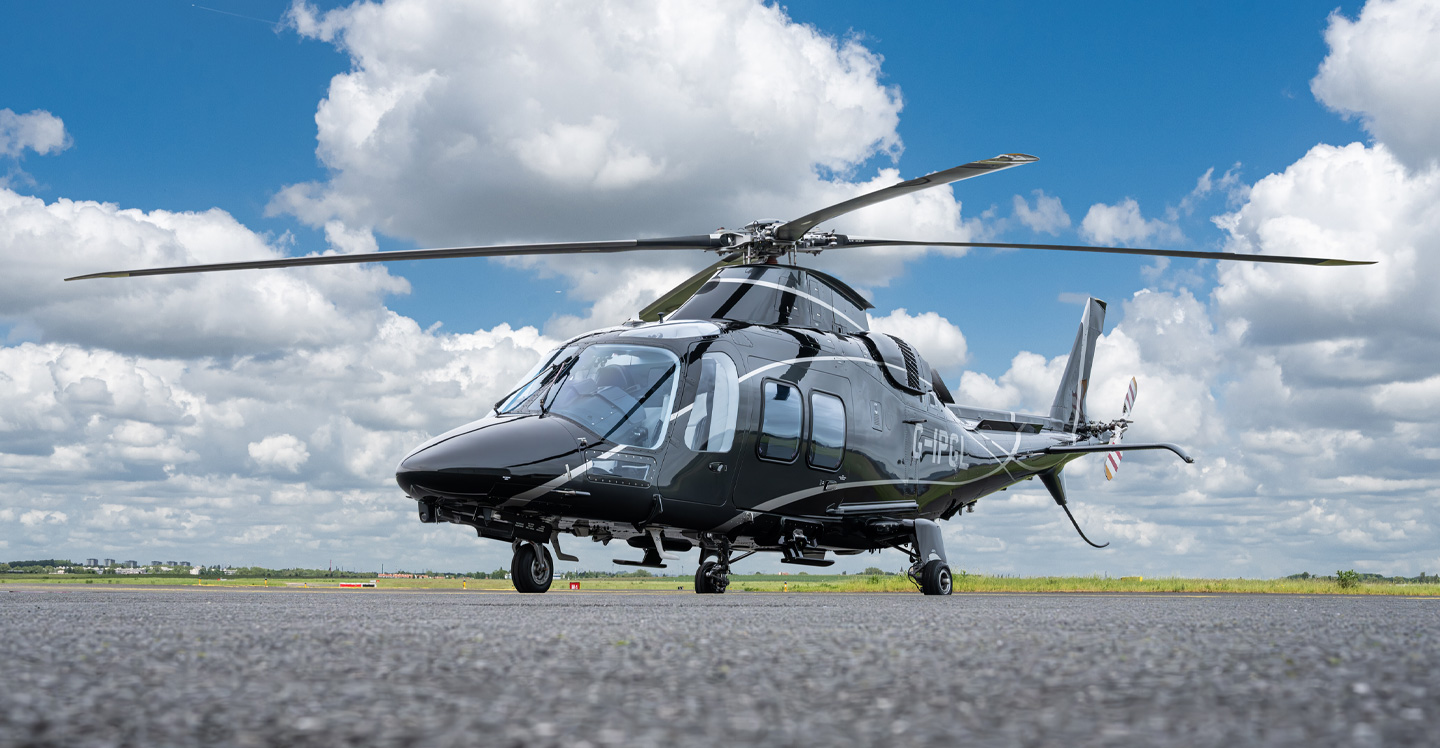

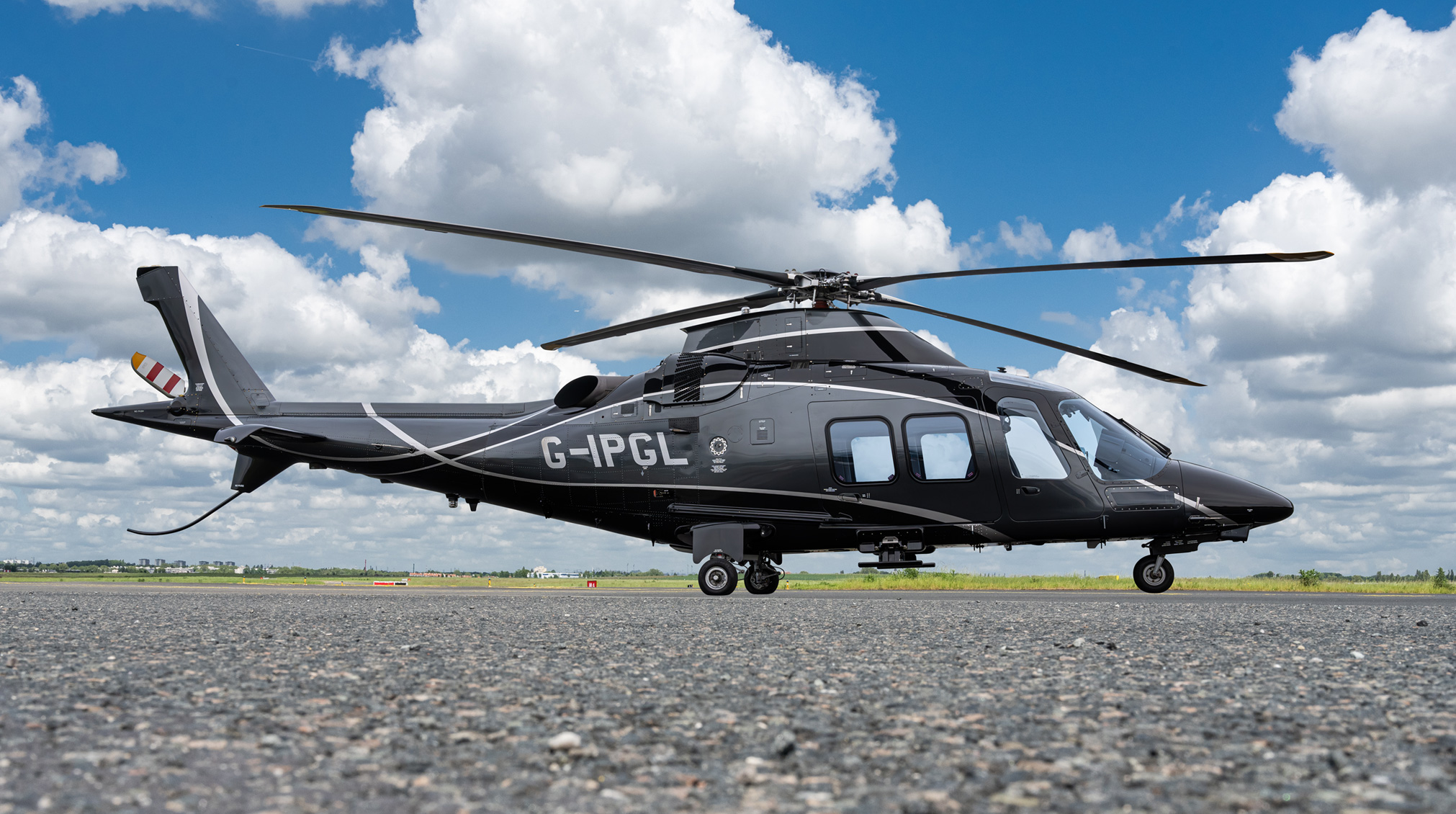

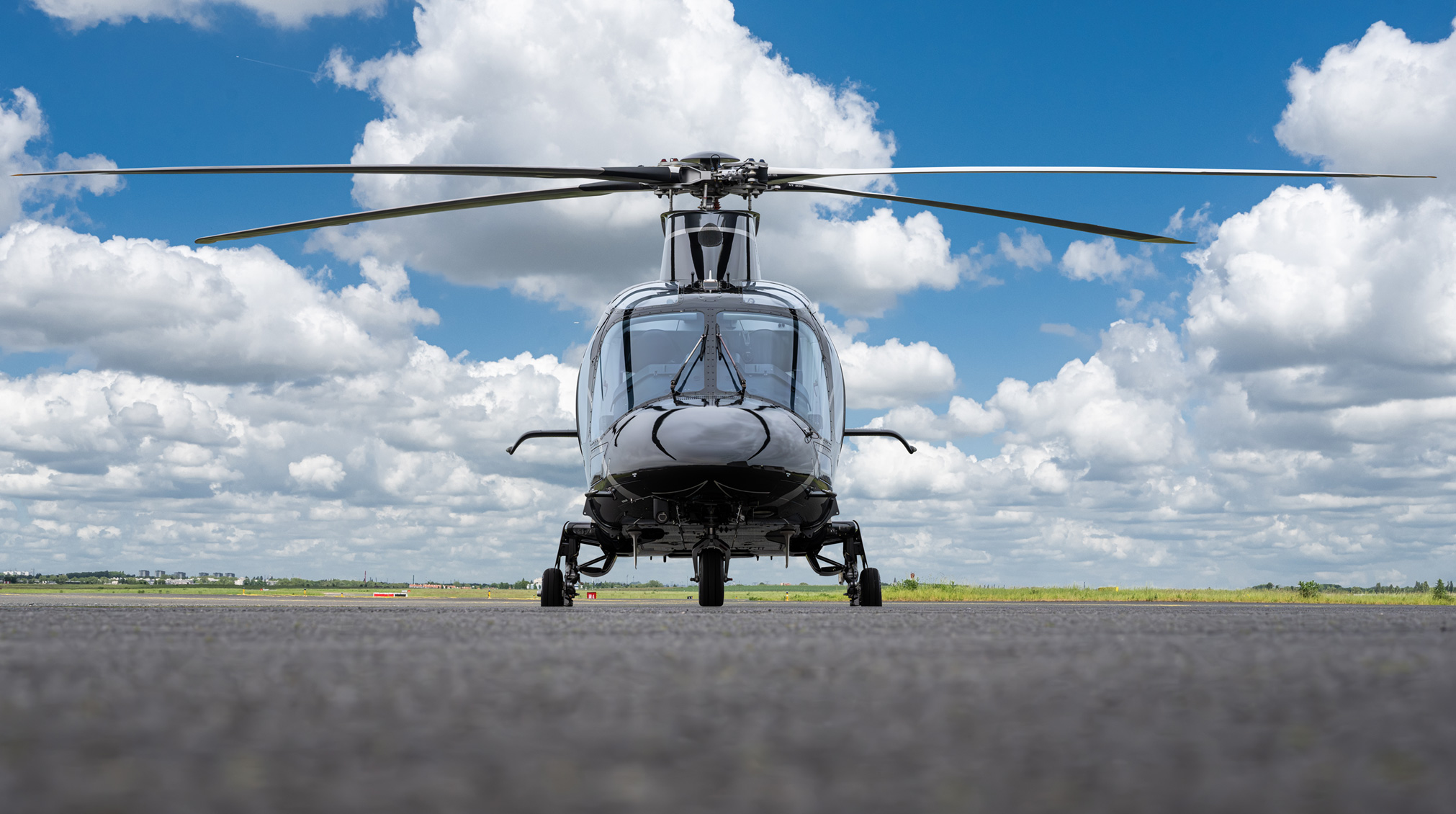

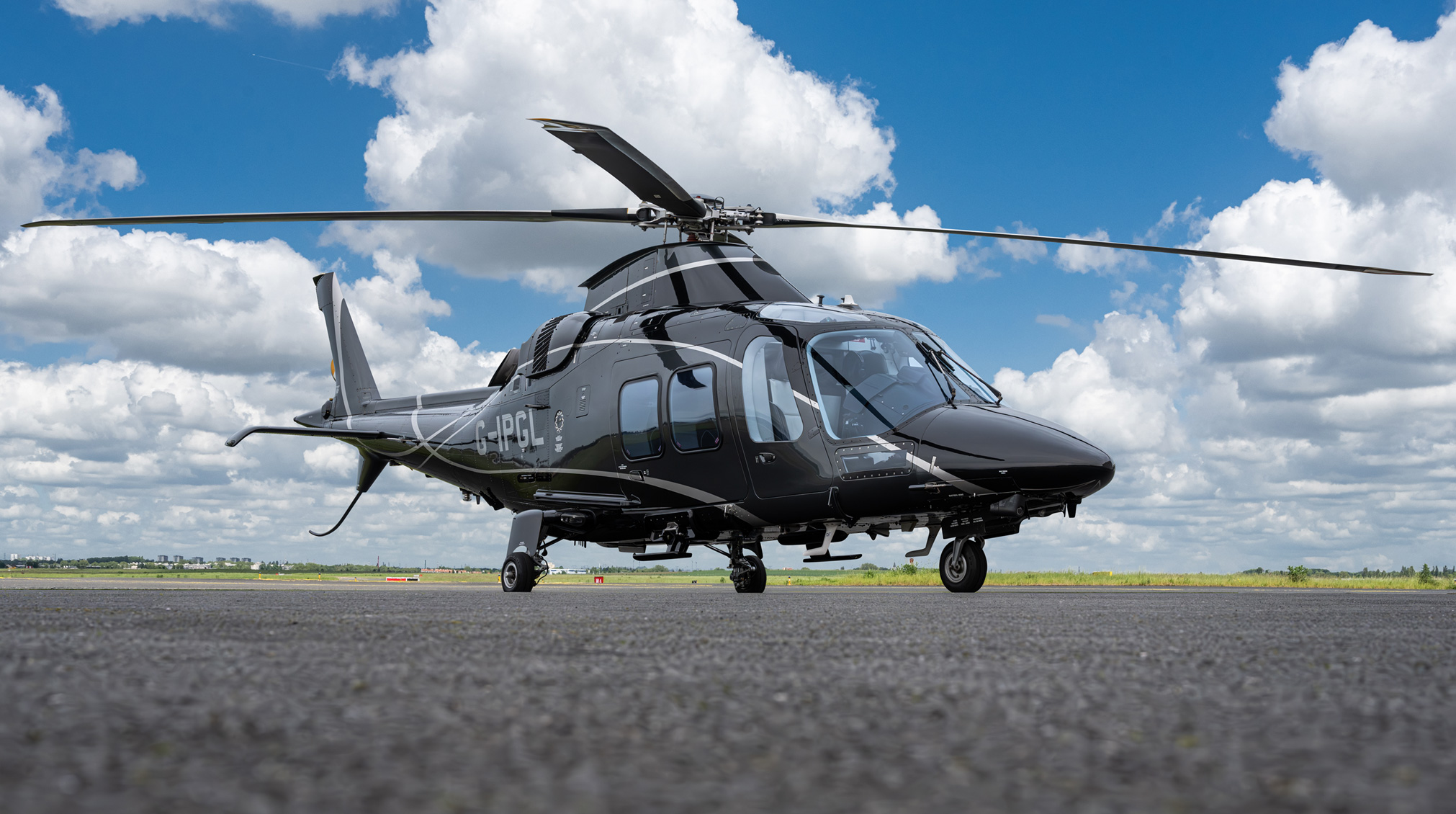

• Finished in black and grey with silver trim

LOOSE EQUIPMENT

• Blade tiedowns x 4
• Pitot covers
• Exhaust blanks
• Engine air intake covers
