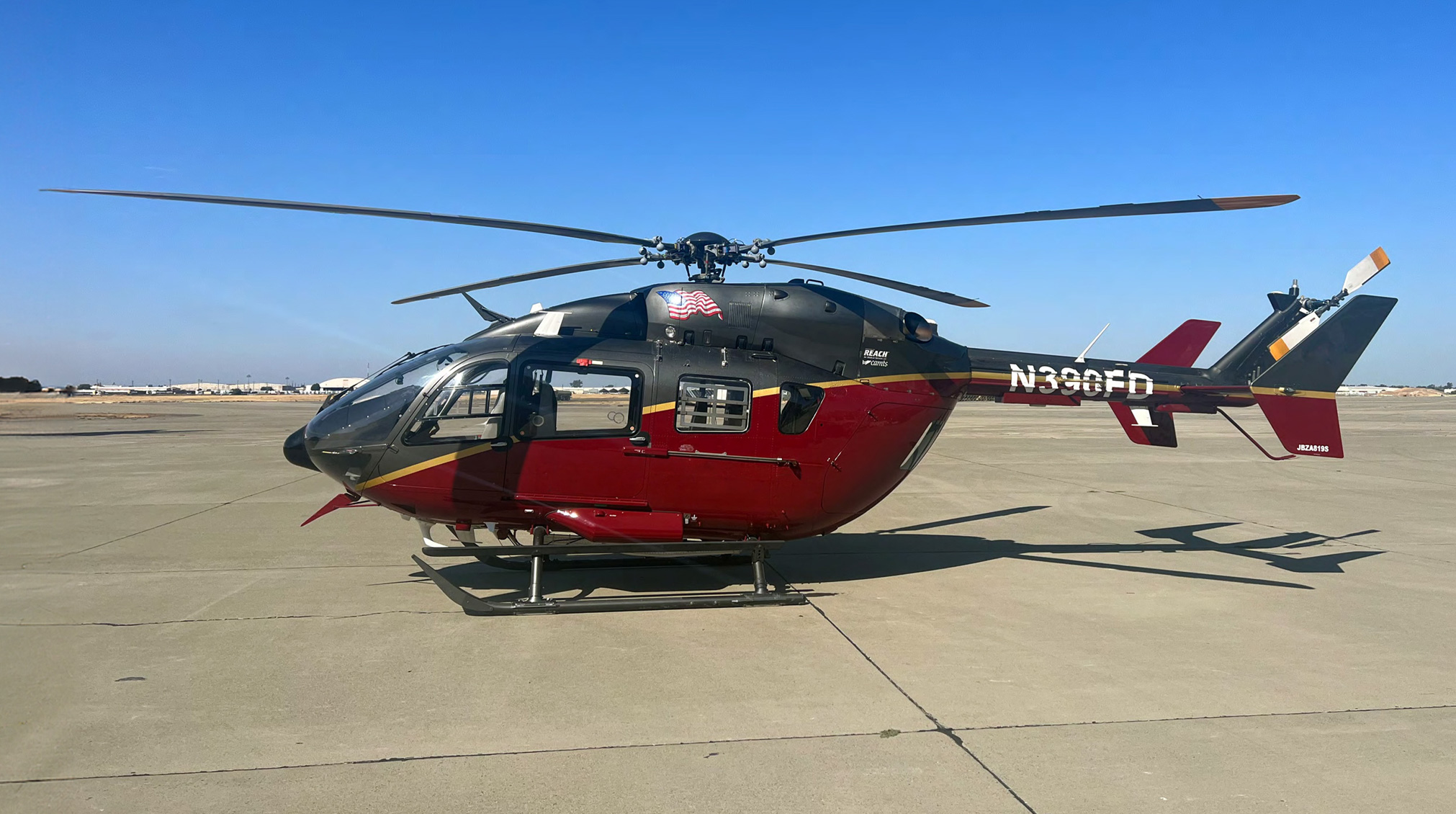

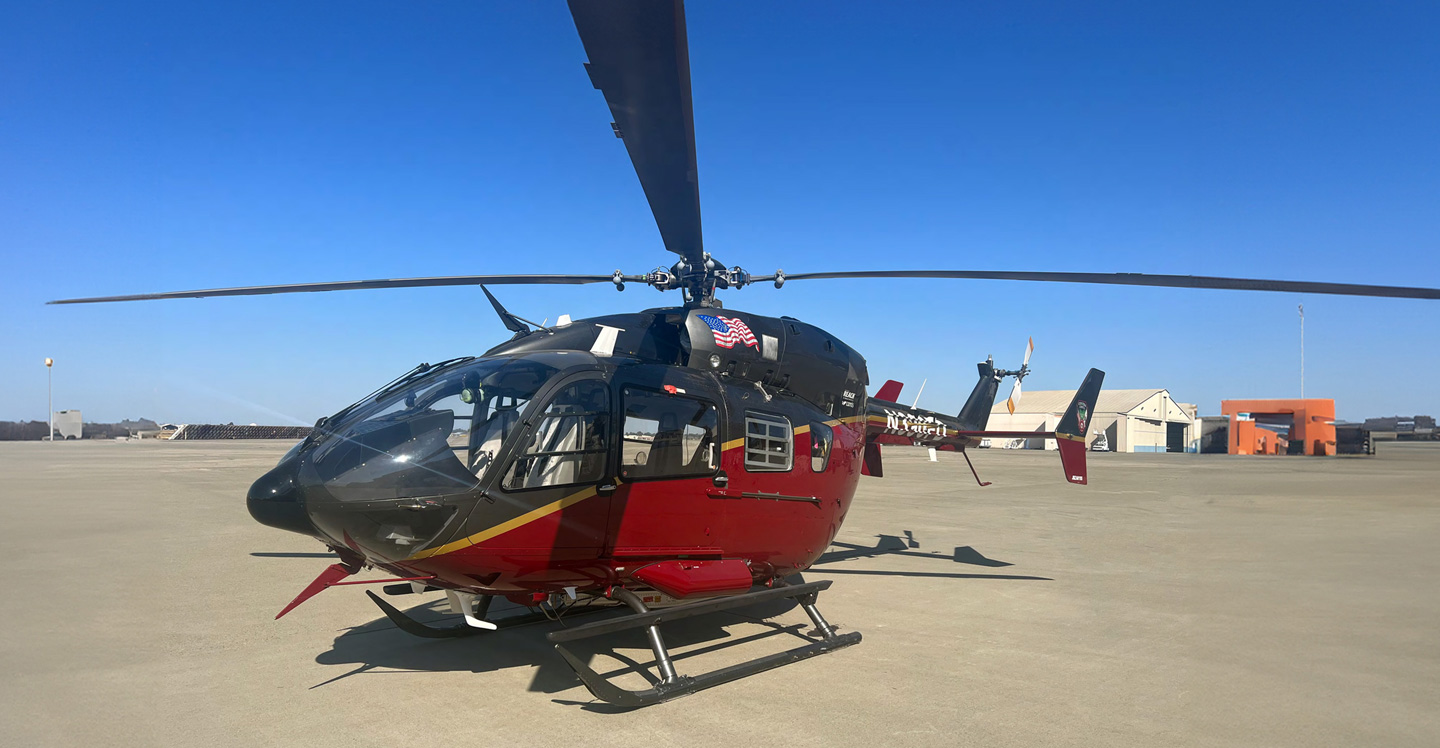

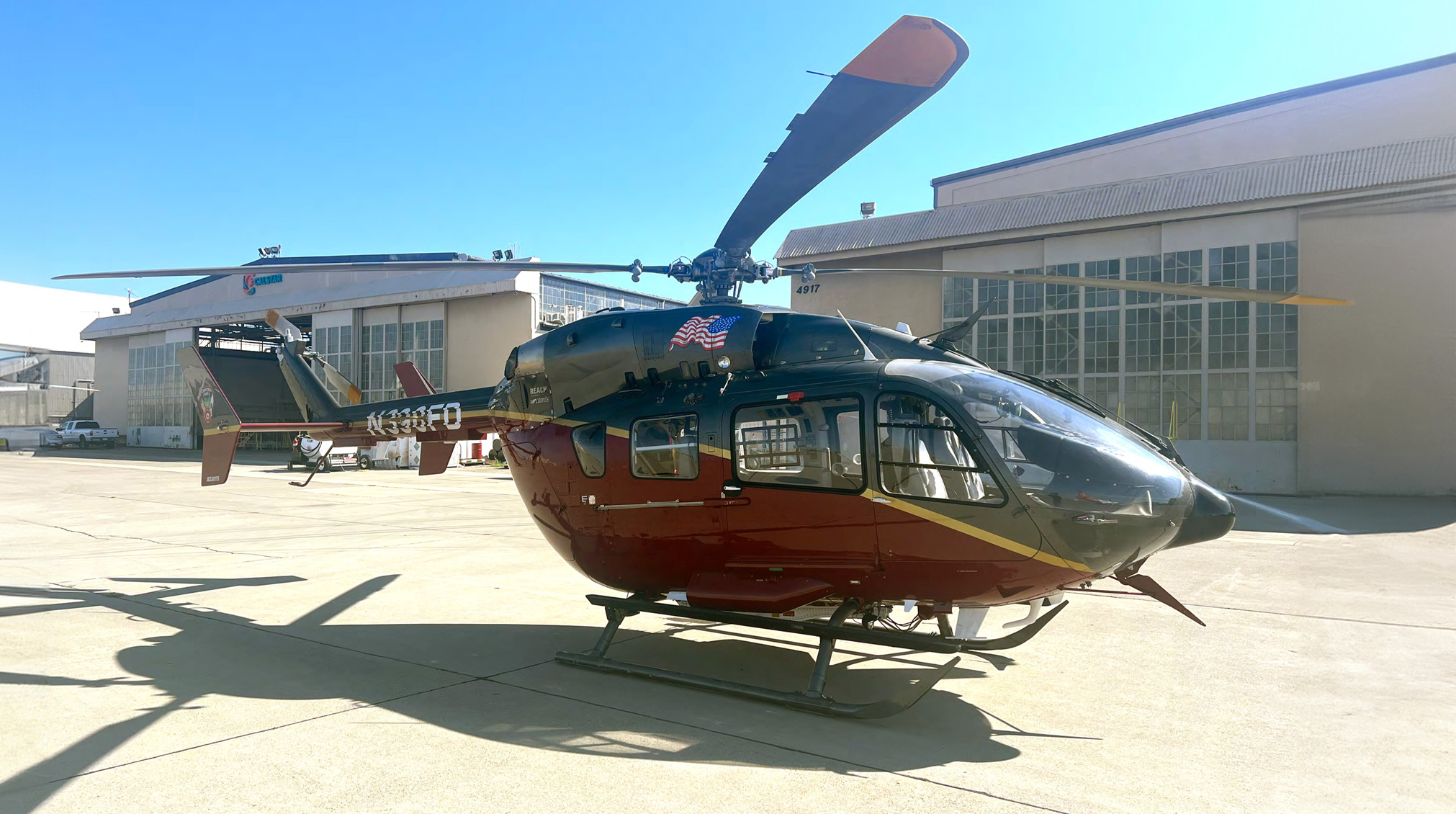

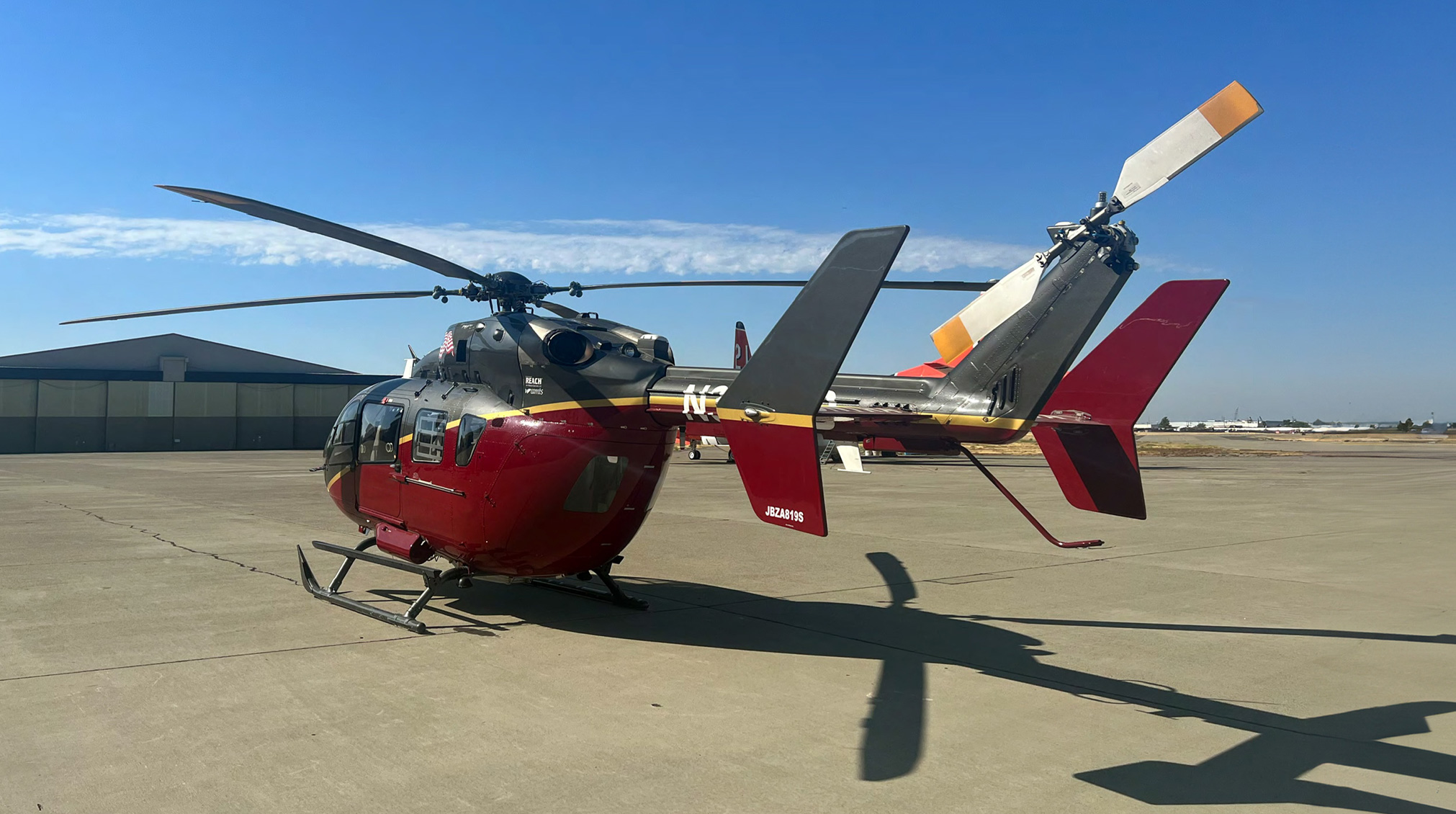

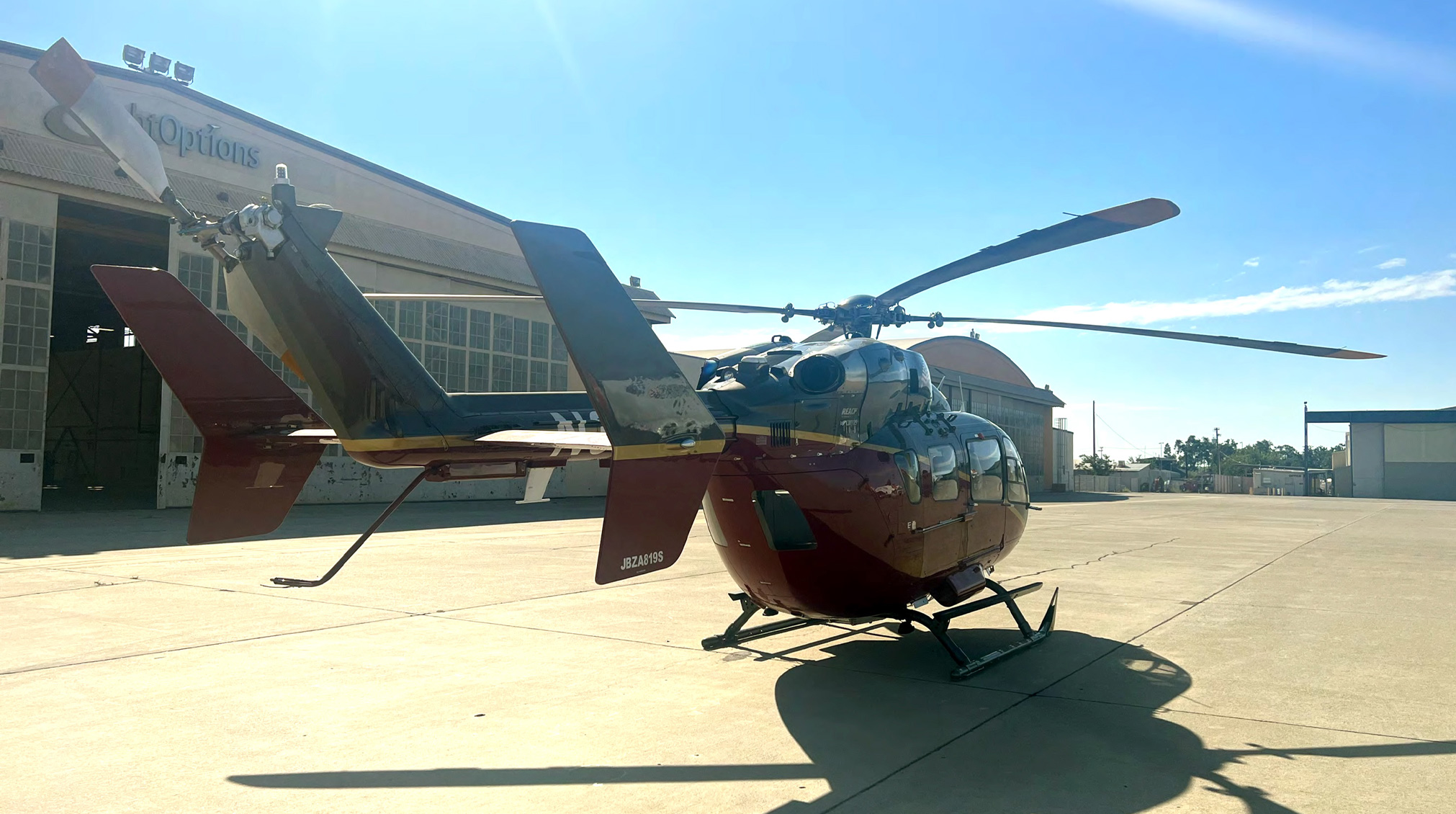

2005 Airbus EC-145C2

Details

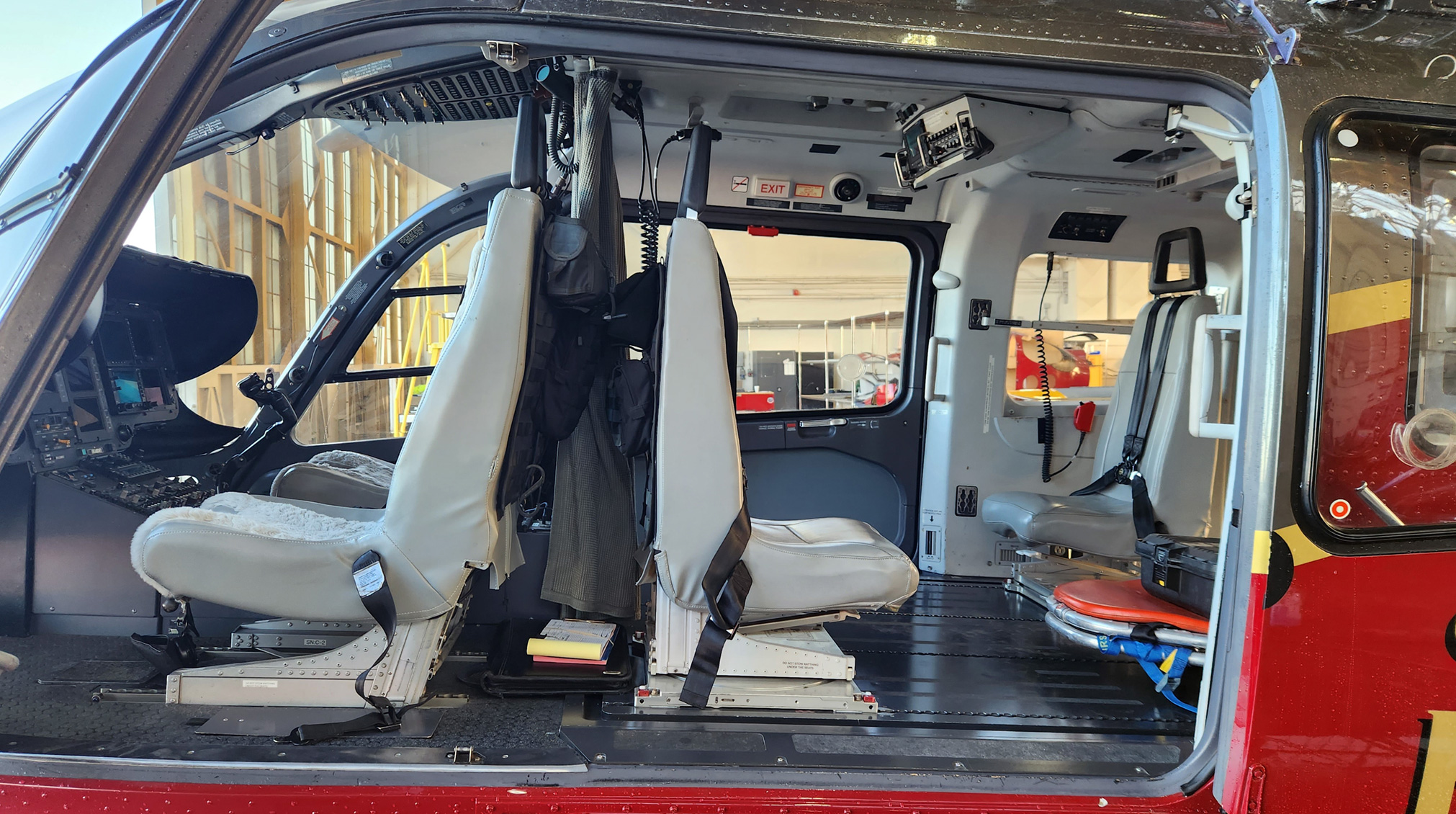

INTERIOR

• Metro EMS Interior Kit
• 2 Passenger with Stretcher Base

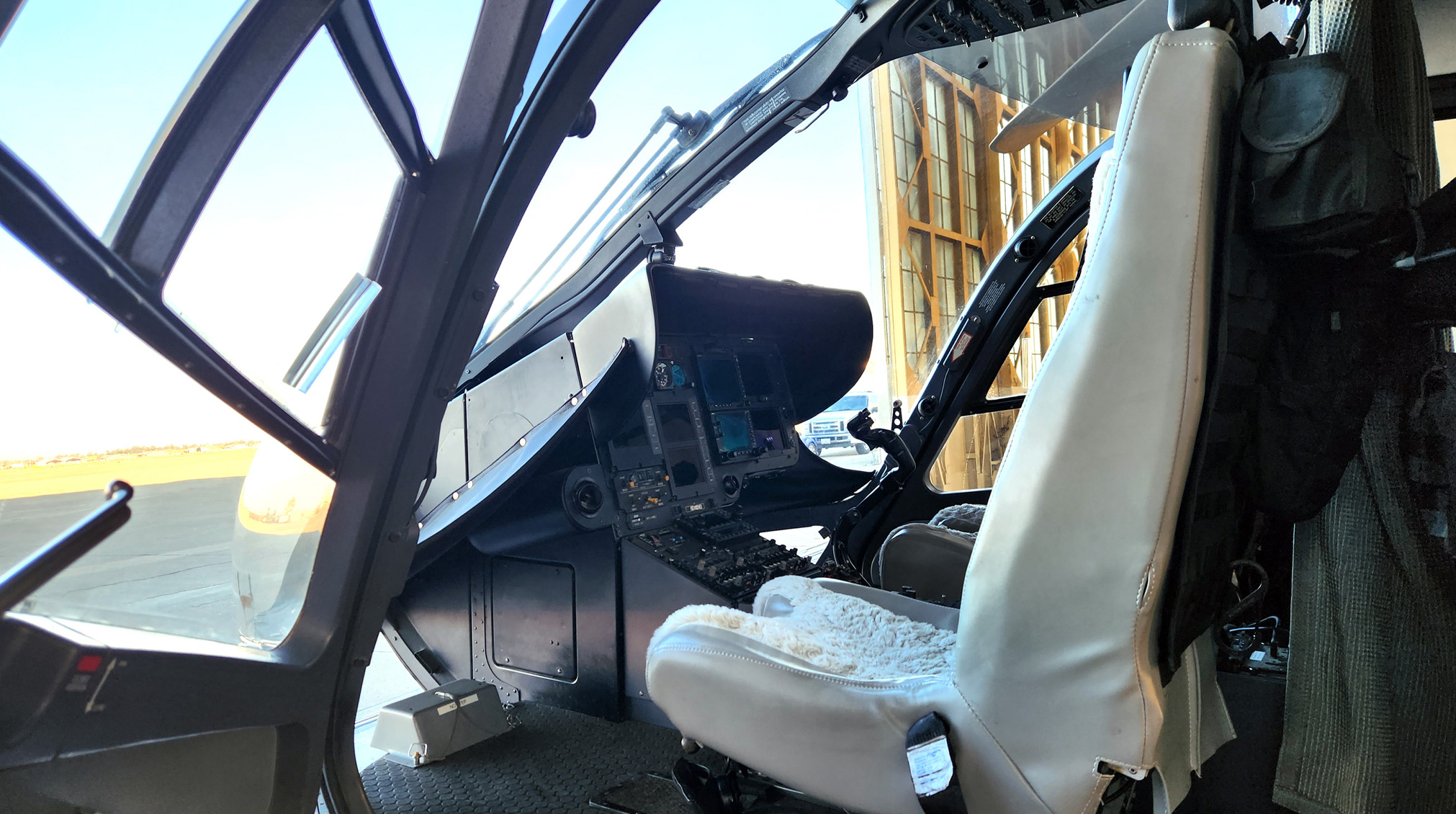

• 2 Pilot Seats

EXTERIOR

• Fixed Cargo Hook and Hoist Provisions
• WX Radar
• Fixed Step
• Red, Black, Gold Paint

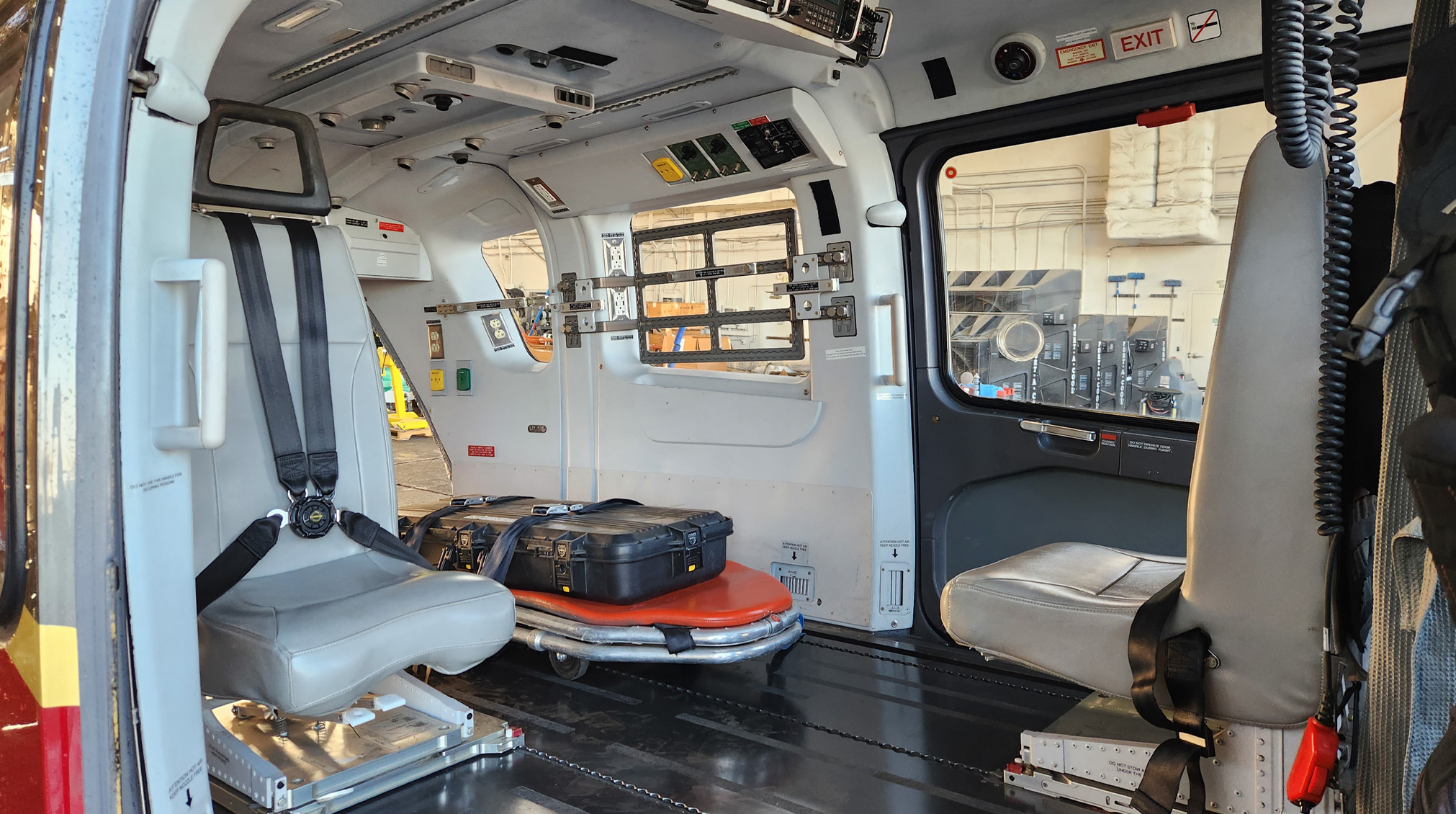

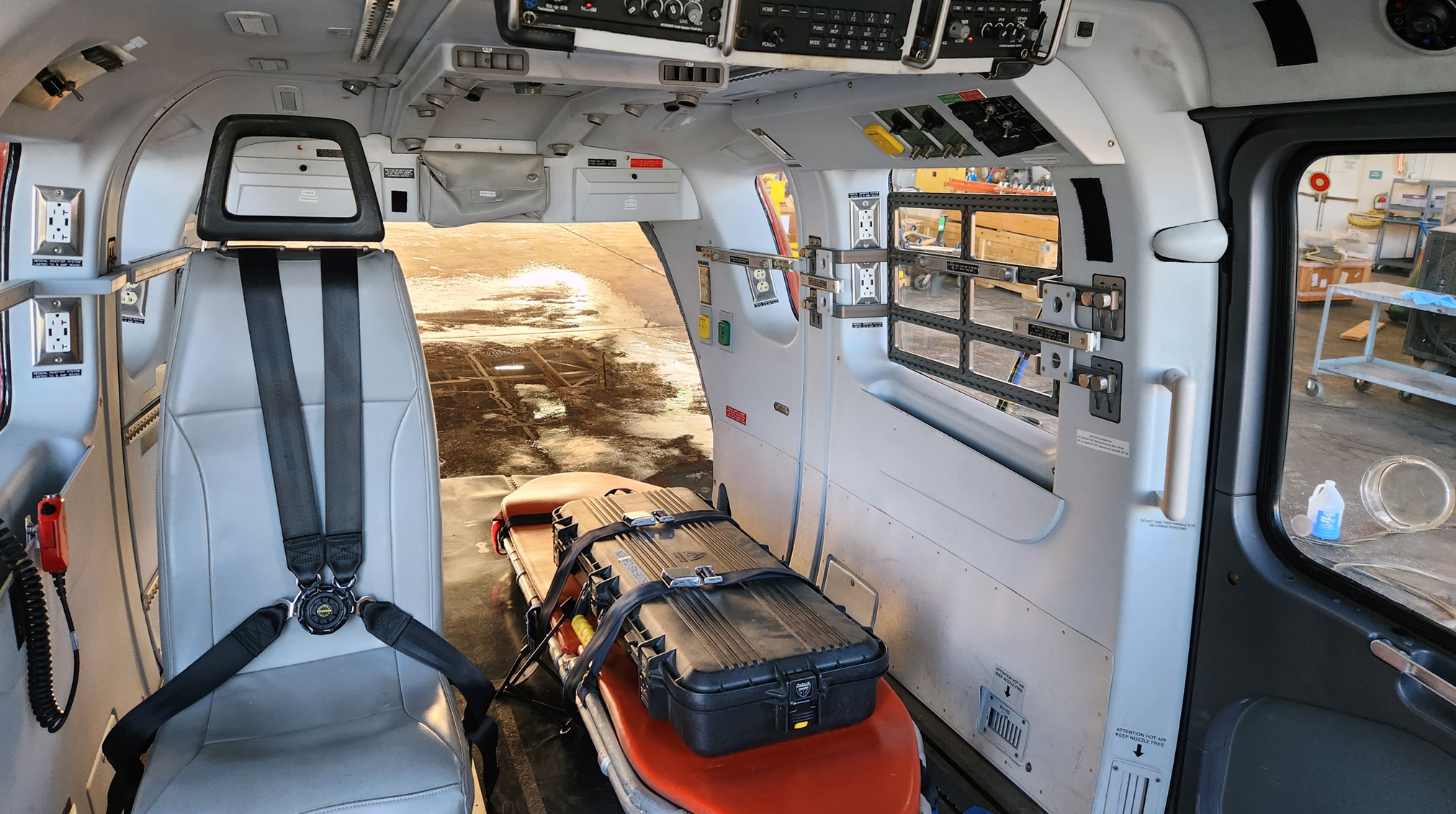

EMS INTERIOR: METRO AVIATION EMS SYSTEM 145M-100, STC SR09403RC

• Electrical System
• Floor Pallet With Seats (3EA) (Swivel)

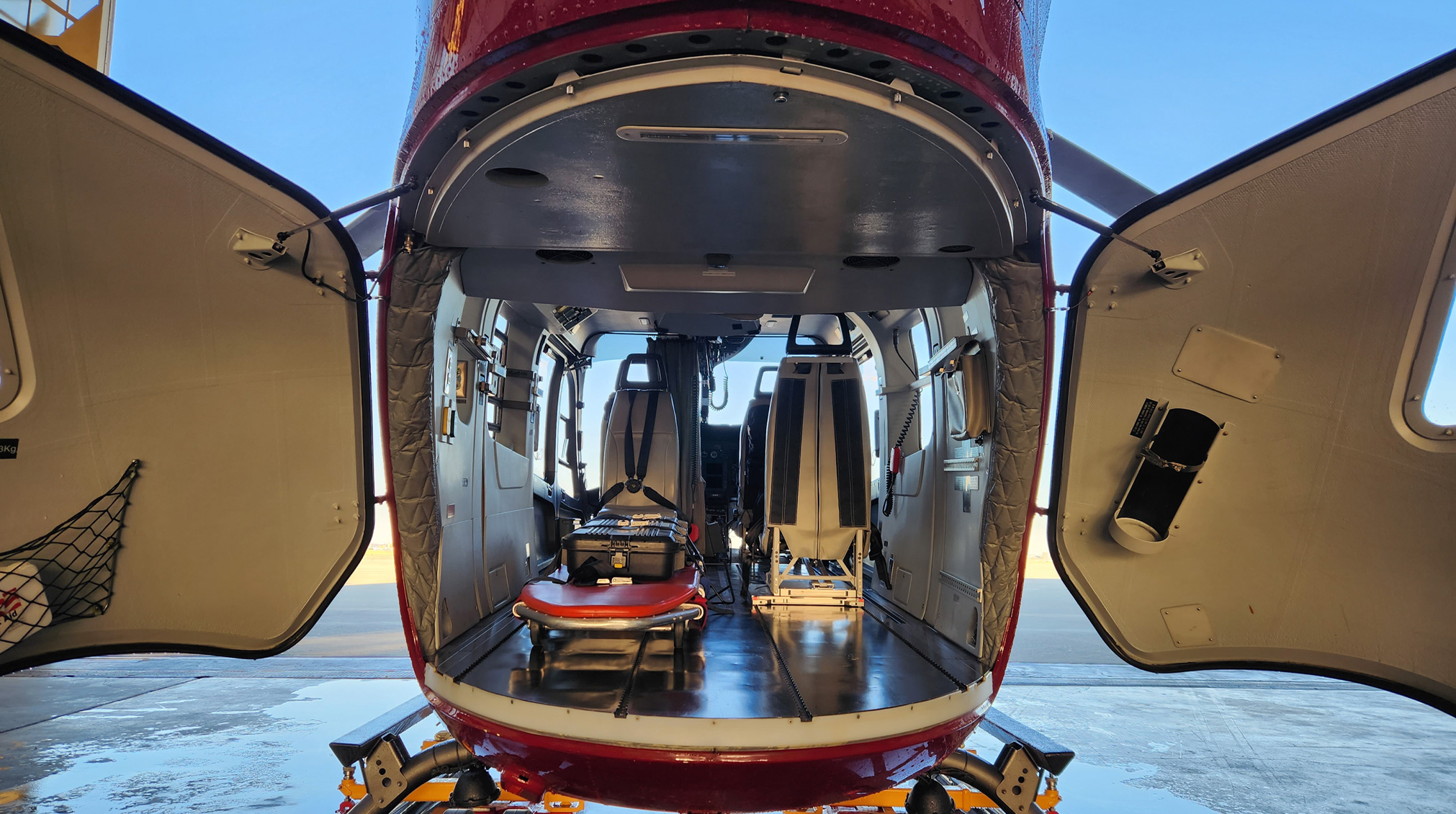

• Litter System
• Medical Comm Panel
• Medical Equipment Rack
• Oxygen System
• Oxygen System, Dual
• Medical Air Pump
• Medical Slant Panel
• Secondary IV Rail
• Primary IV Rail
• Medical Inverter

OPTIONAL EQUIPMENT METRO AVIATION 145-OPT STC SR09405RC

• Junction Box
• Window Bar Mount - L/H & R/H-2 Installed
• Accessory Bar Mount (2ea)
• Portable Oxygen Mount
• Cabin Lighting
• AFT Cargo Lighting
• Side Flood Lights
• Tail Flood Lights
• Auxiliary Landing Lights
• Super Night Scanner
• Antenna Mount
• Pouch Install
• Recessed Fairfield Bar
• Fairfield Accessory Bar -8
• Fairfield Accessory Bar -10

OTHER INSTALLED EQUIPMENT

• Wire Strike Kit
• Tail Boom Ballast Kit
• NVIS Supplemental Lighting System (ASU)
• Pulse Light
• Inlet Barrier Filter System (BMC)
• Offset Streacher Base (145M-3003)
• Whelen LED Anit Collision Light (01-0770905-02)
• AFT Wall Bar Mount (145M-AFT- Wall Bar Mount)
• Cabin Lighting (145M- Cabin Lights)
• R134A Air Conditioning (117MM-100-2)
• Lead Acid Battery (Concorde 380E/44)
• L/H & R/H Side Wall Mount (300LBS MAX)
• Supplemental Lighting System
• Upper Cable Cutter Assembly
• Lower Cable Cutter Assembly
• Wiper Post Deflector
• Skid Gear Deflector
• Cargo Hook Mirror (Fixed Provisions)
• NVG Black Out Curtain
• Four Rescue Hoist Assy, PN 44301-10-7, available for purchase

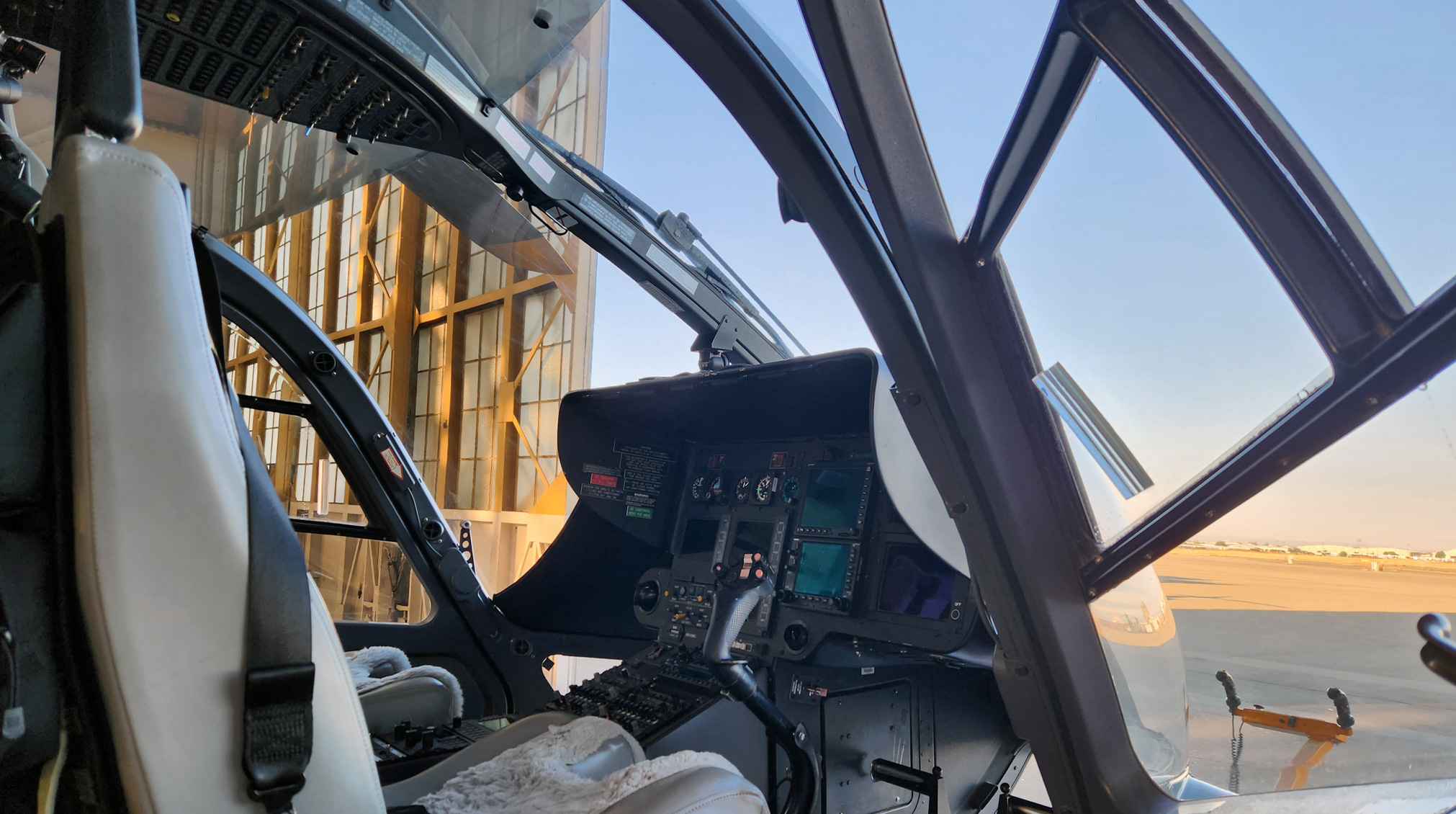

SPIFR AVIONICS EQUIPMENT

• 3-Axis Autopilot
• Garmin GNS-430W GPS/NAV/COM
• Mid Continent Nav Indicator
• Garmin GNS-530W GPS/NAV/COM
• Comant COM/GPS Antenna
• Comant COM Antenna
• Dorne & Margolin Nav Antenna
• Comant Splitter
• Chelton DM-441B DME Transceiver
• Comant DME Antenna
• Garmin GTX-330 #2 Transponder
• Comant Transponder Antenna
• Honeywell KR-21 Marker Beacon Receiver
• Comant Marker Antenna
• Honeywell KA-33 Cooling Fan
• Honeywell KRA-405B Radio Altimeter, RT
• Sensor Radio Altimeter Antenna
• Technisonic Pilot Audio Panel (A711)
• Technisonic Co-Pilot Audio Panel (A711)
• NAT Dim Test
• Garmin GMX-200 MFD Display
• Avidyne Transponder Coupler
• Sensor Traffic Antenna (Top)
• Sensor Traffic Antenna (Bottom)
• Honeywell MK-XXI EGPWS Processor
• Mid Continent Terrain Annunciator
• Garmin GDL-69H SMX
• Comant XM Sat/GPS Antenna
• NAT Audio Mixer
• Technisonic Medical Audio Panel (A711)
• NAT Audio Isolation Control
• Technisonic TDFM-9000 FM Transceiver
• Technisonic RC-9000 Aft FM Control
• Comant VHF/800 FM Antenna
• Comant UHF FM Antenna
• Comant VHF/800 FM Antenna
• ENM Flight Timer
• Avalex Digital Recorder
• Marshall Electric Lipstick Camera
• LoneStar 12 VDC Supply
• Artex C406-NHM ELT Transmitter
• Artex ELT Switch
• Artex ELT Antenna
• KGS Medical Inverter
• Outerlink Dialer Control Panel
• Outerlink Data Comm Processor
• Outerlink IRIS Terminal
• Outerlink Camera
• Outerlink Area Mic
• Antcom GPS/Iridium Antenna
• L3 Stormscope Processor (WX500)
• L3 Stormscope Antenna (NX-163)
• Davton Pilot Clock
• Avidyne Traffic Processor (TAS-605)
